The following work has engaged my utmost application for some years. Several performances on the same subject have already appeared; as Sir H. Manwaring’s Seaman’s Dictionary; Boteler’s Sea Dialogues; Guillet’s Gentleman’s Dictionary, and Blanckley’s Naval Expositor, &c. Far from exhibiting an enlarged and comprehensive view of naval affairs, these productions are extremely imperfect, according to the very circumscribed plan which their authors have adopted. There are besides, the Dictionaire de Marine of M. Aubin, published in Holland; and that of M. Saverien, published in France. These are indeed voluminous, but very deficient in the most necessary articles. Besides a circumstantial detail of the local oeconomy of different marine departments, they are swelled out with astronomy, navigation, hydrography, natural history, &c. all of which are abundantly better treated in other compositions. Of the machinery of a ship; the disposition of the rigging on her masts and yards; and the comparative force of her different mechanical powers, their accounts however are often vague, perplexed, and unin-

telligible.

      I acknowledge with great pleasure the advantages I have derived in the prosecution of this work, from several authors of distinguished reputation: in reality however none of those above-mentioned are of the number. In that part which is dedicated to the theory and art of ship-building, I owe considerable obligations to the ingenious M. Du Hamel. The principal pieces used in the construction of a ship, together with their combination and disposition, are copiously and accurately described in his Elements of Naval Architecture: and his general account of the art itself is perspicuous and comprehensive. Many of his explanations I have therefore implicitly adopted.

      In treating of the artillery, I have occasionally consulted Le Blond, Muller, and Robins, besides selecting some valuable materials from the manuscripts of officers of long experience and established reputation in that service. Whatever relates to the rigging, sails, machinery, and movements of a ship; or to the practice of naval war, is generally drawn from my own observations; unless where the author is quoted.

      As there are abundance of books professedly written on astronomy, and the theory of navigation, I have totally omitted the terms of the former, as foreign to my plan; and slightly passed over the latter: because no reader could acquire a sufficient idea of those sciences from so partial a description. Many of the least important parts of a ship, as well as of her rigging, are very generally defined. To explain the track of every particular rope, through its different channels, would be equally useless and unintelligible to a land reader: to mariners it were superfluous: and even the youths who are trained to the sea, would reap little advantage from it; because their situation affords them much better opportunities of making these minute discoveries.

      I have in general endeavoured to give the etymology of the most material expressions, unless when their evident analogy to common words rendered this unnecessary. Many reasons may be alledged for introducing the French sea-terms and phrases; particularly that obvious one, of understanding their pilots, when we may have occasion for their assistance. Wherever it was found necessary to explain one technical term by another, the latter is usually printed in italics the first time it is mentioned; so that the reader may refer to it for a further explanation.

      As the plates of this publication were intended to illustrate the various objects to which they refer, they are little ornamented; but have in general the recommenda-

tion of simplicity and geometrical truth. In this part I have been particularly favoured with many original drawings, which are usually considered amongst the inaccessible arcana of ship-building. They are much more numerous, useful, and correct, than what has hitherto appeared in any work of the kind. In fine, I have endeavoured, to the best of my judgment, to retrench the superfluities, and supply the deficiences of former writers on the same subject, as well as to digest and methodise whatever appeared loose or inaccurate therein.

      This undertaking was first suggested to me by my worthy and ingenious friend George Lewis Scott, Esq; who considered it as a work of extensive utility, Indeed, in a country whose principal sources of strength are derived from the superiority of her marine, it is evidently wanted. I have the pleasure also to know that Sir Edward Hawke, and several officers of respectable abilities in our navy, are of the same opinion. To this may be added, what the celebrated M. Du Hamel lately observed, in a letter to me, s. I mention this expressly, because some sea-officers have considered the work unnecessary. It is however submitted, with all possible deference, to superior judges; to men of science and letters, who know the difficulty of explaining the parts of a mechanical system, when the readers are unacquainted with the subject.

His Royal Highness the Duke of Gloucester.

      His Royal Highness the Duke of Cumberland.

      Right Hon. Lords Commissioners of the Admiralty, as a Board.

A.

ABACK, coeffé, the situation of the sails when their surfaces are flatted against the masts by the force of the wind.

      The sails are said to be taken aback, when they are brought into this situation, either by a sudden change of the wind, or by an alteration in the ship’s course. They are laid aback, to effect an immediate retreat, without turning to the right or left; or, in the sea-phrase, to give the ship stern-way, in order to avoid some danger discovered before her in a narrow channel; or when she has advanced beyond her station in the line of battle, or otherwise.

      The sails are placed in this position by slackening their lee-braces, and hauling in the weather ones; so that the whole effort of the wind is exerted on the fore-part of their surface, which readily pushes the ship astern, unless she is restrained by some counter-acting force. See Backing, and Bracing.

      It is also usual to spread some sail aback near the stern, as the mizen-top-sail, when a ship rides with a single anchor in a road, in order to prevent her from approaching it so as to entangle the flukes of it with her slackened cable, and thereby loosen it from the ground. See Anchor.

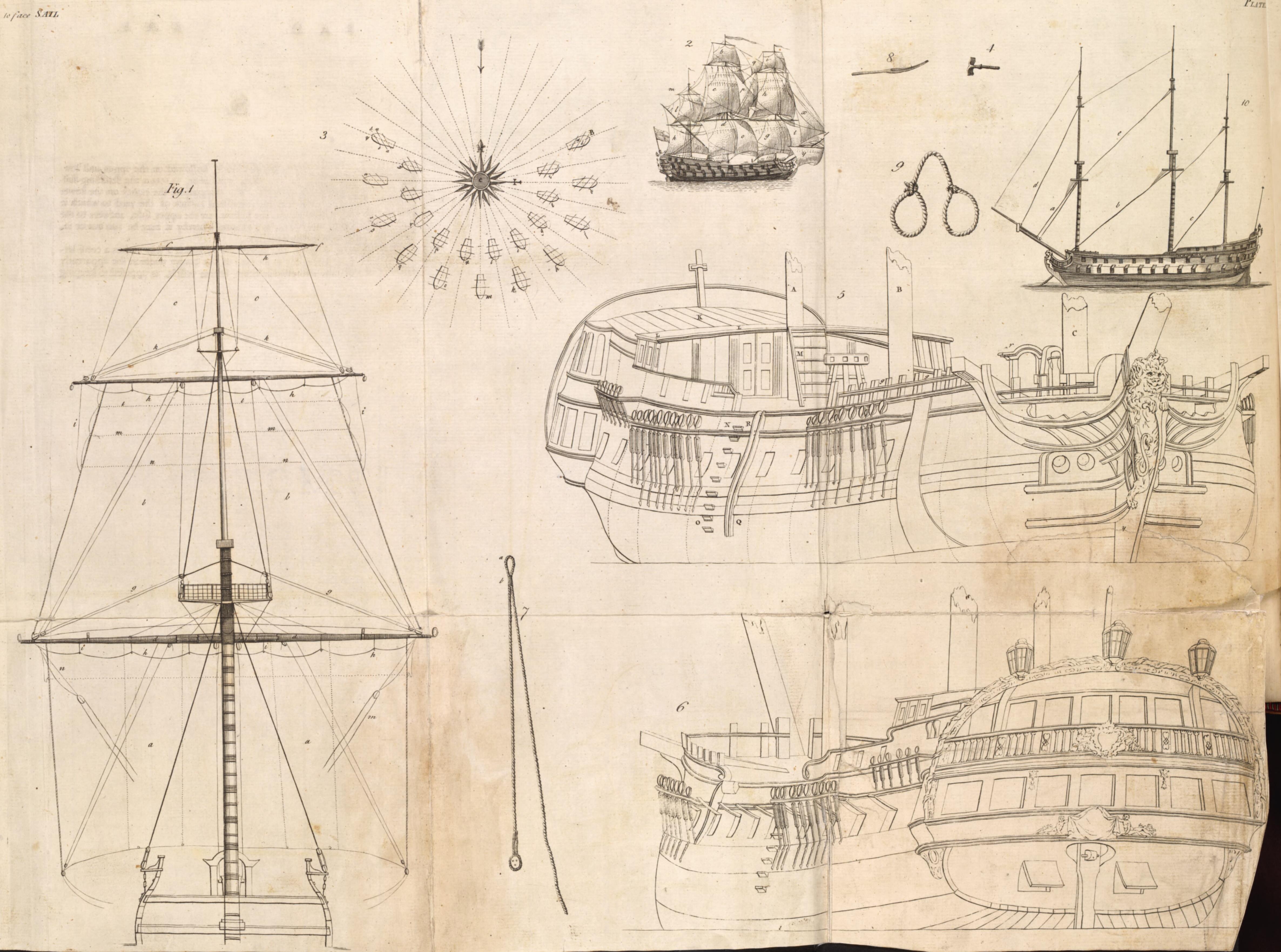

      Fig. 1. plate III. discovers the plan of a ship, a b, with her main-top-sail, c d, aback; in which the curved dotted line expresses the cavity of it, as blown back by the wind on each side of the mast. The fore-top-sail, which is full, is exhibited by the line e f. Fig. 3. represents a perspective view of the ship in the same situation; and the dart shews the direction of the wind upon both.

      Lay all flat Aback, the order to arrange all the sails in this situation.

      ABAFT, arriere, (abaftan, Sax. behind) the hinder part of a ship, or all those parts both within and without, which lie towards the stern, in opposition to afore; which see.

      Abaft, arriere de, is also used as a preposition, and signifies further aft, or nearer the stern; as, the barricade stands abaft the main mast, i. e. behind it, or nearer the stern.

      ABOARD (à bord, Fr. abordo, Ital.) the inside of a ship: hence any person who enters a ship is said to go aboard: but when an enemy enters in the time of battle, he is said to board. A phrase which always implies hostility. See the article Boarding.

      To fall Aboard of, aborder, to strike or encounter another ship, when, one or both are in motion; to be driven upon a ship by the force of the wind or current.

      Aboard-main-tack! amure la grande voile! the order to draw the main-tack, i. e. the lower corner of the main-sail, down to the chess-tree. See Chess-tree.

      ABOUT, reviré, (abutan, Sax.) the situation of a ship immediately after she has tacked or changed her course by going about, and standing on the other tack. See Tacking.

      About-Ship! adieu-va! the order to the ship’s crew to prepare for tacking.

      ABREAST, par le travers (of breost, Sax.), side by side, or opposite to; a situation in which two or more ships lie, with their sides parallel to each other, and their heads equally advanced.

      This term more particularly regards the line of battle at sea, where, on the different occasions of attack, retreat, or pursuit, the several squadrons, or divisions of a fleet, are obliged to vary their dispositions, and yet maintain a proper regularity by sailing in right or curved lines. When the line is formed abreast, the whole squadron advances uniformly, the ships being equally distant from, and parallel to each other, so that the length of each ship forms a right angle with the extent of the squadron or line abreast. The commander in chief is always stationed in the center, and the second and third in command in the centers of their respective squadrons. See this farther illustrated in the article Line.

      Abreast, within the ship, implies on a line with the beam, or by the side of any object aboard; as, the frigate sprung a leak abreast of the main hatch-way, i. e. on the same line with the main hatch-way, crossing the ship’s length at right angles, in opposition to afore or abaft the hatch-way. See Abaft.

      We discovered a fleet Abreast of Beachy-Head, i. e. off, or directly opposite thereto.

      ACORN, pomme de girouette, a little ornamental piece of wood, fashioned like a cone, and fixed on the uppermost point of the spindle, above the vane, on the mast-head. It is used to keep the vane from being blown off from the spindle in a whirlwind, or when the ship leans much to one side sail. See plate I. fig. 1. where a represents the acorn, b the vane and stock, c the spindle, and d the mast-head.

      ADMIRAL, amiral, an officer of the first rank and command in the fleet, and who is distinguished by a flag displayed at his main-top-mast-head. Also an officer who superintends the naval forces of a nation, and who is authorised to determine in all maritime causes.

      The origin and denomination of this important office, which seems to have been established in most countries that border on the sea, have

given rise to a great variety of opinions. Some have borrowed them from the Greek, others from the Arabic, while a third sort, with greater probability, derive both the title and dignity from the Saracens.^* But since no certain conclusions have been deduced from these elaborate researches, and as it rather appears the province of this work to give the reader an idea of the office and duty of an admiral at sea, than to furnish an historical or chronological detail of the rank and power with which admirals have been invested in different nations, we shall contentedly resign this task to the ingenious lexicographers who have so repeatedly entertained us with such critical investigations.

      The Admiral, or commander in chief of a fleet, being frequently invested with a great charge, on which the fate of a kingdom may depend, ought certainly to be possessed of abilities equal to so important a station and so extensive a command. His fleet is unavoidably exposed to a variety of perplexing situations in a precarious element. A train of dangerous incidents necessarily arise from those situations. The health, order, and discipline of his people, are not less the objects of his consideration, than the condition and qualities of his ships. A sudden change of climate, a rank and infectious air, a scarcity, or unwholsomness of provisions, may be as pernicious to the former, as tempestuous weather or dangerous navigation to the latter. A lee-shore, an injudicious engagement with an enemy greatly superior, may be equally fatal to both. He ought to have sufficient experience to anticipate all the probable events that may happen to his fleet during an expedition or cruise, and, by consequence, to provide against them. His skill should be able to counter-act the various disasters which his fleet may suffer from different causes. His vigilance and presence of mind are necessary to seize every favourable opportunity that his situation may offer to prosecute his principal design; to extricate himself from any difficulty or distress; to check unfortunate events in the beginning, and retard the progress of any great calamity. He should be endued with resolution and fortitude to animate his officers by the force of example, and promote a sense of emulation in those who are under his command, as well to improve any advantage, as to frustrate or defeat the efforts of his ill fortune.

      The most essential part of his duty, however, appears to be military conduct. As soon as the fleet under his command puts to sea, he is to form it into the proper order of battle, called the Line. In this arrangement he is to make a judicious distribution of strength from the van to the rear, throwing the principal force into the center, to resist the impression of the enemy’s fleet; which might otherwise, at some favourable opportunity, break through his line, and throw the van and rear into confusion.

      A competent knowledge of the seas, weather, and reigning winds, of the coast or region where he is stationed, is also requisite, as it will greatly facilitate his plans on the enemy. It will enable him to avoid being improperly embayed, where he might be surprised in a disad-

vantageous situation; and to judge whether it will be most expedient to attack his adversary, or lie prepared to receive his assault. When his fleet is forced by stress of weather or otherwise to take shelter in a road or bay, it will likewise suggest the necessary conduct of keeping a sufficient number of cruisers at sea, to bring him early intelligence, that they may be ready to cut or slip the cables when they are too much hurried to weigh their anchors.

      As the forming a complete, strong, and uniform line is a very material article in naval war, the admiral ought frequently to arrange the fleet under his command into this order, that the inferior officers may observe to bring their ships, with greater dexterity and alertness, into their several stations, and maintain the regularity of the line when they tack, veer, or sail abreast. See Line.

      When the admiral intends a descent on an enemy’s coast, or other attack which may be attended with complicated and unforeseen incidents, his orders should be delivered or drawn up with the greatest accuracy and precision: they should be simple, perspicuous, direct, and comprehensive; they should collect a number of objects into one point of view, and, foreseeing the effects of success or defeat, appoint the proper measures to be adopted in consequence thereof. History and experience confirm the necessity of this observation, and present us with a variety of disasters that have happened on such occasions, merely by a deficiency in this material article. In the commanding officer, inattention, barrenness of expedient, or a circumscribed view of the necessary effects of his enterprize, may be equally pernicious. And general orders ought to be utterly free from pedantry and perplexity, which always betray a false taste and confused imagination, besides the probability of producing many fatal consequences.

      When an admiral conquers in battle, he should endeavour to improve his victory, by pushing the advantages he has acquired as far as prudence directs; a conduct which merits his attention as much as any in the action! When he is defeated, he ought to embrace every opportunity of saving as many of his ships as possible, and endeavour principally to assist those which are disabled. In short, it is his duty to avail himself of every practicable expedient rather than sink under his misfortune, and suffer himself to become an easy prey to the enemy.

      He should be sufficiently acquainted with civil law, to judge with propriety of the proceedings of courts-martial, and to correct the errors, and restrain the abuses which may happen therein by mistake, or ignorance, or inattention.

      As secret treaties, propositions, or schemes of the enemy, may occasionally be submitted to his inspection, or fall into his possession by capture; and which it might be improper to discover to any person near him, he ought to have a competent knowledge of the modern languages, or at least, those of the countries against whom his military operations are directed, to be able to comprehend with facility the full scope and purport of such papers.

      He ought to be well versed in geometry, to order proper and correct surveys of unknown coasts, roads, or harbours to be made, and to judge of their accuracy, and detect their errors. To ascertain the situation and longitude of different places, he should be also sufficiently skilled in astronomy, and the method of taking observations, which indeed is essentially necessary to the profession of a sea-officer, although too much neglected.

      By his orders the admiral is likewise to assist at all councils of war that relate to naval affairs: to visit, as often as convenient, the other ships of his squadron: to enquire particularly into their condition, and observe the men mustered, taking care that no supernumeraries are borne on the books. He is directed to acquaint the secretary of the admiralty of all his proceedings relating to the service, for the information of the lord-high-admiral, or lords commissioners of the admiralty; and to attend him or them, on his return home, with an account of his voyage or expedition, and to transmit a copy of his journal to their secretary.

      Much more might be observed on this occasion. It appears however by the general outline which we have sketched, that the office and duty of an admiral requires greater skill and more comprehensive abilities than is generally supposed necessary to the command of a naval armament. And that he ought to be duly qualified, at least in this kingdom, to assist at the councils of his sovereign, and enter into the enlarged system of protecting his country from an invasion by sea, or of meditating a descent on an enemy’s coast; as well as to improve navigation, and open new channels of commerce. For further particulars of his charge, see the articles Engagement, Line, Squadron.

      Admiral of the fleet, the highest officer under the admiralty of Great-Britain: when he embarks on any expedition, he is distinguished by the union flag at the main-top-mast-head.

      Vice-Admiral, vice-Amiral, the officer next in rank and command to admiral; his flag is displayed at the fore-top-mast-head.

      Rear-Admiral, contre-amiral, lieutenant-général des armées navales, the officer next in rank and command to the vice-admiral, and who carries his flag at the mizen-top-mast-head.

      There are at present in England, besides the admiral of the fleet, three admirals of the white squadron, and four of the blue. Three vice-admirals of the red, three of the white, and four of the blue. Four rear-admirals of the red, four of the white, and five of the blue squadron: besides twenty-two rear-admirals that have carried no flag, who are superannuated upon half-pay.

      Vice-Admiral is also a civil officer appointed by the lords-commissioners of the admiralty. There are several of these officers established in different parts of Great-Britain, with judges and marshals under them, for executing jurisdiction within their respective districts. Their decisions, however, are not final, an appeal lying to the court of admiralty in London.

      ADMIRALTY, Amirauté, the office of lord-high-admiral, whether discharged by one single person, or by joint commissioners, called Lords of the Admiralty.

      ADVICE-BOAT, pacquet d’ avis, a small vessel employed to carry expresses or orders with all possible dispatch.

      ADRIFT (from a and drift, Sax.) the state of a ship or vessel broke loose from her moorings, and driven without controul at the mercy of the wind, seas, or current, or all of them together.

      AFLOAT, (à flot, Fr.) floating on the surface of the water: a ship is said to be afloat when there is a volume of water under her bottom of sufficient depth to buoy her up from the ground.

      AFORE, avant, (fore, Sax.) all that part of a ship which lies forward, or near the stem.

      Afore, as a preposition, likewise implies further forward, or nearer the prow; as, the manger stands afore the fore-mast, i. e. further forward, or nearer the stem. In both these senses afore is used in contradistinction to abaft. See the article Abaft.

      AFT, arriere, (from æfter, or abaft) behind, or near the stern of the ship; being opposed to fore; as, run out the guns fore and aft! i. e. from one end of the ship to the other; and whence,

      AFTER, de l’arriere, (æfter, Sax.) a phrase applied to any object situated in the hinder-part of the ship; as, the after-hatchway, the after-capstern, the after-sails, &c.

      The After-Sails usually comprehend all those which are extended on the mizen-mast, and on the stays between the mizen and main-masts. They are opposed to the head-sails, which include all those that are spread on the fore-mast and bowsprit; and both by their mutual operation on the opposite ends of the ship, duly balance her when under sail. See the article Trim.

      AGENT-Victualler, avitalleur, an officer stationed at a royal port, to regulate the victualling of the king’s ships, under the directions of the commissioners for victualling the navy. He receives all the provisions from the victualling-office in London, and distributes them to the ships in the harbour. He also receives into his store-houses such as may be returned by ships after the expiration of their voyage, and renders an account thereof to the said commissioners.

      AGROUND, echoué, (from a and ground) the situation of a ship whose bottom, or any part of it, hangs or rests upon the ground, so as to render her immoveable till a greater quantity of water floats her off; or till she is drawn out into the stream, by the application of mechanical powers.

      AHEAD, avant, au devant, (from a and head, Sax.) further onward than the ship, or at any distance before her, lying immediately on that point of the compass to which her stem is directed. It is used in opposition to astern, which expresses the situation of any object behind the ship. See Astern.

      To run Ahead of one’s reckoning, depasser, to sail beyond the place shewn erroneously in the dead-reckoning as the ship’s station.

      Line Ahead. See the article Line.

      A-HULL, à sec; à mats, & à cordes (from a and hull) the situation of a ship when all her sails are furled on account of the violence of the storm, and when having lashed her helm on the lee-side, she lies nearly with her side to the wind and sea, her head being somewhat inclined to the direction of the wind. See this further explained in the article Trying.

      AIM, the direction of a cannon, or other fire-arm, to its object, or the point to which it is directed; whence,

      To take Aim, prendre sa mire, (from esmer, Fr.) is to point a gun to its object according to the point-blank range. See Cannon and Range.

      ALEE, envoié, (from a and lee) the situation of the helm when it is pushed down to the lee side of the ship, in order to put the ship about, or lay her head to the windward.

      ALL in the wind, the state of a ship’s sails when they are parallel to the direction of the wind, so as to shake and shiver, by turning the ship’s head to windward, either by design, or neglect of the helm’s man.

      All’s well! an acclamation of safety or security pronounced by a centinel, and repeated by all the others who are stationed in different places of a ship of war, at the time of striking the bell each half-hour during the period of the night watch.

      All hands high, or All hands hoay! tout le monde haut! the call or order by which all the ship’s company are summoned upon deck by the boatswain.

      ALOFT, en haut, (loffter, to lift up, Dan.) up in the tops, at the mast-heads, or any where about the higher yards or rigging.

      ALONG-side, bord à bord, flanc & flanc, side by side, or joined to a ship, wharf, &c. and lying parallel thereto.

      To lay Along-side, alonger, to arrange a ship by the side of another.

      Along-shore, along the coast; this phrase is commonly applied to coasting-navigation, or to a course which is in sight of, and nearly parallel to, the shore.

      Lying Along, à la bande, (au longe, Fr.) the state of being pressed down sideways by a weight of sail in a fresh wind that crosses the ship’s course either directly or obliquely.

      ALOOF, lof, this has frequently been mentioned as a sea-term, but whether justly or not we shall not presume to determine; it is known in common discourse to imply, at a distance; and the resemblance of the phrases, keep aloof, and keep a luff, or keep the luff, in all probability gave rise to this conjecture. If it was really a sea-phrase originally, it seems to have referred to the dangers of a lee-shore, in which situation the pilot might naturally apply it in the sense commonly understood, viz. keep all off, or quite off: it is, however, never expressed in that manner by seamen now. See Luff. It may not be improper to observe, that, besides using this phrase in the same sense with us, the French also call the weather side of a ship, and the weather clue of a course, le lof.

      AMAIN, cale-tout, (from main, or maigne, old French) at once, suddenly; as, let go amain! i. e. let it run at once. This phrase is generally applied to any thing that is hoisted or lowered by a tackle, or complication of pullies.

      AMIDSHIPS, the middle of the ship, either with regard to her length or breadth. Example in the first sense; The enemy boarded us amidships, i. e. in the middle, between the stem and stern. Example in the second sense; Put the helm amidships, i. e. in the middle, between the two sides.

      ANCHOR, ancre (anchora, Lat. from [greek word] a heavy, strong, crooked instrument of iron, dropped from a ship into the bottom of the water, to retain her in a convenient station in a harbour, road, or river.

      The most ancient anchors are said to have been of stone, and sometimes of wood, to which a great quantity of lead was usually fixed. In some places baskets full of stones, and sacks filled with sand, were employed for the same use. All these were let down by cords into the sea, and by their weight stayed the course of the ship. Afterwards they were composed of iron, and furnished with teeth, which being fastened to the bottom of the sea, preserved the vessel immoveable; whence [greek word] and dentes are frequently taken for anchors in the Greek and Latin poets. At first there was only one tooth, whence anchors were called [greek word]; but in a short time the second was added by Eupalamus, or Anacharsis, the Scythian philosopher. The anchors with two teeth were called [greek word], or [greek word], and from ancient monuments appear to have been much the same with those used in our days, only the transverse piece of wood upon their handles (the stock) is wanting in all of them. Every ship had several anchors, one of which, surpassing all the rest in bigness and strength, was peculiarly termed [greek word], or sacra, and was never used but in extreme danger; whence sacram anchoram solvere, is proverbially applied to such as are forced to their last refuge. Potter’s Antiquities of Greece.

      The anchors now made are contrived so as to sink into the ground as soon as they reach it, and to hold a great strain before they can be loosened or dislodged from their station. They are composed of a shank, a stock, a ring, and two arms with their flukes. The stock, which is a long piece of timber fixed across the shank, serves to guide the flukes in a direction perpendicular to the surface of the ground; so that one of them sinks into it by its own weight as soon as it falls, and is still preserved steadily in that position by the stock, which, together with the shank, lies flat on the bottom. In this situation it must necessarily sustain a great effort before it can be dragged through the earth horizontally. Indeed this can only be effected by the violence of the wind or tide, or of both of them, sometimes increased by the turbulence of the sea, and acting upon the ship so as to stretch the cable to its utmost tension, which accordingly may dislodge the anchor from its bed, especially if the ground be soft and oozy or rocky. When the anchor is thus displaced, it is said, in the sea phrase, to come home.

      That the figure of this useful instrument may be more clearly understood, let us suppose a long massy beam of iron erected perpendicularly, Plate I. fig. 2. b c; at the lower end of which are two arms, d e, of equal thickness with the beam (usually called the shank) only that they taper towards the points, which are elevated above the horizontal plane at an angle of thirty degrees; or inclined to the shank at an angle of sixty degrees: on the upper part of each arm (in this position) is a fluke, or thick plate of iron, g h, commonly shaped like an isosceles triangle, whose base reaches inwards to the middle of the arm. On the upper-end of the shank is fixed the stock transversely with the flukes: the stock is a long beam of oak, f, in two parts, strongly bolted, and hooped together with iron rings. See also fig. 3. Close above the stock is the ring, a, to which the cable is fastened, or bent: the ring is curiously covered with a number of pieces of short rope, which are twisted about it so as to form a very thick texture or covering, called the puddening, and used to preserve the cable from being fretted or chafed by the iron.

      Every ship has, or ought to have, three principal anchors, with a cable to each, viz. the sheet, maitresse-ancre, (which is the anchora sacra of the antients) the best bower, second ancre, and small bower, ancre d’ affourche, so called from their usual situation on the ship’s bows. There are besides smaller anchors, for removing a ship from place to place in a harbour or river, where there may not be room or wind for sailing; these are the stream-anchor, ancre de touei; the kedge and grappling, grapin; this last, however, is chiefly designed for boats.

      To drag the Anchors, chasser sur ses ancres, implies the effort of making the anchor come home, when the violence of the wind, &c. strains the cable so as to tear it up from the bed into which it had sunk, and drag it along the ground; as already explained.

      Foul-Anchor: it is so called when it either hooks some other anchor, wreck, or cable, under the surface of the water; or when, by the wind suddenly abating, the ship slackens her strain, and straying round the bed of her anchor, entangles her slack cable about the upper fluke of it, and easily draws it out of its place, as soon as she begins to ride with a strain. To prevent this, it is usual, as she approaches the anchor, in light winds, to draw the slack cable into the ship as fast as possible.

      To Anchor, ancrer, mouiller, &c. is to let go the anchor, and to let the ship ride thereby.

      The Anchor is a cock-bill, ancre est àla vielle, implies that the shank-painter, or rope by which the flukes were hung to the ship’s bow, being cast off, the flukes drop down perpendicularly; whilst the anchor is suspended at the cat-head by its stopper, ready to be sunk from the bow at a moment’s warning.

      At Anchor, à l’ ancre, the situation of a ship which rides by her anchor in a road or haven, &c. Plate I. fig. 6. represents the fore-part of a ship, as riding in this situation.

      The Anchor is a peek. See the article Apeek.

      The Anchor is a-trip, or a-weigh. See those articles.

      To back the Anchor. See Back.

      To cat the Anchor, caponner l’ancre, is to hook a tackle called the cat to its ring, and thereby pull it up close to the cat-head, which see.

      To fish the Anchor, to draw up the flukes upon the ship’s side after it is catted. See the articles Davit and Fish.

      To sheer the ship to her Anchor, gouverner sur l’ancre, is to steer the ship’s head towards the place where the anchor lies when they are heaving the cable into the ship; that the cable may thereby enter the hause with less resistance, and the ship advance towards the anchor with greater facility.

      To shoe the Anchor. See the article Shoe.

      To weigh the Anchor, lever l’ancre, to heave the anchor out of the ground by its cable. See Capstern and Windlass.

      To weigh the Anchor with the long-boat, lever l’ancre avec la chaloupe, is to draw it up by applying mechanical powers to the buoy-rope, and thereby pull it up to the boat’s stem or stern.

      To weigh the Anchor by the hair, is to weigh it by the cable in a boat, when the ship cannot approach it, or when the buoy rope is broke. See the French term Ancre, and the phrases which succeed in order.

      Anchor-ground, fond de bonne tenue, is a bottom which is neither too deep, too shallow, nor rocky; as in the first the cable bears too nearly perpendicular, and is thereby apt to jerk the anchor out of the ground: in the second, the ship’s bottom is apt to strike at low water, or when the sea runs high, by which she is exposed to the danger of sinking: and in the third, the anchor is liable to hook the broken and pointed ends of rocks, and tear away its flukes; whilst the cable, from the same cause, is constantly in danger of being cut through as it rubs on their edges.

      APEEK, (à pique, Fr.) perpendicular to the anchor; a ship is said to be in this situation, when the cable is drawn so tight into the bow as to, bring her directly over the anchor, so that the cable bears right down from the ship’s stem.

      APRON, (from a and foran, Sax.) a platform, or flooring of plank, raised at the entrance of a dock, a little higher than the bottom, against which the dock gates are shut. See the article Dock.

      Apron, contre etrave, in ship-building, a piece of curved timber fixed behind the lower part of the stem, immediately above the foremost end of the keel. See plate I. fig. H. in the Pieces of the Hull.

      The Apron conforms exactly to the shape of the stem, so that when the convexity of the former is applied to the concavity of the latter, it forms one solid piece, which serves to fortify the stem, and give it a firmer connexion with the keel.

      As the apron is composed of two pieces scarfed together, and used to support she scarf of the stem, it is necessary that the scarf thereof should be at some distance from that of the stem. It is formed of the same thickness with the heel of the stem; but its thickness is equal throughout. Sometimes the piece immediately under the apron forms a curve, of which the horizontal part covers the dead-wood, whilst the vertical

part corresponds with the inside of the stem, to which it is fayed, making the commencement of the apron.

      Apron, platine, is also a square piece of lead fastened over the touch-hole of the cannon, to keep the charge dry at sea or in rainy weather.

      Naval ARCHITECTURE, or the science of ship-building, comprehends the theory of delineating marine vessels upon a plane; and the art of framing them upon the stocks, according to the proportions exhibited in a regular design.

      All edifices, whether civil or military, are known to be erected in consequence of certain established plans, which have been previously altered or improved till they have arrived at the desired point of perfection. The construction of ships appears also to require at least as much correctness and precision as the buildings which are founded upon terra firma: it is therefore absolutely necessary that the mechanical skill of the shipwright should be assisted by plans and sections, which have been drawn with all possible exactness, examined by proper calculations, and submitted to the most accurate scrutiny.

      Naval Architecture, or ship-building, may be distinguished into three principal parts.

      First, To give the ship such an exterior form as may be most suitable to the service for which she is designed.

      Secondly, to give the various pieces of a ship their proper figures; to assemble and unite them into a firm, compact frame, so that by their combination and disposition they may form a solid fabric, sufficient to answer all the purposes for which it is intended: And,

      Thirdly, To provide convenient accommodations for the officers and crew, as well as suitable apartments for the cargo, furniture, provisions, artillery and ammunition.

      The exterior figure of a ship may be divided into the bottom and upper-works.

      The bottom, or quick-work, contains what is termed the hold, and which is under water when the ship is laden. The upper-works, called also the dead-work, comprehend all that part which is usually above the water when the ship is laden.

      The figure of the bottom is therefore determined by the qualities which are necessary for the vessel, and conformable to the service for which she is proposed.

      The limits of our design will not admit of a minute description, and enumeration of all the pieces of timber which enter into the construction of a ship, nor of a particular description of their assemblage and union; or the manner in which they reciprocally contribute to the solidity of those floating citadels. It nevertheless appears necessary to give a general idea of the use, figure, and station, of the principal pieces, to those who are intirely unacquainted with the subject. As our definitions will be greatly illustrated also by the proper figures, we have annexed to this article a plate which comprehends some of the most

material draughts, as well as a representation of the principal pieces employed in naval architecture.

      It is usual amongst shipwrights to delineate three several draughts.

      First, The whole length of the ship is represented according to a side view, perpendicular to the keel, and is termed the plane of elevation, or sheer-draught. Plate I.

      Second, The ship is exhibited according to an end view, and stripped of her planks, so as to present the outlines of the principal timbers; and this is properly termed the plane of projection, or the vertical plane of the timbers, Plate I. because it shews the projection of their frames relatively to each other.

      Third, It is not sufficient to have the vertical curves of the bottom in different places, for a distinct idea of the horizontal curves is also equally necessary and useful: this is obtained by means of water-lines, traced upon what is called the horizontal plane. In this draught, the curves of the transoms called the round-aft, is also marked, and sometimes the breadth and thickness of the timbers.

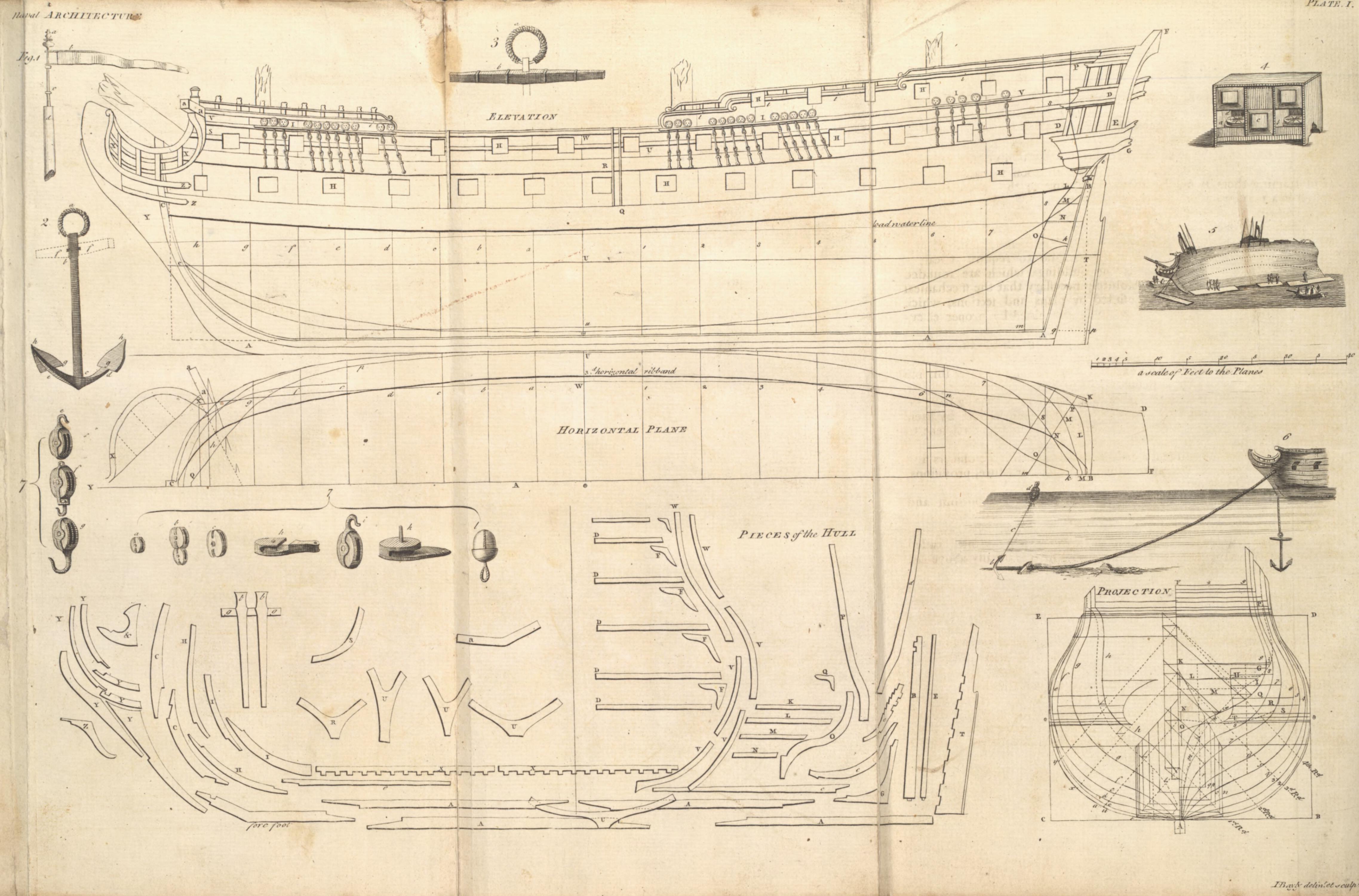

      The plane of elevation, plate I. determines the length and depth of the keel; the difference of the draughts of water; the length and projection, or rake, of the stem and stern-post; the position of the mid-ship frame upon the keel, together with that of the principal frames afore and abaft; the load-water-line; the wales, the dimensions and situations of the gun-ports, the projection of the rails of the head and stern-gallery, with the stations of the masts and channels. See the article Elevation.

      This draught, however, conveys no idea of the vertical curve of the ribs or timbers; for as their projection will be only represented in a plane elevated upon the length of the keel, they will appear in this direction no otherwise than as streight lines. To perceive these curves accurately, they must be regarded in another point of view, which will represent their projection upon a vertical plane, supposed to cut the keel at right angles in the place where the ship is broadest. For as all ships are broader near the middle of their length than towards the extremities, it is evident that the timbers are more extended in proportion. The most capacious of these represents what is called the midship-frame; and upon the area of this frame is delineated the projection of all the others.

      Thus the plane of projection limits the different breadths of a ship in various points of her length, and exhibits the outline of the timbers respectively to each other, as they are erected upon the keel. Accordingly, this draught ought to present a variety of sections of the ship in different places of her length, and always perpendicular to the surface of the water; so that the eye of the observer, when placed in what may be properly termed the axis of the ship, may perceive the several sections at one glance, that is to say, when looking full on the stem, from before the ship, (See plate V. fig. 4. ) he shall discover the fore-timbers; and when looking from behind, directly on the stern, he shall perceive

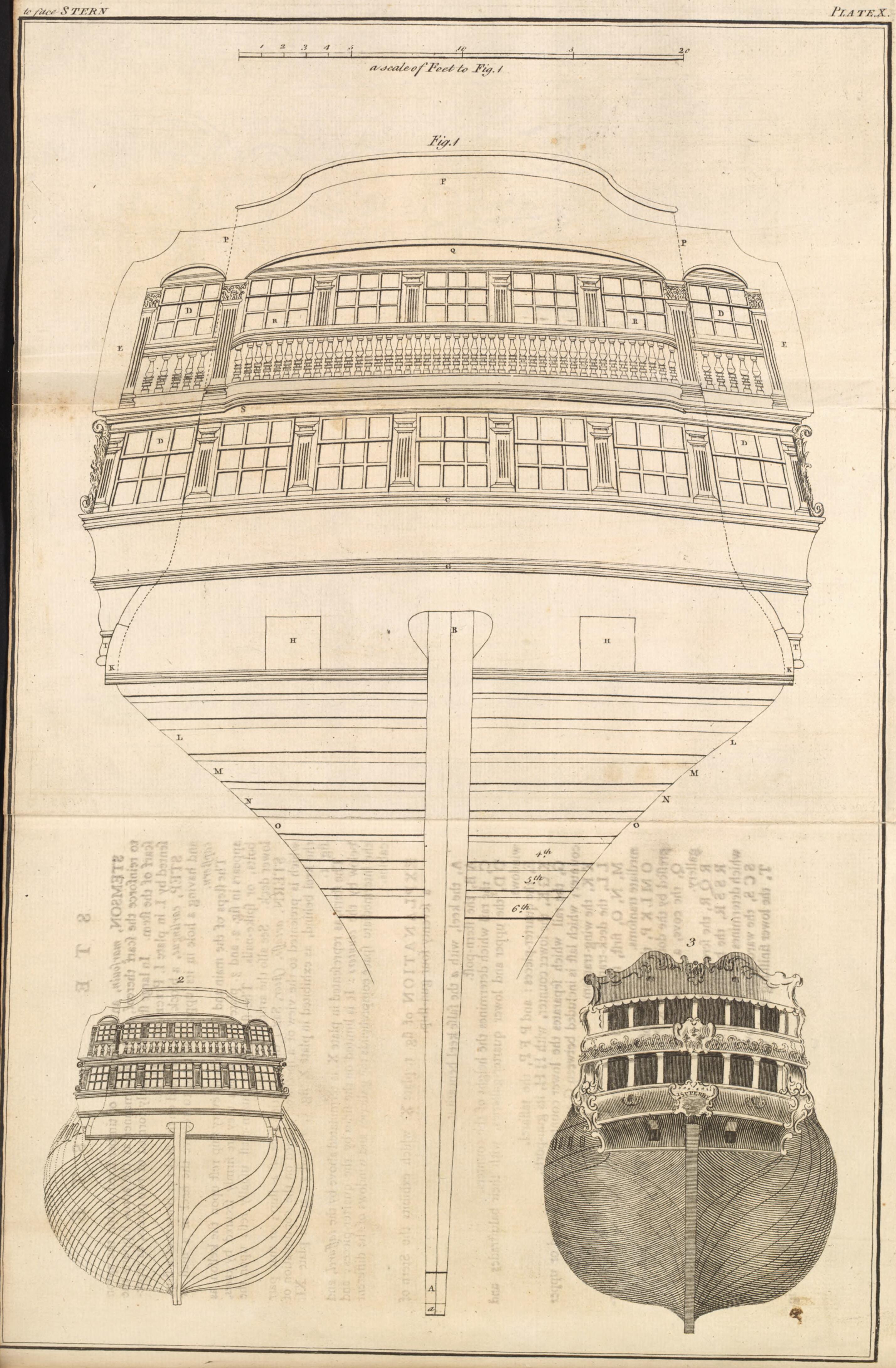

the form of the after-timbers, (See plate X. fig. 2 and 3. ) in both of which figures the sections of the inferior timbers are expressed by curved black lines drawn upon the area of the midship-frame, which is already described to be a plane elevated perpendicularly upon the keel at the extreme breadth of the vessel.

      To form a just idea of this plane, therefore, we ought to suppose a ship resting upon the stocks, in the same position as when afloat upon the water. Thus a variety of black vertical lines may be drawn at equal distances upon the bottom, which is white, to form different outlines of the ship corresponding to the timbers within. It is to be observed, that the fashion of the inferior timbers must conform to the figure of the midship-frame, which is placed in the fullest part of the ship; and as the planes of all the other timbers diminish in a certain progression as they approach the stem and stern, they are properly delineated on the plane of the midship-frame, which also represents the depth of the keel and length of the midship-beam.

      As the two sides of a ship ought to be exactly alike, it is judged sufficient to represent the sections of the fore-part of the ship on the left side, and those in the after-part on the right side, so as to perceive all the sections, as well afore as abaft, upon one plane. See plate I. Projection.

      However necessary it may be to understand precisely the vertical curves of the bottom, it is no less requisite to have a just idea of those which are horizontal.

      The horizontal, or floor plane, is that upon which the whole frame is erected, and will be more clearly understood by previously describing the water-lines and ribbands, of which it is composed.

      When a ship floats upon the stream, it is evident that her upper-works will be separated from the bottom by the surface of the water, which will accordingly describe an imaginary horizontal line upon the bottom from the stem to the stern-post.

      The most elevated of those lines is termed the load-water-line, which is supposed to be drawn by the surface of the water on the upper part of the bottom, when she is sufficiently laden for a sea-voyage. For if we suppose this surface a rule, and thereby describe a corresponding black line along the vessel’s bottom, that line will be distinguished upon the bottom, which is white, and represent what is called the load-water-line.

      If the ship is lightened of any part of her lading, and preserves the same difference in her draught of water at the two ends, or, what is the same thing, if she is lightened so as to preserve the same equilibrium of the keel with regard to the surface of the water, it is evident that she will rise higher out of the water, so that the black line already described will be elevated above it, and another black line may be delineated upon the bottom, close to the surface of the water, which will exhibit a second water-line parallel to the first, but nearer the keel in proportion to the number of feet which the ship has risen.

      Thus by lightening a ship gradually, and at the same time preserving the direction of her keel, or the angle which the keel makes with the surface of the water, a variety of water-lines may be drawn parallel to each other, and to the load-water-line. See a farther illustration of these lines in the article Water-Line. See also their figure on a ship’s bottom, plate I. fig. 5.

      The ribbands are likewise of great utility in ship-building; they are narrow and flexible planks placed on the bottom at different heights, so as to form a sort of mould for stationing the inferior timbers between the principal ones. They differ from the water-lines, inasmuch as the latter have only one curve, which is horizontal, whereas the ribbands, besides their horizontal one, have a vertical curve. To convey a just idea of these curves, which cannot be represented on one draught at their full length, without an oblique section of the ship’s length, it will be necessary to have recourse to two planes; that of the elevation, which exhibits their vertical curve; and to the floor-plane, upon which the horizontal curve is expressed. See Ribbands.

      These different lines are extremely useful in exhibiting the various curves of a ship’s bottom, that as they are gradually diminished, their uniformity or irregularity may be discovered by the skilful artist.

      We have already observed, that the qualities required in a ship ought to determine the figure of the bottom: a ship of war therefore should be able to sail swiftly, and carry her lower tier of guns sufficiently out of the water. A merchant-ship ought to contain a large cargo of merchant-goods, and be navigated with few hands; and both should be able to carry sail firmly; steer well; drive little to leeward; and sustain the shocks of the sea without being violently strained.

      The first thing to be established in the draught of a ship is her length; and as a ship of war, according to her rate, is furnished with a certain number of cannon, which are placed in battery on her decks, it is necessary that a sufficient distance should be left between their ports to work the guns with facility, and particularly to leave space enough between the foremost gun and the stem, and between the aftmost gun and the stern-post on each side, on account of the arching, or inward curve of the ship towards her extremities.

      When the length of a ship is determined, it is usual to fix her breadth by the dimensions of the midship-beam. On this occasion the shipwrights, for the most part, are conducted by rules founded on their own observation; for having remarked, that some vessels which by repeated experience have been found to answer all the purposes of navigation, have a certain breadth in proportion to their length, they have inferred that it would be improper to depart from this proportion: but as other ships have been constructed with different breadths, which were equally perfect, a variety of different general rules have been adopted by these artists, who are accordingly divided in their opinions about the breadth which ought to be assigned to a ship relatively with her length, whilst each one produces reasons and experience in support of his own standard. Those who would diminish the breadth alledge, that

a narrow vessel meets with less resistance in passing through the water; 2dly. That by increasing the length she will drive less to leeward; 3dly. That according to this principle, the water-lines will be more conveniently formed to divide the fluid; 4thly. That a long and narrow ship will require less sail to advance swiftly; that her masts will be lower, and her rigging lighter; and, by consequence, the seamen less fatigued with managing the sails, &c.

      Those, on the contrary, who would enlarge the breadth, pretend, 1st. That this form is better fitted to preserve a good battery of guns. 2dly. That there will be more room to work the guns conveniently. 3dly. That by carrying more sail the ship will be enabled to run faster; or, that this quality will at least overbalance the advantage which the others have of more easily dividing the fluid. 4thly. That, being broader at the load-water-line, or place where the surface of the water describes a line round the bottom, they will admit of being very narrow on the floor, particularly towards the extremities: and 5thly. That a broad vessel will more readily rise upon the waves than a narrow one.

      From such opposite principles has resulted that variety of standards adopted by different shipwrights; and a servile imitation of these mechanical methods has, to the great reproach of the art, produced all these pretended rules of proportion: for the various models they have hitherto adopted indisputably prove their doubt and uncertainty with regard to their proper standard. Hence these pretended mysteries which are only to be revealed to such as are initiated into the craft! Hence this division of the art into classes, or, according to the technical term, into families, each of which affects, with becoming solemnity, to be possessed of the true secret, in preference to all the others! And hence violence of opposition, and mutual contempt amongst the artists! Indeed nothing appears more effectually to have retarded the progress of naval architecture, than the involving it in mysteries which the professors would gravely insinuate are only intelligible to themselves. This ridiculous affectation is nevertheless tenaciously retained, notwithstanding the example to the contrary of some of the most able shipwrights in Europe, who are real masters of the theory of their art, and do honour to their profession, and who are justly exempted from the censure to which the others are often exposed.

      It is not to be expected that an art so complicated and various, comprehending such a diversity of structures, can be treated at large in a work of this sort. To enter into a particular detail of the theory and practice; to explain the different parts with sufficient accuracy and perspicuity, would of itself require a large volume, and, by consequence, greatly exceed the limits of our design. Being thus necessitated to contract our description into a narrow compass, it will be sufficient to give a general idea of the subject; to describe the principal pieces of which a ship is composed, and to explain the principal draughts used in the construction thereof.

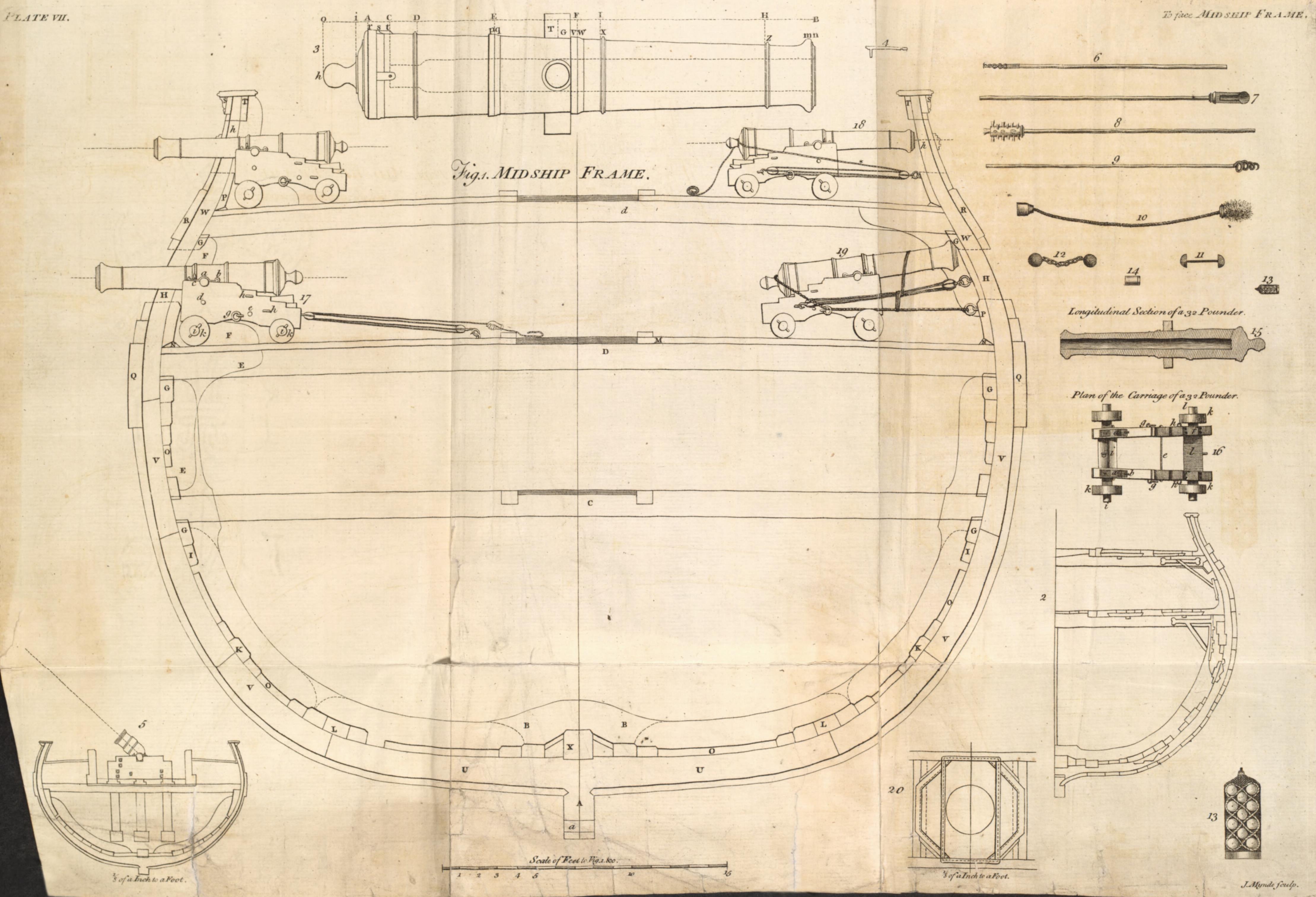

      As the several lines exhibited in the planes of elevation, projection, &c. will be rendered more intelligible by a previous account of those pieces, it may not be improper to begin with reciting their names, and giving a summary description of their uses and stations. They are for the most part represented according to the order of their disposition in that part of plate I. which is termed Pieces of the Hull.

      A. The pieces which compose the keel, to be securely bolted together, and clinched.

      B. The stern-post, which is tenanted into the keel, and connected to it by a knee, G. It supports the rudder, and unites the sides of the ship abaft.

      C. The stem, which is composed of two pieces scarfed together: it is an arching piece of timber, into which the ship’s sides are united forwards.

      D. The beams, which are used to support the decks, and confine the sides to their proper distance.

      E. The false post, which serves to augment the breadth of the stern-post, being also tenanted into the keel.

      F. The knees, which connect the beams to the sides.

      G. The knee of the stern-post, which unites it to the keel.

      H. The apron, in two pieces: it is fayed on the inside of the stem, to support the scarf thereof; for which reason, the scarf of the former must be at some distance from that of the latter.

      I. The stemson, in two pieces, to reinforce the scarf of the apron.

      K. The wing transom: it is fayed across the stern-post, and bolted to the head of it, having its two ends let into the fashion-pieces.

      L. The deck transom, parallel to the wing-transom, and secured in the same manner.

      M. N. The lower transoms.

      O. The fashion-piece on one side; the heel of it is connected with the stern-post, and the head is secured to the wing-transom.

      P. The top-timbers, or upper parts of the fashion-pieces.

      Q. The sleepers, which fasten the transoms to the ship’s side.

      R. The breast-hooks, in the hold; they are fayed across the stem, to strengthen the fore part of the ship.

      S. The breast-hooks of the deck: they are placed immediately above the former, and used for the same purposes.

      T. The rudder, which is joined to the stern-post by hinges, and serves to direct the ship’s course.

      U. The floor-timbers; they are laid across the keel, to which they are firmly bolted.

      V. The lower futtocks, and

      W. The top-timbers, which are all united to the floor-timbers, forming a frame that reaches from the keel to the top of the side.

      X. The pieces which compose the kelson: they are scarfed together like the keel pieces, and placed over the middle of the floor-timbers,

upon each of which they are scored about an inch and a half, as exhibited by the notches.

      Y. The several pieces of the knee of the head; the lower part of which is fayed to the stem; the heel being scarfed to the fore-foot.

      Z. The cheeks of the head or knees, which connect the head to the bows on each side.

      &. The standard of the head, which fastens it to the stem.

      a. The catheads, one of which lies on each bow, projecting outwards like the arm of a crane. They are used to draw the anchors up to the top of the side without injuring the bow.

      b. The bits, to which the cable is fastened when the ship rides at anchor.

      c. The false post, in two pieces, fayed to the fore part of the stern-post.

      d. The side-counter-timbers, which terminate the ship abaft within the quarter gallery.

      e e. Two pieces of dead wood, one afore, and another abaft, fayed on the keel.

      In vessels of war, the general dimensions are established by authority of officers appointed by the government to superintend the building of ships. In the merchants service, the extreme breadth, length of the keel, depth in the hold, height between-decks and in the waste, are agreed on by contract; and from these dimensions the shipwright is to form a draught suitable to the trade for which the ship is designed.

      In projecting the draught of a vessel of war, the first article to be considered is her length. As all ships are much longer above than below, it is also necessary to distinguish the precise part of her height from which her length is taken: this is usually the lower gun-deck, or the load water-line. It has been already observed, that water-lines are described longitudinally on a ship’s bottom by the surface of the water in which she floats, and that the line which determines her depth under the water is usually termed the load-water-line. In this draught it will be particularly necessary to leave sufficient distance between the ports.

      The next object is to establish the breadth by the midship-beam. Although there is great difference of opinion about proportioning the breadth to the length, yet it is most usual to conform to the dimensions of ships of the same rate. After the dimensions of the breadth and length are determined, the depth of the hold must be fixed, which is generally half the breadth: but the form of the body should be considered on this occasion; for a flat floor will require less depth in the hold than a sharp one. The distance between the decks must also be settled.

      We may then proceed to fix the length of the keel, by which we shall be enabled to judge of the rake of the stem and stern-post. The rake is known to be the projection of the ship at the height of the stem and stern-post, beyond the ends of the keel afore and abaft; or the angle by

which the length is increased as the fabric rises. To these we may also add the height of the stem and wing transom.

      After these dimensions are settled, the timbers may be considered which form the sides of the ship. A frame of timbers, which appears to be one continued piece, is composed of one floor-timber, U, whose arms branch outward to both sides of the ship; (See plate I. Pieces of the Hull) two or three futtocks V V, and a top-timber, W. The futtocks are connected to the upper arms of the floor-timbers on each side of the ship, and serve to prolong the timber in a vertical direction: and the top-timbers are placed at the upper part of the futtocks for the same purpose. All these being united, and secured by cross-bars, form a circular enclosure, which is called a frame of timbers, couple d’un vaisseau. And as a ship is much broader at the middle than at the extremities, the arms of the floor-timber will form a very obtuse angle at the extreme breadth; but this angle decreases in proportion to the distance of the timbers from the midship-frame, so that the foremost and aftmost ones will form a very acute angle. Floor-timbers of the latter sort are usually called crutches.

      Shipwrights differ extremely in determining the station of the midship-frame; some placing it at the middle of the ship’s length, and others further forward. They who place it before the middle, alledge, that if a ship is full forward, she will meet with no resistance after she has opened a column of water; and that the water so displaced will easily unite abaft, and by that means force the ship forward; besides having more power on the rudder, in proportion to its distance from the center of gravity: this also comes nearer the form of fishes, which should seem the most advantageous for dividing the fluid.

      When the rising of the midship-floor-timber is decided, we may then proceed to describe the rising-line of the floor, on the stern-post abaft, and on the stem afore.

      The height of the lower-deck is the next thing to be considered: it is determined in the middle by the depth of the hold; and some builders make it no higher than the stem; but they raise it abaft as much above its height in the middle, as the load-water-mark, or draught of water abaft, exceeds that afore. With regard to the height between decks, it is altogether arbitrary, and must be determined by the rate of the ship, and the service she is designed for.

      It is also necessary to remember the sheer of the wales, and to give them a proper hanging; because the beauty and stateliness of a ship greatly depend upon their figure and curve, which, if properly drawn, will, make her appear airy and graceful on the water.

      We come now to consider the upper-works, and all that is above water, called the dead-work: and here the ship must be narrower, so that all the weight lying above the load-water-line will thereby be brought nearer the middle of the breadth, and of course the ship will be less strained by the working of her guns, &c. But although some advantages are acquired by diminishing the breadth above water, we must be careful not to narrow her too much; as there must be sufficient

room left on the upper-deck for the guns to recoil. The security of the masts should likewise be remembered, which requires sufficient breadth to spread the shrouds. A deficiency of this sort may indeed be in some measure supplied by enlarging the breadth of the channels.

      With regard to the qualities required in the construction of a ship, to fit her for the various purposes of navigation, the reader is referred to the article Bottom.

      We shall now proceed to explain the sheer draught, or plane of elevation, of a sixty gun ship; wherein we have been attentive to make the same letters refer to the same objects, as in the explanation of the Pieces, as above; at least when the same objects are in both figures; a conduct we shall invariably pursue throughout this work, although it seems to have been forgot by our predecessors. Thus in all the plates of ship-building, the keel, whether separate or joined, is represented by A, the stern-post by B, the stem by C, the beams by D; unless where those objects do not all appear, and then something else is placed instead thereof. Thus in plate III. of the deck, where the keel cannot be seen, the main hatchway is represented by A, as not being inserted in any figure wherein the keel appears.

      A A. The keel, whose upper edge is prolonged by the dotted line p q, upon the extremities of which are erected perpendiculars which determine the height of the wing transom, K, and length of the gun-deck, K C.

      A B. The stern-post.

      A C. The stem.

      D D. The quarter-gallery, with its windows.

      E F. The quarter-pieces, which limit the stern on each side.

      F. The taffarel, or upper piece of the stern.

      F G. Profile of the stern, with its galleries.

      H. The gun ports.

      I. The channels, with their dead-eyes and chain-plates.

      K. The wing-transom.

      K G. The counter.

      L B. The deck-transom.

      M N O. The first, second, and third transoms, of which O K is the third or lowest.

      m O L P. The direction of the fashion-piece, having its breadth canted aft towards the stern.

      Q R. The main skeeds, for hoisting in the boats clear of the ship’s side. L Q Z. The main wale, with its sheer afore and abaft.

      D R X. The channel wales, parallel to the main wale.

      S U S. The sheer rail, parallel to the wales.

      T t. The rudder.

      A t F. The rake of the stern.

      V W V. The waist-rail.

      P i i. The drift-rails abaft; and i a, the drift-rails forward.

      T U C. The water-line.

      X X. The rails of the head.

      Y. The knee of the head, or cutwater.

      Z Z. The cheeks of the head.

      a a. The cat-head.

      M ? C. The rising line of the floor.

      k u C. The cutting-down line, which limits the thickness of all the floor-timbers, and likewise the height of the dead-wood afore and abaft.

      ? u U W. The midship-frame.

      a, b, c, d, e, f, g, h. The frames or timbers in the fore-body of the ship, i. e. before the midship frame.

      1, 2, 3, 4, 5, 6, 7, 8, 9. The timbers in the after-body, or which are erected abaft the midship-frame.

      As the eye of a spectator is supposed in this projection to view the ship’s side in a line perpendicular to the plane of elevation, it is evident that the convexity will vanish, like that of a cylinder or globe, when viewed at a considerable distance; and that the frames will consequently be represented by strait lines, except the fashion-piece abaft and the knuckle-timber forward.

      It has been already observed, that the plane of projection may be defined a vertical delineation of the curves of the timbers upon the plane of the midship-frame, which is perpendicular to that of the elevation. It is necessary to observe here, that the various methods by which these curves are described, are equally mechanical and arbitrary. In the latter sense, they are calculated to make a ship fuller or narrower according to the service for which she is designed, and in the former they are drawn according to those rules which the artist has been implicitly taught, to follow, or which his fancy or judgment has esteemed the most accurate and convenient. They are generally composed of several arches of a circle, reconciled together by moulds framed for that purpose. The radii of those arches therefore are of different lengths, according to the breadth of the ship in the place where such arches are swept; and they are expressed on the plane of projection either by horizontal or perpendicular lines; the radii of the breadth sweeps being always in the former, and the radii of the floor sweeps in the latter direction. These two arches are joined by a third, which coincides with both, without intersecting either. The curve of the top-timber is either formed by a mould which corresponds to the arch of the breadth-sweep, or by another sweep, whose center and radius are without the plane of projection. The breadth of the ship at every top-timber is limited by an horizontal line drawn on the floor-plane, called the half-breadth of the top-timbers. The extreme breadth is also determined by another horizontal line on the floor-plane; and the lines of half-breadth are thus mutually transferable, from the projection and floor-planes, to each other.

      The necessary data by which the curves of the timbers are delineated then are, the perpendicular height from the keel, the main or principal breadth, and the top-timber breadth: for as a ship is much broader near the middle of her length than towards the ends, so she is broader

in the middle of her height than above and below; and this latter difference of breadth is continued throughout every point of her length. The main breadth of each frame of timbers is therefore the ship’s breadth nearly in the middle of her height in that part: and the top-timber breadth is the line of her breadth near the upper ends of each timber. It has been already observed, that as both sides of a ship are alike, the artificers only draw one side, from which both sides of the ship are built: therefore the timbers abaft the midship frame are exhibited on one side of the plane of projection, and the timbers before it on the other.

Plane of PROJECTION, Plate I.

A. The keel.

      B C. The line which expresses the upper-edge of the keel, from which the height of each timber, and height of its different breadths are measured.

      B D and C E, perpendiculars raised on the line B C, to limit the ship’s extreme breadth and height amid-ships; or, in other words, to limit the breadth and height of the midship-frame.

      A F. A perpendicular erected from the middle of the keel to bisect the line of the ship’s breadth in two equal parts.

      F * 9. The half-breadth line of the aftmost top-timber; being the uppermost horizontal line in this figure.

      Note. The seven lines parallel to, and immediately under this, on the right side of the line A F, are all top-timber half-breadths, abaft the midship-frame; the lowest of which coincides with the horizontal line D E.

      The parallel horizontal lines nearly opposite to these, on the left side of the line A F, represent the top-timber half-breadths in the fore-body, or the half-breadths of the top-timbers before the midship-frame.

      G, H, I, Q, R, S, T. The radii of the breadth-sweeps abaft the midship-frame; those of the breadth-sweeps in the fore-body, or before the midship-frame, are directly opposite on the right side.

      ⟴ A ⟴. The midship-frame, from the extreme breadth downwards.

      1, 2, 3, 4, 5, 6, 7, 8, 9. The out-lines of timbers abaft the midship-frame, in different parts of their height.

      a, b, c, d, e, f, g, h. The outlines of the timbers before the midship-frame, in different parts of their height, h being the foremost, or knucke-timber.

      K i. The wing-transom, whose ends rest upon the fashion-piece.

      L. The deck-transom, parallel to, and under the wing-transom.

      M N O. The lower-transoms, of which O k is the third and lowest,

      m k P. The dotted line, which expresses the figure of the fashion-piece, without being canted aft.

      P. The upper-part, or top-timber of the fashion-piece.

      n, o, p, q, r, s. The radii of the floor-sweeps, abaft the midship-frame: those before the midship-frame are on the opposite side of the line A F, to which they are all parallel.

      1st R^d. 2d R^d. 3d R^d. 4th R^d. The diagonal ribbands abaft the midships.

      t, u, x, y. The same ribbands expressed in the fore-body.

      It has been remarked above, that the horizontal plane is composed of water-lines and ribbands; it also contains the main and top-timber breadth-lines, or the longitudinal lines by which the main-breadth and top-timber-breadth are limited in every point of the ship’s length. The horizontal curve of the transoms and harpins are also represented therein, together with the planes of the principal timbers; the cant of the fashion-piece, the length of the rake afore and abaft, the projection of the cat-heads, and the curve of the upper-rail of the head, to which curves of the lower ones are usually parallel.

      B A C. The line of the ship’s length, passing through the middle of the stem and stern-post.

      B. The upper-end of the stern-post.

      C. The upper-end of the stem.

      B F. The length of the rake abaft.

      D W X. The top-timber-breadth-line, or the line which limits the breadth of each top-timber.

      D F. The breadth of the aftmost timber at the taffarel.

      B K. The wing-transom.

      B L P. The horizontal curve of the deck-transom.

      M M. The horizontal curve, or round-aft, of the first transom.

      M N. The horizontal curve of the second transom: it is prolonged into a water-line, N 8 7.

      k O. The horizontal curve of the third transom, which is also prolonged into another water-line, O, n, U, p, Q.

      m O P. The plane of the fashion-piece, as canted aft.

      ⟴ W U. The plane of the midship-frame.

      a, b, c, d, e, f, h. The planes of the timbers before the midship-frame.

      1, 2, 3, 4, 5, 6, 7, 8, 9. The planes of the timbers abaft the midship-frame.

      X X. The figure of the upper-rail of the head.

      C Y. The projection of the knee of the head.

      The Third horizontal ribband, is marked on the plate.

      a a. The projection of the cat-head.

      Thus we have endeavoured briefly to explain the nature and uses of the principal draughts used in the construction of a ship, which reciprocally correspond with each other in the dimensions of length, breadth, and depth. Thus the plane of elevation is exactly of the same length with the horizontal or floor-plane. The several breadths of the timbers in the floor-plane and that of the projection are mutually transferable; and the real height of the timbers in the projection, exactly conforms to their height in the elevation. Thus let it be required to transfer the height of the wing-transom from the elevation to the projection:

      Extend the compasses from the point K, in the elevation, down to the dotted line prolonged from the upper-edge of the keel, and setting the other foot in the point p, then shall the line K p be the perpendicular height of the wing transom: transfer this from the middle of the line B A C, in the projection, to the point K in the perpendicular A F, then will A K be the height of the wing-transom in the plane of projection: and thus the height of all the transoms may be laid from the former upon the latter.

      Again, let it be required to transfer the main-breadth of the midship-frame from the projection to the horizontal plane: Set one foot of the compasses in the point ? on the perpendicular C E, and extend the other along the main-breadth-sweep ? G, till it touches the perpendicular A F parallel to C E: lay this distance upon the horizontal plane from the point u in the line of the ship’s length, B A C, along the plane of the midship-frame to the point ?; so shall the line ? W U be the breadth of the midship-frame on the horizontal plane.

      Thus also the top-timber-breadth, or the distance of each top-timber from the middle of the ship’s breadth, may be in the same manner transferred, by extending the compasses from the line B A C, in the horizontal plane, to the top-timber breadth-line, upon any particular timber, as 1, 2, 3, &c. which will give its proper dimensions thereon.

      In the same manner the breadths of all the timbers may be laid from the projection to the horizontal plane, and vice versa, from that to the projection. Thus the height of each timber may also be transferred from the elevation to the projection, &c.

      The principal utility of these draughts therefore is to exhibit the various curves of the ship’s body, and of the pieces of which it is framed, in different points of view, which are either transverse or longitudinal, and will accordingly present them in very different directions. Thus the horizontal curves of the transoms and water-lines are represented on the floor-plane, all of which are nearly streight lines in the elevation and projection; and thus the vertical curves of the timbers are all exhibited on the projection, although they appear as streight lines in the elevation and floor plane.

      Before this article is closed, it may be necessary to remark, that the various pieces represented in plate I. as well as the lines in the draughts which have not been already defined, are copiously explained in their proper places; as it would have been contrary to the plan of this work to have given a more enlarged description of them here.

      That the reader, however, might be better enabled to comprehend the scope of this article, it was judged necessary to give a general sketch of naval architecture itself; to collect into one point of view the most material draughts by which a ship is constructed, and to describe, as concisely as possible, the several parts of which they are composed.

      The principal parts of a ship also, which are here reduced into a narrow compass, will be represented at large in different places of this work, to illustrate those explanations whither it may be necessary to

refer, in order to understand the subject more clearly. Thus the stern, the quarter, the midship-frame, the bow and head, of a ship of 74 guns, are exhibited on a scale of ¼ of an inch to a foot; by which all the subordinate parts may be distinctly viewed, and their combination and arrangement sufficiently understood.

      ARMED-SHIP, vaisseau armé en guerre, a vessel occasionally taken into the service of the government in time of war, and employed to guard some particular coast, or attend on a fleet. She is therefore armed and equipped in all respects like a ship of war, and commanded by an officer of the navy, who has the rank of master and commander. All ships of this sort are upon the establishment of the king’s sloops, having a lieutenant, master, purser, surgeon, &c.

      ASHORE, (from a and shore) on the shore, or land, as opposed to aboard.

      A ship is said to be Ashore, echoué, when she has run upon the ground, or on the sea-coast, either by design or accident.

      ASTERN, au derriere, (from a and steorn, Sax.) any distance behind a ship, as opposed to a-head, which is before her. Thus, when south is a-head, or on the line to which the stem is directed, north will be astern.

      ATHWART, par le travers, (from a and twert, Dan. transverse) when used in navigation, implies across the line of the course; as, we discovered a fleet at day-break standing athwart us, i. e. steering across our way.

      Athwart-Hause, the situation of a ship when she is driven by the wind, tide, or other accident, across the fore-part of another. This phrase is equally applied when the ships bear against each other, or when they are at a small distance; the transverse position of the former to the latter being principally understood.

      Athwart the fore-foot, a phrase employed to denote the flight of a cannon-ball, as fired from one ship across the line of another’s course, to intercept the latter, and compel her to shorten sail till the former approaches near enough to examine her. The fore-foot is the lower part of the stem; so that the shot flying across it is said to be fired athwart the fore-foot.

      Athwart-Ships, reaching across the ship, from one side to the other.

      ATRIP (trepor, Fr. trippen, Dutch) is applied differently to the anchor and the sails. The anchor is atrip, derangée, when it is drawn out of the ground in a perpendicular direction, either by the cable or buoy-rope. The top-sails are said to be atrip, when they are hoisted up to the mast-head, or to their utmost extent.

      AVERAGE, in commerce avarie, (averagium, Lat.) the accidents and misfortunes which happen to ships and their cargoes, from the time of their loading and sailing, till their return and unlading. It is divided into three kinds. 1. The simple or particular average, which consists in the extraordinary expences incurred for the ship alone, or for the mer-

chandise alone; such is the loss of anchors, masts, and rigging, occasioned by the common accidents at sea; the damages which happen to merchandises by storms, capture, shipwreck, wet, or rotting; all which must be borne and paid by the thing that suffered the damage. 2. The large and common average, being those expences incurred, and damages sustained, for the common good and security, both of the merchandise and vessels, consequently to be borne by the ship and cargo, and to be regulated upon the whole. Of this number are the goods or money given for the ransom of the ship and cargo; things thrown overboard for the safety of the ship; the expences of unlading, or entering into a river or harbour, and the provisions and hire of the sailors when the ship is put under embargo. 3. The small averages, which are expences for towing and piloting the ship out of, or into harbours, creeks, or rivers; one third of which must be charged to the ship, and two thirds to the cargo.

      Average is more particularly used for a certain contribution that merchants make proportionably towards their losses. It also signifies a small duty which the merchants, who send goods in another man’s ship, pay to the master, for his care of them, over and above the freight. Hence it is expressed in the bills of lading, paying so much freight for the said goods, with damage and average accustomed.

      AWEIGH, a quitté (of a and weigh) the state of the anchor when it is drawn out of the ground in a perpendicular direction, by the application of mechanical powers, as a capstern or windlass, to the cable within the ship; so that aweigh is synonimous to atrip.

      AWNING, tendelet, (from aulne, Fr.) a canopy of canvass extending over the decks of a ship in hot weather, for the convenience of the officers and crew, and to preserve the decks from being cracked or split, ebaroui, by the heat of the sun: The awning is supported by a range of light posts, called stanchions, which are erected along the ship’s side on the right and left; it is also suspended in the middle by a complication of small cords, called a crowfoot. See the article Crowfoot.

      AZIMUTH-Compass, an instrument employed to discover the magnetical azimuth or amplitude of any heavenly object. This operation is performed at sea, to find the exact variation of the magnetical needle. The compass will be described in its proper place: it is, however, necessary here to explain the additional contrivance by which it is fitted to take the magnetical azimuth, or amplitude of the sun or stars, or the bearings of head-lands, ships, and other objects at a distance.

      The brass edge, originally designed to support the card, and throw the weight thereof as near the circumference as possible, is itself divided into degrees and halves; which may be easily estimated into smaller parts if necessary. The divisions are determined by means of a cat-gut line stretched perpendicularly with the box, as near the brass edge as may be, that the parallax arising from a different position of the observer may be as little as possible.

      There is also added an index at the top of the inner-box, which may be fixed on or taken off at pleasure, and serves for all altitudes of the object. It consists of a bar, equal in length to the diameter of the inner-box, each end being furnished with a perpendicular stile, with a slit parallel to the sides thereof; one of the slits is narrow, to which the eye is applied, and the other is wider, with a small cat-gut stretched up the middle of it, and from thence continued horizontally from the top of one stile to the top of the other. There is also a line drawn along the upper surface of the bar. These four, viz. the narrow slit, the horizontal cat-gut thread, the perpendicular one, and the line on the bar, are in the same plane, which disposes itself perpendicularly to the horizon when the inner-box is at rest and hangs free. This index does not move round, but is always placed on, so as to answer the same side of the box.

      The sun’s azimuth is known to be an angle contained between the meridian and the center of the sun. When this is required, and his rays are strong enough to cast a shadow, the box is turned about till the shadow of the horizontal thread, or if the sun be too low, till that of the perpendicular thread, in one stile, or the slit through the other, falls upon the line in the index bar, or vibrates to an equal distance on each side of it, the box being gently touched if it vibrates too far: at the same time they observe the degree marked upon the brass edge of the cat-gut line. In counting the degree for the azimuth, or any other angle that is reckoned from the meridian, the outward circle of figures upon the brass edge is used; and the situation of the index, with respect to the card and needle, will always direct upon what quarter of the compass the object is placed.

      But if the sun does not shine out sufficiently strong, the eye is placed behind the narrow slit in one of the stiles, and the wooden box turned about till some part of the horizontal, or perpendicular thread appears to intersect the center of the sun, or vibrate to an equal distance on each side of it; smoked glass being used next the eye, if the sun’s light is too strong. In this method another observer is necessary, to note the degree cut by the nonius, at the same time the first gives notice that the thread appears to split the object.

      Plate II. fig. 20. is a perspective view of the compass, when in order for observation; the point of view being the center of the card, and the distance of the eye two feet.

      A B. is the wooden box in which it is usually contained.

      K. is a cat-gut line drawn from the inside of the box for determining the degree upon the brass edge.

      L, M, N, O. is the index bar with its two stiles, and cat-gut threads, which being taken off from the top of the box, is placed in two pieces P Q, notched properly to receive it.

      The other parts of the figure, with their references, are explained in the article Compass.

B.

BACK of the post. See the article Stern-post.

      To Back an anchor, empeneller, to carry out a small anchor, as the stream or kedge, ahead of the large one, by which the ship usually rides, in order to support it, and prevent it from loosening, or coming home, in bad ground. In this situation, the latter is confined by the former, in the same manner that the ship is restrained by the latter.

      To Back astern, in rowing, scier à culer, is to manage the oars in a direction contrary to the usual method, so as that the boat or vessel impressed by their force, shall retreat, or move with her stern foremost, instead of advancing.

      To Back the sails, is to arrange them in a situation that will occasion the ship to retreat or move astern. This operation is particularly necessary in narrow channels, when a ship is carried along sideways by the strength of the tide or current, and it becomes requisite to avoid any object that may intercept her course, as shoals, or vessels under sail, or at anchor: it is also necessary in a naval engagement, to bring a ship back, so as to lie opposite to her adversary, when she is too far advanced in the line. See Aback.

      BACK-BOARD, a piece of board of a semicircular figure, placed transversely in the after-part of a boat, like the back of a chair, and serving the passengers to recline against whilst sitting in the stern-sheets. See Boat.

      BACK-STAYS, cale haubans, (from back and stay) long ropes reaching from the topmast-heads to the starboard and larboard sides of the ship, where they are extended to the channels: they are used to support the top-masts, and second the efforts of the shrouds, when the mast is strained by a weight of sail in a fresh wind.

      They are usually distinguished into breast-back-stays and after-back-stays; the intent of the former being to sustain the top-mast when the force of the wind acts upon the ship sideways, or, according to the sea-phrase, when the ship sails upon a wind; and the purpose of the latter is to enable it to carry sail when the wind is further aft.

      There are also back-stays for the top-gallant-masts, in large ships, which are fixed in the same manner with those of the top-masts.

      A pair of back-stays is usually formed of one rope, which is doubled in the middle, and fastened there so as to form an eye, which passes over the mast-head, from whence the two ends hang down, and are stretched to the channels by dead-eyes and laniards. See Dead-eyes, &c.

      The figure of the back-stays, and their position, is exhibited in the article Rigging, to which the reader is further referred.

      BADGE, bouteille, fausse galerie, in ship-building, a sort of ornament, placed on the outside of small ships, very near the stern, containing either a window, for the convenience of the cabin, or the representation of it: it is commonly decorated with marine figures, martial instruments, or such like emblems. See Quarter.

      To BALANCE, (balancer, Fr.) to contract a sail into a narrower compass, in a storm, by retrenching or folding up a part of it at one corner; this method is used in contradistinction to reefing, which is common to all the principal sails; whereas balancing is peculiar to few, such as the mizen of a ship, and the main-sail of those vessels, wherein it is extended by a boom. See Boom and Reef.

      The Balance of the mizen, fanon, is thus performed: the mizen-yard is lowered a little, then a small portion of the sail is rolled up at the peek, or upper corner, and fastened to the yard about one fifth inward from the outer end, or yard-arm, toward the mast. See Mizen.

      A boom-main-sail is balanced, after all its reefs are taken in, by rolling up a similar portion of the hindmost, or aftmost lower-corner, called the clue, and fastening it strongly to the boom, having previously wrapped a piece of old canvas round the part (which is done in both cases) to prevent the sail from being fretted by the cord which fastens it.

      BALLAST, lest, (ballaste, Dut. ballastro, Span.) a certain portion of stone, iron, gravel, or such like materials, deposited in a ship’s hold, when she has either no cargo, or too little to bring her sufficiently low in the water. It is used to counter-ballance the effort of the wind upon the masts, and give the ship a proper stability, that she may be enabled to carry sail without danger of over-turning.

      There is often great difference in the proportion of ballast required to prepare ships of equal burthen for a voyage; the quantity being always more or less, according to the sharpness or flatness of the ship’s bottom, which seamen call the floor.

      The knowledge of ballasting a ship with propriety, is certainly an article that deserves the attention of the skilful mariner; for although it is known that ships in general will not carry a sufficient quantity of sail, till they are laden so deep that the surface of the water will nearly glance on the extreme breadth amidships; yet there is more than this general knowledge required; since, if she has a great weight of heavy ballast, as lead, iron, &c. in the bottom, it will place the center of gravity too low in the hold; and although this will enable her to carry a great sail, she will nevertheless sail very heavily, and run the risk of being dismasted by her violent rolling.

      To ballast a ship, therefore, is the art of disposing those materials so that she may be duly poised, and maintain a proper equilibrium on the water, so as neither to be too stiff, nor too crank, qualities equally pernicious; as in the first, although the ship may be fitted to carry a great sail, yet her velocity will not be proportionably increased; whilst her masts are more endangered by her sudden jerks and excessive labouring:

and in the last, she will be incapable of carrying sail, without the risk of oversetting.

      Stiffness in ballasting, is occasioned by disposing a great quantity of heavy ballast, as lead, iron, &c. in the bottom, which naturally places the center of gravity very near the keel; and that being the center about which the vibrations are made, the lower it is placed, the more violent will be the motion of rolling.

      Crankness, on the other hand, is occasioned by having too little ballast, or by disposing the ship’s lading so as to raise the center of gravity too high, which also endangers the mast in carrying sail when it blows hard: for when the masts lose their perpendicular height, they strain on the shrouds in the nature of a lever, which encreases as the sine of their obliquity; and a ship that loses her masts is in great danger of being lost.

      The whole art of ballasting, therefore, consists in placing the center of gravity to correspond with the trim and shape of the vessel, so as neither to be too high nor too low; neither too far forward, nor too far aft; and to lade the ship so deep, that the surface of the water may nearly rise to the extreme breadth amidships; and thus she will be enabled to carry a good sail, incline but little, and ply well to the windward. See the article Trim.

      BANIAN-Days, a cant term among common sailors, denoting those days on which they have no flesh-meat: it seems to be derived from the practice of a nation amongst the eastern Indians, who never eat flesh.

      BANK, banc, atterrissement, (banc, Sax.) an elevation of the ground, or bottom of the sea, which is often so high as to appear above the surface of the water, or at least so little beneath it, as to prevent a ship from floating over it: in this sense, bank amounts nearly to the same as shallows, flats, &c. The shelves that abound with rocks under water, are distinguished by other names, as reefs, ridges, keys, &c.

      An exact knowledge of the banks, their extent, and the different depths of water in which they lie, constitutes a very essential portion of the science of a pilot, or master of a ship. If the vessel be large, and draws much water, great attention will be necessary to avoid them. If, on the contrary, she is small, the same banks afford a sure asylum, where she may brave the largest ships, which dare not follow her to so dangerous a retreat. Many small vessels have eluded the pursuit of a superior enemy by means of this hospitable barrier.

      Banks on the sea-coast are usually marked by beacons or buoys. In charts they are distinguished by little dots, as ridges of rocks are characterised by crosses. The principal banks in the Western Ocean, are those of Newfoundland, and the Bahama-Bank: the most remarkable one in Newfoundland is called the Grand Bank, which is of a vast extent, being nearly two hundred miles in length, and stretching north and south: its usual depth is from twenty to eighty fathoms: and this is the great scene of the cod-fishery, which is so material an article in European commerce.

      Bank of oars, a seat or bench of rowers in a galley.

      BANKER, a vessel employed in the cod-fishery on the Banks of Newfoundland.

      BAR of a port or haven, a shoal or bank of sand, gravel, &c. thrown up by the surge of the sea, to the mouth of a river or harbour, so as to endanger, and sometimes totally prevent the navigation.

      BARCA-LONGA, a large Spanish fishing-boat, navigated with lug-sails, and having two or three masts: these are very common in the Mediterranean. See Vessel.

      BARGE (bargie, Dutch) a vessel or boat of state, furnished with elegant apartments, canopies, and cushions; equipped with a band of rowers, and decorated with flags and streamers: they are generally used for processions on the water, by noblemen, officers of state, or magistrates of great cities. Of this sort we may naturally suppose the famous barge or galley of Cleopatra, which, according to Shakespeare,

      There are likewise other barges of a smaller kind, for the use of admirals and captains of ships of war. These are of a lighter frame, and may be easily hoisted into, and out of the ships to which they occasionally belong. See Boat.

      Barge, cabotiere, is also the name of a flat-bottomed vessel of burthen, for lading and discharging ships, and removing their cargoes from place to place in a harbour.

      BARK (barca, low Lat.) a general name given to small ships: it is however peculiarly appropriated by seamen to those which carry three masts without a mizen top-sail. Our northern mariners, who are trained in the coal-trade, apply this distinction to a broad-sterned ship, which carries no ornamental figure on the stem or prow.

      BARNICLE, cravan, a species of shell-fish, often found sticking to the bottoms of ships, rocks, &c.

      BARRICADE (barricada, Span.) a strong wooden rail, supported by several little pillars or stanchions, and extending, as a fence, across the foremost part of the quarter-deck. In a vessel of war, the intervals between the pillars are commonly filled with cork, junks of old cable, or matts of platted cordage. In the upper-part, there is a double rope-netting, supported by double cranes of iron, extending about a foot above the rail; and between the two parts of the netting are stuffed a

number of hammocks, filled with the seamens bedding, to intercept and prevent the execution of small-shot fired by swivel guns, carabines, or muskets, in the time of battle.

      BARS of the Capstern and Windlass. See those articles.

      BASIN of a dock, (bassin, Fr.) a place where the water is confined by double flood-gates, and thereby prevented from running out at the tide of ebb. The use of it is to contain ships whilst repairing, either before they enter, or after they come out of the dock.

      Basin, paradis, also implies some part of a haven, which opens from a narrow channel into a wide and spacious reservoir for shipping.

      BATTENS of the hatches, a sort of long narrow laths, scantlings of wooden stuff, or streight hoops of casks. They are nailed along the edges of tarpaulings, which are pieces of tarred canvas, of sufficient breadth and length to cover the hatches at sea; the battens serve to confine the edges of the tarpaulings close down to the sides of the hatches, to prevent the water, which may rush over the decks in a storm, from penetrating into the lower apartments of the ship.

      BAY, baye, a gulf or inlet of the sea-coast, comprehended between two promontories, or capes of land, where shipping frequently ride at anchor, sheltered from the wind and sea.

      BEACON, balise, (beacon, Sax.) a post or stake erected over a shoal or sand-bank, as a warning to seamen to keep their ships at a distance.

      BEAK-HEAD, coltis, a name given to a ship’s head whose forecastle is square or oblong, a circumstance common to all vessels of war which have two or more decks of guns. In smaller ships, the forecastle is nearly shaped like a parabola, whose vertex, or angular point, lies immediately over the stem.

      The strong, projecting, pointed beaks used by the antients in time of battle, have been intirely rejected since the use of gun-powder.

      BEAMS, baux, (beam, Sax. a tree) strong thick pieces of timber, stretching across the ship from side to side, to support the decks, and retain the sides at their proper distance.

      The Beams of ships of war are usually formed of three pieces scarfed together; as appears in plate III. They are sustained at each end by thick planks in the ship’s side, called clamps, upon which they rest. They are also firmly connected to the timbers of the ship by means of strong knees, and sometimes by standards. See Midship-Frame.

      It is necessary that the beams, as represented in the midship-frame, should have a greater height in the middle than at the two ends, to carry the water more readily off from the decks, and to diminish the recoil of the guns, which will thereby more easily return into their places.

      The longest of these is called the midship-beam; it is lodged in the midship-frame, or between the widest frame of timbers. At about two thirds of the height from the keel to the lower-deck, are laid a range of beams, to fortify the hold, and support a platform called the orlop, which contains the cables and stores of the ship.

      There are usually twenty-four beams on the lower-deck of a ship of seventy-four guns, and to the other decks additional ones in proportion, as the ship lengthens above.

      On the Beam, implies any distance from the ship on a line with the beams, or at right angles with the keel: thus, if the ship steers or points northward, any object lying east or west, is said to be on the starboard or larboard beam. Thus also,

      Before the Beam, is an arch of the horizon comprehended between the line that crosses her length at right angles, and some object at a distance before it, or between the line of the beam, and that point of the compass which she stems. Thus if a ship, steering west, discovers an island on the right, three points before the beam, the island must bear N W b N from the ship. See the article Bearing.

      BEAN-COD, a small fishing-vessel, or pilot-boat, common on the sea-coasts and in the rivers of Portugal. It is extremely sharp forward, having its stem bent inward above into a great curve: the stem is also plated on the fore-side with iron, into which a number of bolts are driven, to fortify it, and resist the stroke of another vessel, which may fall athwart-hause. It is commonly navigated with a large lateen sail, which extends over the whole length of the deck, and is accordingly well fitted to ply to windward.

      BEAR-a-hand! a phrase of the same import with make haste, dispatch, quick, &c.

      BEARING, in navigation, gissement, an arch of the horizon intercepted between the nearest meridian and any distant object, either discovered by the eye, or resulting from the sinical proportion; as in the first case, at 4 P. M. Cape Spado, in the isle of Candia, bore S by W. by the compass.

      In the second, the longitudes and latitudes of any two places being given, and consequently the difference of latitude and longitude between them, the bearing from one to the other is discovered by the following analogy:

      Bearing is also the situation of any distant object, estimated from some part of the ship according to her position. In this sense, an object so discovered, must be either ahead, astern, abreast, on the bow, or on the quarter.

      These Bearings, therefore, which may be called mechanical, are on the beam, before the beam, abaft the beam, on the bow, on the quarter, ahead, or astern. If the ship sails with a side-wind, it alters the names of such bearings in some measure, since a distant object on the beam is then said to be to leeward, or to windward; on the lee quarter, or bow; and on the weather quarter or bow.

      Bearing-up, or Bearing-away, arriver, in navigation, the act of changing the course of a ship, in order to make her run before the wind, after she had sailed some time with a side-wind, or close-hauled: it is generally performed to arrive at some port under the lee, or to avoid some imminent danger occasioned by a violent storm, leak, or enemy in sight.

      This phrase, which is absurd enough, seems to have been derived from the motion of the helm, by which this effect is partly produced; as the helm is then borne up to the windward, or weather side of the ship. Otherwise, it is a direct contradiction in terms, to say that a ship bears up, when she goes before the wind; since the current of the wind, as well as that of a river, is always understood to determine the situation of objects or places within its limits. In the first sense we say, up to windward and down to leeward; as in the latter we say, up or down the river. This expression, however, although extremely improper, is commonly adopted in the general instructions of our navy, printed by authority, instead of bearing down, or bearing away.

      BEATING, in navigation, the operation of making a progress at sea against the direction of the wind, in a zig-zag line, or traverse, like that in which we ascend a steep hill. As this method of sailing will be particularly explained under the term Tacking, the reader is referred to that article.

      To BECALM, derober, (from calme, Dut.) to intercept the current of the wind, in its passage to a ship, with any contiguous object, as a shore above her sails, a high sea behind, or some other ship. At this time the sails remain in a state of rest, and are consequently deprived of their power to govern the motion of the ship.

      BECKETS, bille, imply in general any thing used to confine loose ropes, tackles, oars, or spars, in a convenient place, where they may be disposed out of the way till they are wanted. Hence, beckets are either large hooks, or short pieces of rope, with a knot in one end and an eye in the other, or formed like a circular wreath; or they are wooden brackets; and, probably, from a corruption and misapplication of this last term, arose the word becket, which seems often to be confounded with bracket.

      Put the tacks and sheets in the Beckets! the order to hang up the weather main and fore-sheet, and the lee main and fore-tack, to a little knot and eye-becket on the foremost main and fore-shrouds, when the ship is close-hauled, to prevent them from hanging in the water.

      BED, a flat thick piece of timber, usually formed of the rough staves of casks, or such like materials, to be lodged under the quarters of casks containing any liquid, and stowed in a ship’s hold. The use of the beds is to support the cask, and keep the bilge, or middle-part of it, from bearing against the ship’s floor, or against the body upon which it rests, lest the staves should give way and break in the place where they are weakest: or lie in a wet place, so as to rot in the course of the voyage. See the article Stowing.

      Bed of a river, lit., the bottom of the channel in which the stream or current usually flows.

      Bed of a cannon. See Carriage.

      To BELAY, amarrer, (from beleygen, Belg.) to fasten a rope, by winding it several times round a cleat, belaying-pin, or kevel: this term is peculiar to small ropes, and chiefly the running-rigging, there being several other expressions used for large ropes, as bitting, bending, making fast, stoppering, &c. See those articles.

      BEND, avuste, (probably from bindan, Sax. to bind) the knot by which one rope is fastened to another, hence

      To Bend, is to fasten one rope to another, of which there are several methods.

      BENDING the cable, the operation of clinching, or tying the cable to the ring of its anchor.

      Bending a sail, fastening it to its yard or stay. See the articles Sail, Stay, and Yard.

      BENDS, the thickest and strongest planks in a ship’s side. See Wales, by which name they are more properly called.

      BETWEEN-DECKS, entre-pont, the space contained between any two decks of a ship.

      BEVELLING, in ship-building, the art of hewing a timber with a proper and regular curve, according to a mould which is laid on one side of its surface.

      ‘In order to hew any piece of timber to its proper bevel, it will be necessary, first, to make one side fair, and out of winding; a term used to signify that the side of a timber should be a plane. If this side be uppermost, and placed horizontally, or upon a level, it is plain, if the timber is to be hewed square, it may be done by a plummet and line; but if the timber is not hewed square, the line will not touch both the upper and lower edge of the piece; or if a square be applied to it, there will be wood wanting either at the upper or lower side. This is called within or without a square. When the wood is deficient at the under-side, it is called under-bevelling; and when it is deficient in the upper-side, it is called standing-bevelling: and this deficiency will be more or less according to the depth of the piece; so that before the proper bevellings of the timbers are found, it will be sometimes very convenient to assign the breadth of the timbers; nay, in most cases it will be absolutely necessary, especially afore and abaft: though the breadth of two timbers, or the timber and room, which includes the two timbers and the space between them, may be taken without any sensible error, as far as the square body goes. For as one line represents the moulding-side of two timbers, the fore-side of the one being supposed to unite with the aft-side of the other; the two may be considered as one intire piece of timber.’ Murray’s Ship-building.

      BIGHT, balant, (bygan, Sax. to bend) the double part of a rope when it is folded, in contradistinction to the end: as, her anchor hooked the bight of our cable, i.e. caught any part of it between the ends. The bight of his cable has swept our anchor; that is, the double part of the cable of an-

other ship, as she ranged about, has entangled itself under the stock or fluke of our anchor.

      Bight, anse, is also a small bay between two points of land.

      BILANDER, bilandre, Fr. a small merchant-ship with two masts.

      The Bilander is particularly distinguished from other vessels of two masts by the form of her main-sail, which is a sort of trapezia, the yard thereof being hung obliquely on the mast in the plane of the ship’s length, and the aftmost or hinder end peeked or raised up to an angle of about 45 degrees, and hanging immediately over the stern; while the fore end slopes downward, and comes as far forward as the middle of the ship. To this the sail is bent or fastened; and the two lower corners, the foremost of which is called the tack, and the aftmost the sheet, are afterwards secured, the former to a ring-bolt in the middle of the ship’s length, and the latter to another in the taffarel. The main-sails of larger ships are hung across the deck instead of along it, being fastened to a yard which hangs at right angles with the mast and the keel.

      Few vessels, however, are now rigged in this method, which has probably been found more inconvenient than several others. See Ship. It may not be improper to remark, that this name, as well as brigantine, has been variously applied in different parts of Europe to vessels of different sorts.

      BILGE, (supposed from bilik, Sax. a storm) that part of the floor of a ship, on either side of the keel, which approaches nearer to an horizontal than to a perpendicular direction, and on which the ship would rest if laid on the ground: or more particularly, those parts of the bottom which are opposite to the heads of the floor-timbers amidships on each side of the keel. Hence, when a ship receives a fracture in this place, she is said to be bilged.

      BILL of lading, connoissement, an acknowledgment signed by the master of a ship, and given to a merchant, containing an account of the goods which the former has received from the latter, &c. with a promise to deliver them at the intended place for a certain sum of money. Each bill of lading must be treble; one for the merchant who ships the goods, another to be sent to the person to whom they are consigned, and the third to remain in the hands of the master of the said ship. It must, however, be observed, that a bill of lading is only used when the goods sent on board a ship are but part of the cargo; for when a merchant loads a vessel entirely on his own account, the deed passed between him and the master of the ship is called charter-party. See Charter-party.

      BINACLE, a wooden case or box, which contains the compasses, log-glasses, watch-glasses, and lights to shew the compass at night.

      As this is called bittacle in all the old sea-books, even by mariners, it appears evidently to be derived from the French term habitacle, (a small habitation) which is now used for the same purpose by the seamen of that nation.

      The Binacle (plate I. fig. 4.) is furnished with three apartments, with sliding shutters: the two side ones, a b, have always a compass in each, d, to direct the ship’s way, while the middle division, c, has a lamp or can-

dle, with a pane of glass on either side to throw a light upon the compass in the night, whereby the man who steers may observe it in the darkest weather, as it stands immediately before the helm on the quarter-deck.

      There are always two binacles on the deck of a ship of war, one being designed for the man who steers, and the other for the person who superintends the steerage, whose office is called conning, or cunning.

      BIRTH, or Berth, eviteé, the station in which a ship rides at anchor, either alone or in a fleet; or the distance between the ship and any adjacent object; comprehending the extent of the space in which she ranges at the length of her cables; as, she lies in a good birth, i. e. in a convenient situation, or at a proper distance from the shore and other vessels; and where there is good anchoring-ground, and shelter from the violence of the wind and sea.

      Birth, appartement, also signifies the room or apartment where any particular number of the officers or ship’s company usually mess and reside. In a ship of war there is commonly one of these between every two guns.

      To BITE, mordre, to hold fast in the ground; expressed of the anchor.

      BITS, bittes, (bitol, Sax.) a frame composed of two strong pieces of timber, fixed perpendicularly in the fore-part of a ship, whereon to fasten her cables as she rides at anchor. See b b, Pieces of the Hull.

      These pieces being let down through square mortises cut in the decks above and below, are bolted and fore-locked to the ship’s beams. There are several bits in a ship, the principal of which are those for the cables: their upper ends commonly reach about four or five feet above the lower deck, over which the cable passes. They are supported on the fore part by strong standards; one arm of which is bolted to the deck, and the other to the bits: and on the after part is fixed a strong beam of timber, g, (plate I. Pieces of the Hull) parallel to the deck, and at right angles with the bits, to which it is bolted and forelocked. The ends of this beam, which is called the cross-piece, reach about two or three feet beyond the bits, whose upper-ends are nearly two feet above the cross-piece. The cable being passed once round about these bits, may be gradually slackened at pleasure; without which it would be impossible to prevent it from running out with the utmost rapidity, when the ship rides a great strain, which is always the case in a storm, or an impetuous tide. In ships of war there are usually two pair of cable bits, and when they are both used at once, the cable is said to be double-bitted. The plan of the bits, with their cross-pieces and standards, are represented in plate III. where b b are the bits, e their standards, and g the cross-piece.

      To Bit the cable, is to put it round the bits, in order to fasten it, or slacken it gradually, which last is called veering away.

      The other bits are of a smaller kind, but constructed nearly in the same manner. They are used to fasten the top-sail-sheets, or the ropes by which the lower corners of the top-sails are extended.

      BLACK-STRAKES, a range of planks immediately above the wales in a ship’s side: they are always covered with a mixture of tar and lamp-black, forming an agreeable variety with the white bottom be-

neath, and the scraped planks of the side, covered with melted turpentine or varnish of pine, above. All the yards are likewise daubed with this mixture, which not only preserves them from the heat of the sun and the weather, but gives them a fine gloss, which makes a good appearance contrasted with the white varnish on the masts.

      BLADE. See the article Oar.

      BLOCK, poulie, a machine known in mechanics by the name of pully, and used for various purposes in a ship, particularly to increase the mechanical power of the ropes employed in contracting, dilating, or traversing the sails. The ends of these ropes, being arranged in certain places upon the deck, may thus be readily found whenever they are wanted. The blocks, which are for these purposes disposed in various places upon the masts, yards, and sails, and amongst the rigging, are also of various sizes, shapes, and powers, according to the effect they are calculated to produce. They are single, double, or treble, being so denominated from the number of wheels they contain. There are even some of five, six, and seven fold, but these are only employed to raise or move some very weighty bodies, and are not used about the yards or sails. We shall begin by describing the most simple, and afterwards proceed to those which are more complicated.

      A common single block is composed of three parts; the shell, the sheave, and the pins. The shell, arcasse, approaches nearest to the figure of a long spheroid, somewhat flatted in the middle. Between the two flat sides it is hollowed so as to receive a narrow cylindrical wheel called the sheave, rouet, formed of lignum vitæ, or other hard wood; and thro’ the centre of this sheave is bored a round hole, to admit of a pin, which is driven through two corresponding holes in the middle of the shell, perpendicular to the hollow space within. The pin thus becomes the axis of the wheel or sheave, which completes the wooden work of the machine. Thus formed, it is bound with a sort of rope-ring, which is closely fitted to a notch passing round the surface of the shell, and over both ends of the pin: and by this ring, or wreath, which is called a block-strop, they are suspended upon the masts, shrouds, &c.

      The complicated blocks, or those which contain a number of wheels, either have all the wheels to run upon one axis, (see plate I.) or have their shells so formed that the wheels are one above another. In the former shape they approach nearest the figure of a cylinder, and in the latter appear like two or more single blocks joined together endways.

      In plate I. fig. 7. a, represents a single block, and b, c, two double ones, of different kinds, without strops. Fig. e, f, two double tackle-blocks iron bound, the lower one, f, being fitted with a swivel, g, a double iron-bound block with a large hook, h, a snatch-block, i, a top-block, k, a voyal-block, and l, a clue-garnet-block. See Snatch-Block, Tackle, and Voyal.

      The Cat-block (plate II fig. 15.) is employed to draw the anchor up the cat-head. See the article Cat.

      The swivel in the iron-bound block is to turn it, that the several parts of the rope of which the tackle is composed may not be twisted round each other, which would greatly diminish the mechanical power.

      The top-block is used to hoist up or lower down the top-masts, and is for this purpose hooked in an eye-bolt driven into the cap. See Cap.

      The clue-garnet blocks are used to draw the clues, or lower-corners of the courses, up to the yard, and are consequently fastened to the clues of those sails. See Clue-garnet. The use of the shoulder on the lower-end, is to prevent the strop from being fretted or chafed by the motion of the sail, as the ship rolls or pitches.

      BOARD, in navigation, (bordée, Fr.) the space comprehended between any two places where the ship changes her course by tacking; or the line over which she runs between tack and tack, when she is turning to windward, or sailing against the direction of the wind. See the articles Beating and Tacking.

      She makes a good Board, i. e. sails nearly upon a streight line, without deviating to leeward when she is close-hauled. See Close-hauled.

      BOARDING, abordage, an assault made by one ship upon another, by entering her in battle with a detachment of armed men; either because the efforts of the artillery and musquetry have proved ineffectual, or because she may have a greater number of men, and be better equipped for this attack than the enemy who defends herself against it.

      This stratagem, however, is chiefly practised by privateers upon merchant-ships, who are not so well provided with men, and rarely attempted in the royal navy; the battle being generally decided in men of war by the vigorous execution of a close cannonade.

      An officer should maturely consider the danger of boarding a ship of war before he attempts it; and be well assured that his adversary is weakly manned: for perhaps he wishes to be boarded, and if so, a great slaughter will necessarily follow.

      The swell of the sea ought also to be considered, because it may run so high as to expose both the ships to the danger of sinking.

      There is perhaps very little prudence in boarding a ship of equal force; and when it is attempted, it may be either to windward or to leeward, according to the comparative force or situation of the ships. If there be any swell, or sea, it may be more adviseable to lay the enemy aboard on the lee-side, as the water is there the smoothest; besides, if the boarder is repulsed in that situation, he may more easily withdraw his men, and stand off from his adversary. But as the weather-ship can generally fall to leeward at any time, it is perhaps more eligible to keep to windward, by which she will be enabled to rake her antagonist, or fire the broadside into her stern as she crosses it, in passing to leeward, which will do great execution amongst her men, by scouring the whole length of the deck.

      Boarding may be performed in different places of the ship, according to the circumstances, preparation and position of both: the assailant having previously selected a number of men armed with pistols and cutlasses. A number of powder-flasks, or flasks charged with gun-powder and fitted with a fuse, are also provided, to be thrown upon the enemy’s deck immediately before the assault. Besides this, the boarder is

generally furnished with an earthen shell, called a stink-pot, which on that occasion is suspended from his yard-arms or bow-sprit-end. This machine is also charged with powder, mixed with other inflammable and suffocating materials, with a lighted fuse at the aperture. Thus prepared for the action, and having grappled his adversary, the boarder displays his signal to begin the assault. The fuses of the stink-pot and powder-flasks being lighted, they are immediately thrown upon the deck of the enemy, where they burst and catch fire, producing an intolerable stench and smoke, and filling the deck with tumult and distraction. Amidst the confusion occasioned by this infernal apparatus, the detachment provided rush aboard sword in hand, under cover of the smoke, on their antagonist, who is in the same predicament with a citadel stormed by the besiegers, and generally overpowered, unless he is furnished with extraordinary means of defence, or equipped with close-quarters, to which he can retreat with some probability of safety. See the article Close-Quarters.

      BOAT (bæt, Sax. boot, Belg.) a small open vessel, conducted on the water by rowing or sailing. The construction, machinery, and even the names of boats, are very different, according to the various purposes for which they are calculated, and the services on which they are to be employed.

      Thus they are occasionally slight or strong; sharp or flat-bottomed; open or decked; plain or ornamented; as they may be designed for swiftness or burthen; for deep or shallow water; for sailing in a harbour or at sea; and for convenience, or pleasure.

      The largest boat that usually accompanies a ship is the long-boat, chaloupe, which is generally furnished with a mast and sails: those which are fitted for men of war, may be occasionally decked, armed, and equipped, for cruising short distances against merchant-ships of the enemy, or smugglers, or for impressing seamen, &c.

      The barges are next in order, which are longer, slighter, and narrower: they are employed to carry the principal sea-officers, as admirals, and captains of ships of war, and are very unfit for sea. See the article Barge.

      Pinnaces exactly resemble barges, only that they are somewhat smaller, and never row more than eight oars; whereas a barge properly never rows less than ten. These are for the accommodation of the lieutenants, &c.

      Cutters of a ship, bateaux, are broader, deeper, and shorter than the barges and pinnaces; they are fitter for sailing, and are commonly employed in carrying stores, provisions, passengers, &c. to and from the ship. In the structure of this sort of boats, the lower-edge of every plank in the side over-lays the upper-edge of the plank below, which is called by shipwrights clinch-work.

      Yawls, canots, are something less than cutters, nearly of the same form, and used for similar services; they are generally rowed with six oars.

      The above boats more particularly belong to men of war; as merchant-ships seldom have more than two, viz. a long-boat and yawl:

when they have a third, it is generally calculated for the countries to which they trade, and varies in its construction accordingly.

      Merchant-ships employed in the Mediterranean find it more convenient to use a lanch, which is longer, more flat-bottomed, and better adapted every way to the harbours of that sea than a long-boat. See Lanch.

      A wherry, diligence, is a light sharp boat, used in a river or harbour for carrying passengers from place to place.

      Punts, flette, are a sort of oblong flat-bottomed boats, nearly resembling floating stages; they are used by shipwrights and caulkers, for breaming, caulking, or repairing a ship’s bottom.

      A moses is a very flat broad boat, used by merchant-ships amongst the Caribbee-islands, to bring hogsheads of sugar off from the sea-beach to the shipping which are anchored in the roads.

      A felucca is a strong passage-boat used in the Mediterranean, from ten to sixteen banks of oars. The natives of Barbary often employ boats of this sort as cruisers.

      For the larger sort of boats, see the articles Craft, Cutter, Periagua, and Shallop.

      Of all the small boats, a Norway yawl seems to be the best calculated for a high sea, as it will often venture out to a great distance from the coast of that country, when a stout ship can hardly carry any sail.

      Trim the Boat! barque-droit! the order to sit in the boat in such a manner as that she shall float upright in the water, without leaning to either side.

      To bale the Boat, is to throw out the water which remains in her bottom or the well-room.

      Moor the Boat! the order to fasten a boat with two ropes, so as that the one shall counter-act the other.

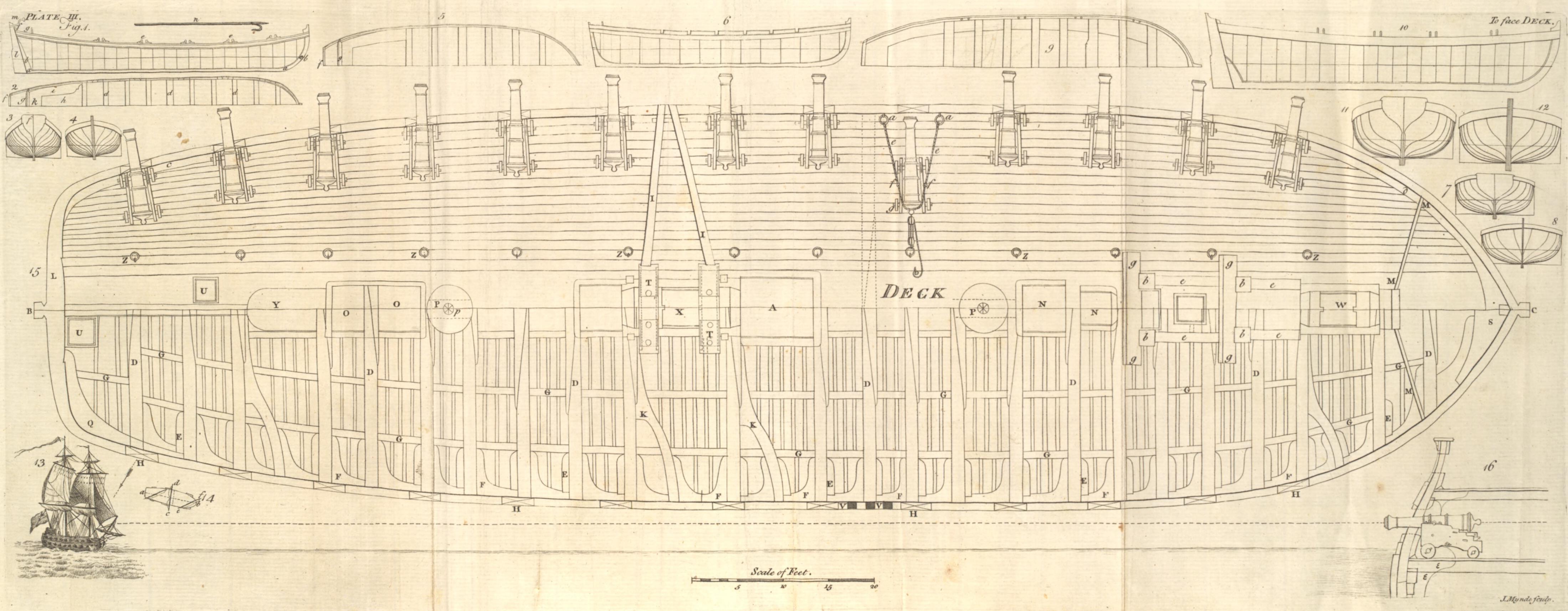

      For a representation of some of the principal boats of a ship of war, see plate III. where fig. 1. exhibits the elevation, or side view, of a ten-oared barge; a a, its keel; b, the stern-post; c, the stem; b c, the water-line, which separates what is under the surface of the water from what is above it; e, the row-locks, which contain the oars between them; f, the top of the stern; g, the back-board; f g, the place where the cockswain stands or sits while steering the boat; l, the rudder, and m, the tiller, which is of framed iron.

      Fig. 2. represents the plan of the same barge, where d is the ‘thwarts, or seats where the rowers sit to manage their oars; f, i, h, the stern-sheets; i k, the benches whereon the passengers sit in the stern-sheets: the rest is explained in fig. 1.

      Fig 3. is a stern view of the same barge, with the projection of all the timbers in the after-body; and fig. 4, a head view, with the curves of all the timbers in the fore-body.

      Having thus explained the different views of the barge, the reader will easily comprehend the several corresponding parts in the other boats; where fig. 5 is the plan, and fig. 6 the elevation of a twelve-oared cutter that rows double banked: which, although seldom employed unless in capital ships, because requiring twelve rowers, is nevertheless a very

excellent boat, both for rowing and sailing. Fig. 7 and 8 are the head and stern of this boat.

      Fig. 9 is the plan of a long-boat, of which fig. 10 is the elevation, 11 the stern-view, and 12 the head-view.

      Boat-hook, an iron hook with a sharp point on the hinder part thereof, to stick into a piece of wood, a ship’s-side, &c. It is stuck upon a long pole or shaft, (pl. III. fig. 1 n.) by the help of which a person in the boat may either hook any thing to confine the boat in a particular place, or push her off by the sharp point attached to the back of the hook.

      Boatswain, Contre-maitre, the officer who has the boats, sails, rigging, colours, anchors, and cables committed to his charge.

      It is the duty of the boatswain particularly to direct whatever relates to the rigging of a ship, after she is equipped from a royal dock-yard. Thus he is to observe that the masts are properly supported by their shrouds, stays, and back-stays, so that each of those ropes may sustain a proportional effort when the mast is strained by the violence of the wind, or the agitation of the ship. He ought also to take care that the blocks and running-ropes are regularly placed, so as to answer the purposes for which they are intended; and that the sails are properly fitted to their yards and stays, and well furled or reefed when occasion requires.

      It is likewise his office to summon the crew to their duty; to assist with his mates in the necessary business of the ship; and to relieve the watch when it expires. He ought frequently to examine the condition of the masts, sails, and rigging, and remove whatever may be judged unfit for service, or supply what is deficient: and he is ordered by his instructions to perform this duty with as little noise as possible.

      BOB-STAY, sous-barbe, a rope used to confine the bowsprit of a ship downward to the stem, or cut-water. It is fixed by thrusting one of its ends through a hole bored in the fore-part of the cut-water for this purpose, and then splicing both ends together so as to make it two-fold, or like the link of a chain: a dead-eye is then seized into it, and a laniard passing through this and communicating with another dead-eye upon the bowsprit, is drawn extremely tight by the help of mechanical powers. See Bowsprit.

      The use of the bob-stay, is to draw down the bowsprit, and keep it steddy; and to counter-act the force of the stays of the fore-mast, which draw it upwards. The bowsprit is also fortified by shrouds from the bows on each side; which are all very necessary, as the foremast and the upper-part of the main-mast are stayed and greatly supported by the bowsprit. For this reason, the bob-stay is the first part of a ship’s rigging which is drawn tight to support the masts. To perform this task more effectually, it is usual to suspend a boat, anchor, or other weighty body, at the bowsprit-end, to press it downwards during this operation.

      BOLSTERS, a sort of small cushions or bags, filled with tarred canvas, laid between the collars of the stays and the edge of some piece of wood on which they lie: they are used to preserve the stays from being

chafed or galled by the motion of the masts, as the ship rocks or pitches at sea.

      BOLT-ROPE, ralingue, a rope to which the edges or skirts of the sails are sewed, to strengthen, and prevent them from rending. Those parts of the bolt-rope which are on the perpendicular or sloping edges, are called leech-ropes; that at the bottom, the foot-rope; and that on the top or upper edge, the head-rope. Stay-sails, whose heads are formed like an acute angle, have no head-rope. To different parts of the bolt-rope are fastened all the ropes employed to contract or dilate the sails. The figure and position of the bolt-rope is exhibited in the plate referred to from the article Sail.

      BOMB. See the articles Mortar and Shell.

      BOMB-VESSEL, a small ship particularly calculated to throw bombs into a fortress. They are said to be invented by M. Reyneau, and to have been first put in action at the bombardment of Algiers. Till then it had been judged impracticable to bombard a place from the sea. See a particular description of these ships in the article Ketch.

      BOOM, estacade, barre, (from boom, a tree, Dutch) in marine fortification, a strong chain or cable, on which are fastened a number of poles, bars, &c. extending athwart the mouth of a harbour or river, to prevent the enemies ships of war from entering. It may be occasionally sunk, or drawn up to the surface of the water, by capsterns, and other mechanical powers.

      Booms, boute dehors, certain long poles run out from different places in the ship to extend the bottoms of particular sails. Of these there are several sorts; as the jib-boom, studding-sail-booms, ring-tail-boom, driver-boom, main-boom, and square-sail-boom; the two last, however, are only appropriated to small ships of one or two masts. See Jib, &c.

      BOOT-TOPPING, the act of cleaning the upper-part of a ship’s bottom, or that part which lies immediately under the surface of the water, and daubing it over with tallow, or with a coat or mixture of tallow, sulphur, resin, &c.

      Boot-topping is chiefly performed where there is no dock, or other commodious situation for breaming or careening; or when the hurry of a voyage renders it inconvenient to have the whole bottom properly trimmed and cleansed of the filth which gathers to it in the course of a sea-voyage. It is executed by making the ship lean to one side, as much as they can with safety, and then scraping off the grass, slime, shells, or other material, that adheres to the bottom, on the other side, which is elevated above the surface of the water for this purpose, and accordingly daubed with the coat of tallow and sulphur. Having thus finished one side, they make the ship lean to the other side, and perform the same operation, which not only preserves the bottom from the worm, but makes the ship slide smoothly through the water. See Careen and Dock.

      BORE. See the article Cannon.

      BOTH SHEETS AFT, entre deux écoutes, the situation of a ship that sails right afore the wind, or with the wind right astern.

      BOTTOM, carene, (botm, Sax. bodem, Belg.) as a sea-term, is either used to denote the bottom of a ship, or that of the water: thus in the former sense we say, a clean or a foul bottom; a British, French, or Dutch bottom: and in the latter sense, a rocky, sandy, or oozy bottom.

      The bottom of a ship, as we have described in the article Naval Architecture, comprehends all that part which is under water when the ship is laden; the figure of it must therefore be determined by the qualities required in the ship, and the purposes for which the is designed.

      It has been remarked, that a ship of war should carry her lowest tier of cannon sufficiently above the surface of the water to be used when necessary. If this quality is neglected, a small ship will have the advantage of a large one, inasmuch as the latter cannot open her lower battery in a fresh side-wind, without being exposed to extreme danger, by receiving a great quantity of water in at her ports between-decks.

      A ship should be duly poised, so as not to dive or pitch heavily, but go smoothly and easily through the water, rising to the waves when they run high, or when the vessel has reduced her sail to the storm. If she is deficient in this article, the seas will frequently burst aboard, and strain the decks or carry away the boats. The masts are also greatly endangered from the same cause.

      A ship should sail well when large, or before the wind; but particularly when close-hauled, or sailing with a side-wind. She should also be enabled in the latter situation to keep her wind, without deviating much to leeward; to work and tack easily, and lie in a turbulent sea without straining violently.

      Many of our shipwrights have considered it extremely difficult, if not impracticable, to make a ship carry her cannon well, bear a competent sail, and advance swiftly through the water; because a very full bottom is necessary to acquire the two first qualities; whereas a sharp floor is better fitted to procure the latter. But when it is remembered, that a full ship will carry a much greater force of sail than a sharp one, a good artist may form the body so as to unite all these three qualities with the additional one of steering easily, by paying a proper attention to the following general rules.

      To make a ship carry a good sail. A flat floor-timber somewhat long, or the lower-futtocks pretty round, a streight upper-futtock, the top-timber to throw out the breadth aloft; at any rate to carry the main-breadth as high as the lower-deck. Now if the rigging be well adapted to such a body, and the upper-works lightened as much as possible, so that the whole contributes to lower the center of gravity, there will be no reason to doubt of the ship’s carrying a good sail.

      To make a ship steer well, and answer the helm readily. If the fashion-pieces be well formed, the tuck, or spreading-parts under the stern, carried pretty high; the midship-frame well forward; a considerable additional depth in the draught of water abaft more than forward; a great rake forward and none abaft; a snug quarter-deck and forecastle:

all these will greatly facilitate the steerage; and a ship that sails well will always steer easily.

      To make a ship carry her guns well out of the water. A long floor-timber, and not of great rising; a very full midship-frame, and low tuck, with light upper-works.

      To make a ship go smoothly through the water, and prevent her from pitching heavily. A long keel, a long floor, not to rise too high afore and abaft; but the area, or space contained in the fore-body, according to the respective weight it is destined to carry: all these are necessary to make a ship pass easily through the sea.

      To make a ship keep a good wind and drive little to leeward. A good length by the keel; not too broad, but pretty deep in the hold, which will occasion her to have a short floor-timber and a very great rising. As such a ship will meet with great resistance in driving sideways, and feel very little, in advancing or going ahead, she will fall very little to leeward.

      Being thus furnished with the methods to qualify a ship for the different purposes of navigation, the only difficulty remains to apply them properly in the construction, which must, in a great measure, be left to the judgment of the artist. The whole art then is evidently to form the body in such a manner, as that none of these qualities shall be entirely destroyed; and in giving the preference to that which is principally required in the service for which the ship is destined. As it therefore appears possible to unite them all in one vessel so that each of them may be easily discerned, a neglect of this circumstance ought to be attributed to the incapacity of the shipwright, who has not studied the principles of his art with proper application. See Naval Architecture, Building, and Ship.

      BOTTOMRY, bomerie, (from bottom) a contract for borrowing money on the keel or bottom of a ship; so that the commander binds the ship herself, that if the money be not paid at the time appointed, the creditors shall have the ship.

      Bottomry is also where a person lends money to a merchant or adventurer who wants it in traffic, and the lender is to be paid a much greater sum at the return of the ship, standing to the hazard of the voyage. Although the interest on this account be greater than the law commonly allows, it is yet not esteemed usury; because the money being supplied at the lenders risk, if the ship perishes, he shares in the loss thereof.

      BOW, epaule, in ship-building, the rounding part of a ship’s side forward, beginning at the place where the planks arch inwards, and terminated where they close at the stem or prow. See the article Head, where the bow of a ship is represented at large. It is proved by a variety of experiments, that a ship with a narrow bow is much better calculated for sailing swiftly, than one with a broad bow; but is not so well fitted for a high sea, into which she always pitches, or plunges, her fore-part very deep, for want of sufficient breadth to repel the volume of water,

which she so easily divides in her fall. The former of these is called by seamen a lean, and the latter a bluff bow.

      "The bow which meets with the least resistance in a direct course, not only meets with the least resistance in oblique courses, but also has the additional property of driving the least to leeward; which is a double advantage gained by forming the bow so as to give it that figure which will be the least opposed in moving through any medium." Bouguer’s Traité du Navire.

      On the Bow, in navigation, an arch of the horizon, comprehended between some distant object, and that point of the compass which is right-ahead, or to which the ship’s stem is directed. This phrase is equally applicable, when the object is beheld from the ship, or discovered by trigonometrical calculation: as, we saw a fleet at day-break bearing three points on the starboard bow; that is, three points, from that part of the horizon which is right ahead, towards the right hand. See also the article Bearing.

      BOWER. See the article Anchor.

      BOWLINE, bouline, a rope fastened near the middle of the leech, or perpendicular edge of the square sails, by three or four subordinate parts, called bridles. It is only used when the wind is so unfavourable that the sails must be all braced sideways, or close-hauled to the wind: in this situation the bowlines are employed to keep the weather, or windward, edges of the principal sails tight forward and steddy, without which they would be always shivering, and rendered incapable of service. See the articles Bridle, Close-hauling, and Sail.

      To check the Bowline, is to slacken it, when the wind becomes large.

      To BOWSE, palanquer, to draw on any body with a tackle, or complication of pullies, in order to remove it, or otherwise alter its state or situation: this is chiefly practised when such alteration or removal cannot be conveniently effected without the application of mechanical powers. This term is pronounced bowce.

      BOWSPRIT, beaupré, (from bow and sprit) a large boom or mast, which projects over the stem, to carry sail forward, in order to govern the fore part of a ship, and counter-act the force of the sails extended behind, or, in the after part. It is otherways of great use, as being the principal support of the fore-mast, by confining the stays whereby it is secured, and enabled to carry sail: these are great ropes stretching from the mast-head to the middle of the bowsprit, where they are drawn tight. See the articles Stay and Dead-eye.

      BOXES of the pump. See the article Pump.

      BOX-HAULING, in navigation, a particular method of veering a ship, when the swell of the sea renders tacking impracticable. It is performed by putting the helm a-lee, to throw the head up to windward, where meeting with great resistance from the repeated shocks of the waves on the weather bow, it falls off, or turns to leeward, with a quicker effort, and without advancing. The aftermost sails are at this time diminished, or perhaps altogether deprived of their force of action, for

a short time, because they would otherwise counteract the sails forward, and prevent the ship from turning. They are, however, extended as soon as the ship, in veering, brings the wind on the opposite quarter, as their effort then contributes to assist her motion of wheeling.

      Box-hauling is generally performed when the ship is too near the shore to have room for veering in the usual way. See Veering.

      BOXING, an operation in sailing somewhat similar to box-hauling. It is performed by laying the head-sails, or the sails in the fore-part of the ship, aback, to receive the greatest force of the wind in a line perpendicular to their surfaces, in order to throw the ship’s head back into the line of her course, after she had inclined to windward of it by neglect of the helmsman, or otherwise.

      BRACE, bras, a rope employed to wheel, or traverse the sails upon the mast, in a direction parallel to the horizon, when it is necessary to shift the sails that they may correspond with the direction of the wind and the course of the ship. Braces are, for this purpose, fastened to the extremities of the yards, which are called the yard-arms.

      All the braces of the yards are double, except those of the top-gallant, and spritsail-topsail yards. The mizen-yard is furnished with fangs, or vangs, in the room of braces. See the article Mizen.

      BRACKETS, consoles, short crooked timbers resembling knees. They are fixed under the galleries and frame of a ship’s head, to support the gratings.

      BRAILS, cargues, (breuils, Fr.) certain ropes passing through pullies on the mizen-mast, and afterwards fastened, in different places, on the hinder, or aftmost ridge of the sail, in order to truss it up to the mast, as occasion requires. See Mizen.

      Brails, is likewise a general name given to all the ropes which are employed to haul up, or collect to their yards, the bottoms, lower corners, and skirts of the other great sails, for the more ready furling them whenever it is necessary. The operation of thus drawing them together, is called brailing them up, or hauling them up in the brails. See the article Sail.

      BRAKE, brimbale, the handle, or lever, by which a common ship-pump is usually managed. It operates by means of two iron bolts thrust through the inner end of it; one of which resting across two cheeks or ears, in the upper-end of the pump, serves as a fulcrum for the brake, supporting it between the cheeks. The other bolt connects the extremity of the brake to the pump-spear, which draws up the box or piston, charged with the water in the tube. See the article Pump.

      BREADTH, largeur, the measure of a ship from side to side in any particular place: it is usually distinguished into extreme-breadth, ligne du fort, main-breadth, and top-timber-breadth. See the explanation of the plane of projection, in the article Naval Architecture.

      As the sides of the ship are formed by a variety of ribs, called timbers, and the areas of those timbers being of different breadths above and below, it is necessary to distinguish them in the construction, in order to form their several curves, and fix the corresponding pieces with more accu-

racy and precision. The part of every timber which encloses the greatest space from the middle-line of the ship’s length, is therefore called the main-breadth; and the distance between the upper-part of the same timber and the middle-line of the ship’s length, is called the top-timber-breadth.

      As the ship is also broader at the midship-frame than in any other point of her length, the distance between her sides in the main-breadth of that timber, is called the extreme-breadth of the ship.

      Breadth-sweep, the radius of the arch which forms part of the curve of a ship’s timber; as explained in the horizontal plane. See Naval Architecture.

      BREAKERS, brisans, a name given by sailors to those billows that break violently over rocks lying under the surface of the sea. They are distinguished both by their appearance and sound, as they cover that part of the sea with a perpetual foam, and produce a hoarse and terrible roaring, very different from what the waves usually have in a deeper bottom.

      When a ship is unhappily driven amongst breakers, it is hardly possible to save her, as every billow that heaves her upwards, serves to dash her down with additional force, when it breaks over the rocks or sands beneath it.

      BREAKING-BULK, the act of beginning to unlade a ship; or of discharging the first part of the cargo.

      To BREAK-UP, déchirer, to rip off the planks of a ship, and take her to pieces, when she becomes old and unserviceable.

      BREAK-WATER, the hulk, or hull, of some old ship or vessel, sunk at the entrance of a small harbour, to break off, and diminish the force of the waves, as they advance towards the vessels moored within.

      Break-water is also a sort of small buoy, fastened to a large one in the water, when the buoy-rope of the latter is not long enough to reach from the anchor, lying on the bottom, to the surface of the water. The use of this break-water is therefore to shew where the buoy swims. See Buoy.

      To BREAM, chauffer (from broom) to burn off the filth, such as grass, ooze, shells, or sea-weed, from a ship’s bottom, that has gathered to it in a voyage, or by lying long in a harbour. This operation is performed by holding kindled furze, faggots, or such materials, to the bottom, so that the flame incorporating with the pitch, sulphur, &c. that had formerly covered it, immediately loosens and throws off whatever filth may have adhered to the planks. After this, the bottom is covered anew with a composition of sulphur, tallow, &c. which not only makes it smooth and slippery, so as to divide the fluid more readily, but also poisons and destroys those worms which eat through the planks in the course of a voyage. Breaming may be performed either when the ship lies aground after the tide has ebbed from her, by docking, or by careening, which see; as also Coat and Stuff.

      BREAST-FAST, a sort of hawser, or large rope, employed to confine a ship sideways to a wharf or key, or to some other ship; as the head-fast confines her forward, and the stern-fast, abaft.

      BREAST-HOOKS, guirlandes, (from breast and hook) are thick pieces of timber, incurvated into the form of knees, and used to strengthen the fore-part of the ship, where they are placed at different heights directly across the stem, so as to unite it with the bows on each side.

      The breast-hooks are strongly connected to the stem and hawse-pieces by tree-nails, and by bolts, driven from without, through the planks and hawse-pieces, and the whole thickness of the breast-hooks, upon whose inside those bolts are forelocked, or clinched, upon rings. They are usually about one third thicker, and twice as long, as the knees of the decks which they support.

      There are generally four or five of these pieces in the hold between the kelson and the lower-deck, in the form of R, (plate I. Pieces of the Hull), upon the uppermost of which the planks of that deck are rabitted. There are two placed between the lower and the second decks, in the form of S, (plate I.), one of which is immediately beneath the hawse-holes, and the other under the second deck, whose planks are inlaid thereon, and upon which the inner-end of the bowsprit frequently rests.

      The fore-side of the breast-hook, which is convex, is formed so as to correspond with the place in which it is stationed, that is to say, it conforms exactly to the interior figure of that part of the bow where it ought to be fayed: accordingly the branches, or arms, of the breast-hooks, make a greater angle as they are more elevated above the keel, whilst the lower ones are more incurvated, and are almost figured like the crotches.

      As it is not necessary that the inner, or concave side of these pieces, should retain a regular form, the artificers frequently let them remain as thick as possible, to give additional support to the ship’s fore-part, where she sustains the whole shock of resistance in dividing the fluid, or in plunging down into it.

      It is evident that the connexion and solidity of the ship in this place will be reinforced in proportion to the strength and extent of the breast-hooks, so that they may cover a greater number of the head-timbers.

      BREAST-WORK, fronteau, a sort of balustrade or fence, composed of rails or mouldings, and frequently decorated with sculpture. It is used to terminate the quarter-deck and poop at the fore-ends, and to inclose the forecastle both before and behind.

      BREECHING, brague, (from breech) a rope used to secure the cannon of a ship of war, and prevent them from recoiling too much in the time of battle.

      It is fixed by fastening the middle of it to the hindmost knob or cascabel of the gun, which sailors call the pomiglion, or pummelion; the two ends of it are afterwards inserted through two strong rings on the sides of the carriage, and fastened to other bolts in the ship’s sides.

      The breeching is of sufficient length to let the muzzle of the cannon come within the ship’s side to be charged.

      The use of the breeching, as it checks the recoil of the cannon, is shewn in plate III. Deck, where it is expressed by e e, passing through the ring-bolts, f, on the side of the carriage, g, being fastened to the cascabel, h. It is also exhibited in the Midship-Frame, where it is employed to lash the cannon when it is housed during the course of a voyage. See the article Cannon.

      BREWING, the appearance of a collection of black and tempestuous clouds arising gradually from a particular part of the hemisphere, as the fore-runner of a storm.

      BRIDLES, the upper-part of the moorings laid in the king’s harbours to ride ships or vessels of war. See the article Moorings.

      Bridles of the bowline, pattes, the legs by which the bowline is fastened to different places on the edge or skirt of a large sail.

      We have already explained the use of the bowline; that it is employed to confine or keep steddy the windward or weather edges of the principal sails when they are braced for a side-wind. For as the current of air enters the cavity of the sail in a direction nearly parallel to its surface, it follows that the ridge of the sail must necessarily be shaken by the wind, unless it is kept tight forward; but as a single rope has not been found sufficient to confine the whole skirt of the sail, inasmuch as it only draws upon one part thereof, it became necessary to apply bridles or legs spreading out from the bowline. They are represented in the figures annexed to the article Sail.

      BRIG, or Brigantine, a merchant-ship with two masts. This term is not universally confined to vessels of a particular construction, or which are masted and rigged in a method different from all others. It is variously applied, by the mariners of different European nations, to a peculiar sort of vessel of their own marine.

      Amongst English seamen, this vessel is distinguished by having her main-sail set nearly in the plane of her keel; whereas the main-sails of larger ships are hung athwart, or at right angles with the ship’s length, and fastened to a yard which hangs parallel to the deck: but in a brig, the foremost edge of the main-sail is fastened in different places to hoops which encircle the main-mast, and slide up and down it as the sail is hoisted or lowered: it is extended by a gaff above, and by a boom below.

      To BRING by the lee. See To Broach-to.

      To BRING-TO, in navigation, caposer, to check the course of a ship when she is advancing, by arranging the sails in such a manner as that they shall counter-act each other, and prevent her either from retreating or moving forward. In this situation the ship is said to lie-by, or lie-to, having, according to the sea-phrase, some of her sails aback, to oppose the force of those which are full; or having them otherwise shortened by being furled, or hauled up in the brails.

      Bringing-to, is generally used to detain a ship in any particular station, in order to wait the approach of some other that may be ad-

vancing towards her: or to retard her course occasionally near any port in the course of a voyage.

      To Bring-up, a provincial phrase peculiar to the seamen in the coal-trade, signifying to anchor, &c.

      To BROACH-TO, in navigation, to incline suddenly to windward of the ship’s course when she sails with a large wind; or, when she sails directly before the wind, to deviate from the line of her course, either to the right or left, with such rapidity as to bring the ship’s side unexpectedly to windward, and expose her to the danger of oversetting.

      It is easy to conceive that a ship will carry much more sail before the wind than when she makes a progress with her side to its direction; because when the current of wind acts nearly endways on her hull, the pressure of it on the masts must be considerably diminished as she yields to its impulse and flies before it; and that if she carries a great sail at this time, it can only press her fore-part lower down in the water. But if, when she carries a great extension of sail, her side is suddenly brought to the wind, it may be attended with the most fatal consequences, as the whole force of it then pours like a torrent into the cavities of the sails. The masts therefore unavoidably yield to this strong impression, acting like levers on the ship sideways, so as nearly to overturn her, unless she is relieved by some other event, which may be also extremely pernicious, such as the sails rending to pieces, or the masts being carried away.

      It is generally occasioned by the difficulty of steering the ship; by the negligence or incapacity of the helmsman; or by some disaster happening to the helm or its machinery, which renders it incapable of governing the ship’s course.

      The difference between broaching-to and bringing by the lee, may be thus defined. Suppose a ship with a great sail set is steering south, having the wind N.N.W. then is west the weather, and east the lee-side.

      If by some deficiency in the steerage her head turns round to the westward, so as that her sails are all taken aback on the weather-side before she can be made to return to the course from which she has deviated, she is said to broach-to.

      If otherwise her head, from the same cause, has declined so far eastward as to lay her sails aback on that side which was the lee-side, it is called bringing her by the lee.

      BROADSIDE, bordee, in a naval engagement, the whole discharge of the artillery on one side of a ship of war above and below; as,

      We poured a broadside into the enemy’s ship, i. e. discharged all the ship’s cannon on one side upon her.

      She brought her broadside to bear on the castle; that is, disposed the ship so as to point all her cannon to it within point-blank range.

      A squall of wind laid the ship on her broadside; that is, pressed her down in the water, so as nearly to overturn her.

      BROKEN-BACKED, arcqué, the state or quality of a ship, which is so loosened in her frame, either by age, weakness, or some great strain, as to droop at each end.

      This circumstance is more common amongst French than the English or Dutch ships, owing partly to their great length, and to the sharpness of the floor, whose breadth is not sufficiently carried from the middle towards each end; and partly from being frequently obliged to have a great weight in both ends, when they are empty in the middle, at the time of discharging one cargo and taking in another. See Cambering.

      BUCCANEER, a name given to certain piratical rovers of various European nations, who formerly infested the Spanish coasts in America, and, under pretence of traffic with the inhabitants, frequently seized their treasure, plundered their houses, and committed many other depredations.

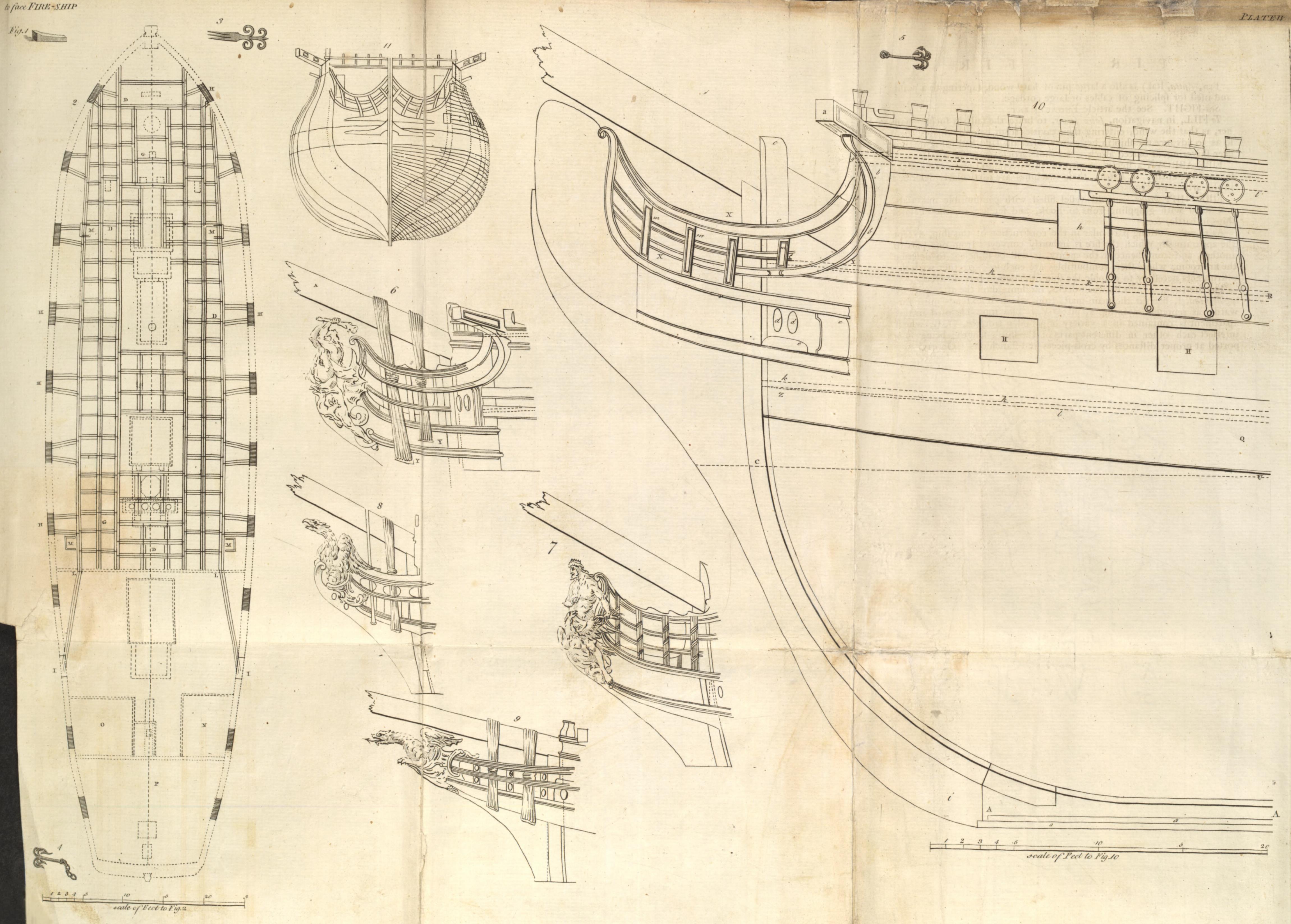

      Ship-BUILDING may be defined the manner of constructing ships, or the work itself, as distinguished from naval architecture, which we have rather considered as the theory or art of delineating ships on a plane, and to which this article may properly be understood as a supplement.

      The pieces by which this complicated machine is framed, are joined together in various places, by scarfing, rabitting, tenanting, and scoring. See those articles.

      During the construction of a ship, she is supported in the dock, or upon a wharf, by a number of solid blocks of timber placed at equal distances from, and parallel to, each other, as may be seen in the article Lanching; she is then said to be on the stocks.

      The first piece of timber laid upon the blocks is generally the keel; I say generally, because, of late, a different method has been adopted in some of the royal dock-yards, by beginning with the floor-timbers; the artists having found that the keel is often apt to rot during the long period of building a large ship of war. The pieces of the keel, as exhibited in plate I. are scarfed together, and bolted, forming one entire piece, A A. which constitutes the length of the vessel below. At one extremity of the keel is erected the stem. It is a strong piece of timber incurvated nearly into a circular arch, or, according to the technical term, compassing, so as to project outwards at the upper-end, forming what is called the rake forward. In small vessels this is framed of one piece, but in large ships it is composed of several pieces scarfed and bolted together, as expressed in the explanation of plate I. Pieces of the Hull, and in those terms separately. At the other extremity of the keel, is elevated the stern-post, which is always of one entire strait piece. The heel of it is let into a mortise in the keel, and having its upper-end to hang outwards, making an obtuse angle with the keel, like that of the stem: this projection is called the rake abaft. The stern-post, which ought to support the stern, contains the iron-work or hinges of the rud-

der, which are called googings, and unites the lower-part of the ship’s sides abaft. See the connexion of those pieces in the Elevation, pl. I.

      Towards the upper-end of the stern-post, and at right angles with its length, is fixed the middle of the wing-transom, where it is firmly bolted. Under this is placed another piece parallel thereto, and called the deck-transom, upon which the after-end of the lower-deck is supported. Parallel to the deck-transom, and at a proper distance under it, another piece is fixed to the stern-post, called the first transom, all of which serve to connect the stern-post to the fashion pieces. Two more transoms, called the second and third, are also placed under these, being likewise attached to the fashion pieces, into which the extremities of all the transoms are let, as exhibited in plate X. fig. 1. The fashion-pieces are formed like the other timbers of the ship, and have their heels resting on the upper-part of the kelson, at the after extremity of the floor ribbands.

      All these pieces, viz. the transoms, the fashion-pieces, and their top-timbers, being strongly united into one frame, are elevated upon the stern-post, and the whole forms the structure of the stern, upon which the galleries and windows, with their ornaments, are afterwards built,

      The stem and stern-post being thus elevated upon the keel, to which they are securely connected by knees and arched pieces of timber bolted to both; and the keel being raised at its two extremities by pieces of dead-wood, the midship floor-timber is placed across the keel, whereto it is bolted through the middle. The floor-timbers before and abaft the midship-frame are then stationed in their proper places upon the keel; after which the kelson, which, like the keel, is composed of several pieces scarfed together, is fixed across the middle of the floor-timbers, to which it is attached by bolts driven through the keel, and clinched on the upper-part of the kelson. The futtocks are then raised upon the floor-timbers, and the hawse-pieces erected upon the cant-timbers in the fore-part of the ship. The top-timbers on each side are next attached to the head of the futtocks, as already explained in the article naval Architecture. The frames of the principal timbers being thus completed, are supported by ribbands, as exhibited in the plate referred to from the article Ribbands.

      The ribs of the ship being now stationed, they proceed to fix on the planks, of which the wales are the principal, being much thicker and stronger than the rest; as is represented in the Midship-Frame. The harpins, which may be considered as a continuation of the wales at their fore-ends, are fixed across the hawse-pieces, and surround the fore-part of the ship. The planks that inclose the ship’s sides are then brought about the timbers, and the clamps, which are of equal thickness with the wales, fixed opposite to the wales within the ship; these are used to support the ends of the beams, and accordingly stretch from one end of the ship to the other. The thick stuff, or strong planks of the bottom within-board, are then placed opposite to the several scarfs of the timbers, to reinforce them throughout the ship’s length. The planks em-

ployed to line the ship, called the ceiling, or foot-waling, is next fixed in the intervals between the thick-stuff of the hold. The beams are afterwards laid across the ship to support the decks, and are connected to the side by lodging and hanging knees; the former of which are exhibited in their proper stations in plate III. F. and the hanging ones, together with the breadth, thickness, and position of the keel, floor-timbers, futtocks, top timbers, wales, clamps, thick-stuff, planks within and without, beams, decks, &c. are seen in the Midship-Frame.

      The cable-bits being next erected, the carlings and ledges, which are represented in plate III. and described in their proper places, are disposed between the beams to strengthen the deck. The water-ways are then laid on the ends of the beams throughout the ship’s length, and the spirketting fixed close above them. The upper-deck is then planked, and the string placed under the gunnel or plansheer in the waist. The disposition of those latter pieces on the timbers, viz. the water-ways, spirketting, upper-deck, string, and gunnel, are also represented in the Midship-Frame.

      They proceed next to plank the quarter-deck and forecastle, and to fix the partners of the masts and capsterns with the coamings of the hatches. The breast-hooks are then bolted across the stem and bow within-board, the step of the fore-mast placed on the kelson; and the riders, exhibited in the Midship-Frame, fayed on the inside of the timbers to reinforce the sides in different places of the ship’s length. The pointers, if any, are afterwards fixed across the hold diagonally to support the beams; and the crotches stationed in the after-hold to unite the half-timbers. The steps of the main-mast and capsterns are next placed; the planks of the lower-decks and orlop laid; the navel hoods fayed on the hawse-holes; and the knee of the head, or cutwater, connected to the stem. The figure of the head is then erected, and the trail-board and cheeks fixed on the sides of the knee.

      The taffarel and quarter pieces, which terminate the ship abaft, the former above, and the latter on each side, are then disposed; and the stern and quarter galleries framed and supported by their brackets. The pumps, with their well, are next fixed in the hold; the limber-boards laid on each side of the kelson, and the garboard strake fixed on the ship’s bottom next to the keel without.

      The hull being thus fabricated, they proceed to separate the apartments by bulk-heads, or partitions; to frame the port-lids; to fix the catheads and chess-trees; to form the hatchways and scuttles, and fit them with proper covers or gratings. They next fix the ladders whereby to mount or descend the different hatchways, and build the manger on the lower deck, to carry off the water that runs in at the hawse-holes when the ship rides at anchor in a sea. The bread-room and magazines are then lined, and the gunnel, rails, and gangways, fixed on the upper part of the ship. The cleats, kevels, and ranges, by which the ropes are. fastened, are afterwards bolted or nailed to the sides. in different places.

      The rudder, being fitted with its irons, is next hung to the stern-post; and the tiller, or bar, by which it is managed, let into a mortise at its upper-end. The scuppers, or leaden tubes, that carry the water off from the decks, are then placed in holes cut through the ship’s sides; and the standards, represented in the Midship-Frame, bolted to the beams and sides above the decks to which they belong. The poop-lanthorns are last fixed upon their cranes over the stern, and the bilge-ways, or cradles, placed under the bottom, to conduct the ship steadily into the water whilst lanching.

      As the various pieces, which have been mentioned above, are explained at large in their proper places, with references to their figures according to the plan of this work, it would have been superfluous to have entered into a more particular description of them here. It is perhaps necessary to observe, that as the theory ought always to precede the practice, this article would probably be much better understood by previously reading that of Naval Architecture, which may be considered as a proper introduction to it.

      BUILT, fabrique, the particular form or structure of a ship, by which she is distinguished from others of a different class or nation. Thus a ship is said to be frigate-built, galley-built, a hag-boat, a pink, a cat, &c. or to be English-built, French-built, American-built, &c.

      BULK-HEADS, certain partitions, or walls, built up in several places of a ship between two decks, either lengthwise or across, to form and separate the various apartments. Some of those which are built across the ship are remarkably strong. See the article Close-Quarters.

      BULL’S-EYE, cosse. a sort of small pulley in the form of a ring, having a rope spliced round the outer edge of it, (which is hollowed to admit of the rope) and a large hole in the middle for another rope to slide in. It is seldom used but for the main and fore bowline-bridles of some ships, particularly the colliers of Northumberland, &c. It is spliced in the outer-end of the bowline, and sliding along the bridle, to rest in the most apposite place, draws it tight above and below. This implement is more frequently used by Dutch than English seamen.

      BUMKIN, or Boomkin, boute-lof, a short boom or bar of timber, projecting from each bow of a ship, to extend the lower-edge of the fore-sail to windward; for which purpose there is a large block fixed on its outer end, through which the rope is passed that is fastened to the lower-corner of the sail to windward, called the tack; and this being drawn tight down, brings the corner of the sail close to the block, which being performed, the tack is said to be aboard.

      The bumkin is secured by a strong rope which confines it downward to the ship’s bow, to counter-act the strain it bears from the fore-sail above, dragging it upwards.

      BUNT, the middle part, or cavity of the principal square sails, as the main-sail, fore-sail, top-sails, and top-gallant-sails. If one of those sails is supposed to be divided into four equal parts, from one side to the

other, then may the two middle divisions, which comprehend half of the sail, be properly called the limits of the bunt.

      BUNTINE, etamine, a thin woollen stuff, of which the colours and signals of a ship are usually formed.

      BUNTLINES, cargues fond, are ropes fastened to the bottoms of the square sails, to draw them up to the yards: they are inserted through certain blocks above, or on the upper-part of the yard, whence passing down-wards on the fore-part of the sail, they are fastened below to the lower-edge in several places of the bolt-rope.

      BUOY, (bouée, Fr.) a sort of close cask, or block of wood, fastened by a rope to the anchor, to determine the place where the anchor is situated, that the ship may not come too near it, to entangle her cable about the stock, or the flukes of it.

      Buoys are of various kinds; as,

      Can-Buoys; these are in the form of a cone, (see plate II. fig. 8.) and of this construction are all the buoys which are floated over dangerous banks and shallows, as a warning to passing ships, that they may avoid them. They are extremely large, that they may be seen at a distance, and are fastened by strong chains to the anchors which are sunk for this purpose at such places.

      Nun-Buoys, are shaped like the middle frustum of two cones, abutting upon one common base, (plate II. fig. 9.) being casks, which are large in the middle, and tapering, nearly to a point, at each end.

      Wooden Buoys, are solid pieces of timber, sometimes in the shape of a cylinder, and sometimes of a nun-buoy; they are furnished with one or two holes, in which to fix a short piece of rope, whose two ends being spliced together make a sort of circle or ring called the strop.

      Cable-Buoys, common casks employed to buoy up the cable in different places from any rocky ground. In the harbour of Alexandria, in Egypt, every ship is moored with at least three cables, and has three or four of these buoys on each cable for this purpose.

      BUOY-ROPE, the rope which fastens the buoy to the anchor: it should be little more than equal in length to the depth of the water where the anchor lies, as it is intended to float near, or immediately above the bed of it, that the pilot may at all times know the situation thereof. See plate I. fig. 6. b is the anchor, c the buoy-rope, and d the buoy floating on the surface of the water.

      The Buoy-Rope is often extremely useful otherways, in drawing up the anchor when the cable is broke. It should therefore be always of sufficient strength for this purpose, or else the anchor may be lost through negligence.

      Slings of the Buoy, the ropes which are fastened about it, and by which it is hung: they are curiously spliced round it, something resembling the braces of a drum.

      To stream the Buoy, is to let it fall from the ship’s side into the water, which is always done before they let go the anchor, that it may not be retarded by the buoy-rope as it sinks to the bottom.

      BURTHEN, or Burden, port, (byrthen, Sax.) the weight or measure of any species of merchandize that a ship will carry when fit for sea.

      To determine the burthen, or, in other words, the tonnage, of a ship, it is usual to multiply the length of the keel into the extreme breadth of the ship within-board, taken along the midship-beam, and multiply the product by the depth in the hold from the plank joining to the kelson upwards, to the main-deck, and divide the last product by 94, then will the quotient be the burden required, in tons.

      BURTON, bredindin, a sort of small tackle, formed by two blocks or pullies, till the rope becomes three or four fold, and acquires an additional power in proportion.

      It is generally employed to tighten the shrouds of the top-masts, but may be otherways used to move or draw along any weighty body in the hold, or on the deck, as anchors, bales of goods, large casks, &c.

      BUSS, buche, (busse, Germ.) a ship of two masts, used by the English and Dutch in their herring fisheries. It is generally from fifty to seventy tons burthen; being furnished with two small sheds or cabins, one at the prow and the other at the stern; the former of which is employed as a kitchen.

      BUTT, about, the end of any plank in a ship’s side which unites with the end of another, continuing its length: when a plank is loosened at the end by the ship’s weakness or labouring, she is said to have started or sprung a butt.

      BUTTOCK, the convexity of a ship behind, under the stern; it is terminated by the counter above, and by the after part of the bilge below, by the rudder in the middle, and by the quarter on the side.

      BUTTONS. See the article Bonnet.

C.

CABIN, cabane, a room or apartment in a ship where any of the officers usually reside.

      There are many of these in a large ship; the principal of which is designed for the captain, or commander. In ships of the line, this chamber is furnished with an open gallery in the ships stern, as also a little gallery on each quarter. The apartments where the inferior officers or common sailors sleep and mess, are usually called births; which see.

      The bed-places built up for the sailors at the ships side in merchantmen, are also called cabins.

      CABLE, (cable, Fr.) a large, strong rope of a considerable length, used to retain a ship at anchor in a road, bay, or haven.

      Cables are of various sorts and sizes. In Europe they are usually manufactured of hemp; in Africa they are more frequently composed of bass, which is a sort of long straw or rushes; and in Asia of a peculiar sort of Indian grass.

      Cables, of what thickness soever, are generally formed of three ropes twisted together, which are then called strands: each of these is composed of three smaller strands; and those last of a certain number of rope-yarns. This number is therefore greater or smaller in proportion to the size of the cable required.

      There are some cables, however, manufactured of four strands; which are chiefly the production of Italy and Provence.

      All ships ought to be furnished with at least three good cables; the sheet cable, and the two bowers; best and small.

      All cables ought to be one hundred and twenty fathoms in length; for which purpose the threads or yarns must be one hundred and eighty fathoms; inasmuch as they are diminished one third in length by twisting. Besides this length, it is necessary to splice at least two cables together, in order to double the length when a ship is obliged to anchor in deep water. For although it is not common to anchor in a greater depth than forty fathoms, yet if there is only one cable, and the ship rides in a storm and tempestuous sea, the anchor will of necessity sustain the whole weight and violent jerking of the ship, in a direction too nearly perpendicular. By this effort it will unavoidably be loosened from its hold, and dragged by the ship, which thus driven from her station, is in immediate danger of being wrecked on the nearest rocks or shallows; whereas it is evident, that if the cable, by its great length, were to draw more horizontally on the anchor, it would bear a much greater force. See Anchor.

      The long cable is not so apt to break as the short one; because it will bear a great deal more stretching before it comes to the greatest strain:

it therefore resembles a sort of spring, which may be very easily extended, and afterwards recovers its first state, as soon as the force which extended it is removed. Besides all this, a ship will ride much smoother with a long cable, and be less apt to pitch, or plunge deep in the water with her fore-part.

      On the contrary, the short cable, being too nearly vertical to the anchor, cannot bear such a strain, because it is charged with a greater effort; and, as it will not bear stretching, may break at the first violent tug. The ship also rides with much greater difficulty, labours extremely, and often plunges all her fore-part under water.

      By what has been said on this subject, we may see how very necessary it is to furnish a ship with sufficiency of cables, or what is called ground-tackle; and what an inconsiderate policy it is in merchants to expose their vessels to such evident dangers from the want of them. For we may venture to assert, without violation of truth, that many good ships have been lost only on account of a deficiency in this important article.

      A cable ought neither to be twisted too much or too little; as in the former state it will be extremely stiff, and difficult to manage; and in the latter, it will be considerably diminished in its strength.

      All cables are to each other as the cubes of their diameters.

      The number of threads also, of which each cable is composed, being always proportioned to its length and thickness, the weight and value of it are determined by this number. Thus a cable of ten inches in circumference, ought to consist of four hundred and eighty-five threads; and weigh one thousand nine hundred and forty pounds: and on this foundation is calculated the following table, very useful for all persons engaged in marine commerce, who equip merchant-ships on their own account, or freight them for the account of others.

      Stream-Cable, a hauser, or rope, something smaller than the bowers, and used to moor the ship in a river or haven, sheltered from the wind and sea, &c.

      To bit the Cable. See the article Bits.

      To serve the Cable, is to bind it round with ropes, leather, or other materials, to prevent it from being galled, or fretted in the hawse by friction.

      Heave in the Cable! the order to draw it into the ship by winding about the capstern or windlass.

      Pay away the Cable! slacken it, that it may run out of the ship. This phrase is the same with veer away the cable. See the French term cable, and the phrases following it.

      Cable’s length, a measure of 120 fathoms, or of the usual length of the cable.

      To CALK, or Caulk, calfater, (probably from calage, Fr. hemp) to drive a quantity of oakum, or old ropes untwisted and drawn asunder, into the seams of the planks, or into the intervals where the planks are joined to each other in the ship’s decks or sides, in order to prevent the entrance of water. After the oakum is driven very hard into these seams, it is covered with hot melted pitch or resin, to keep the water from rotting it.

      Amongst the ancients, the first who made use of pitch in calking, were the inhabitants of Phæacia, afterwards called Corsica. Wax and resin appear to have been commonly used previous to that period; and the Poles at this time use a sort of unctuous clay for the same purpose, on their navigable rivers.

      CALL, sifflet, a sort of whistle, or pipe, of silver or brass, used by the boatswain and his mates to summon the sailors to their duty, and direct them in the different employments of the ship.

      As the call can be sounded to various strains, each of them is appropriated to some particular exercise; such as hoisting, heaving, lowering, veering away, belaying, letting-go a tackle, &c. The act of winding this instrument is called piping, which is as attentively observed by sailors, as the beat of the drum to march, retreat, rally, charge, &c. is obeyed by soldiers.

      CALM, the state of rest which appears in the air and sea when there is no wind stirring.

      That tract of the Atlantic ocean, situated between the tropic of Cancer and the latitude of 29° north; or the space that lies between the trade and the variable winds, is frequently subject to calms of very long duration: and hence it has acquired, amongst seamen, the name of the Calm Latitudes.

      A long calm is often more fatal to a ship than the severest tempest, because if the ship is tight and in good condition, she may sustain the latter without much injury; whereas in a long calm, the provision and water may be entirely consumed, without any opportunity of obtaining a fresh

supply. The surface of the sea in a continued calm is smooth and bright as a looking-glass.

      CAMBERED-DECK, the deck or flooring of a ship is said to be cambered, or to lie cambering, when it is higher in the middle of the ship’s length, and droops towards the stem and stern, or the two ends. Also when it lies irregular; a circumstance which renders the ship very unfit for war. See the article Broken-backed.

      CAN-BUOY. See Buoy.

      CAN-HOOKS, an instrument used to sling a cask by the ends of the staves: it is formed by fixing a broad and flat hook at each end of a short rope, and the tackle by which the cask so slung may be hoisted or lowered, is hooked to the middle of the rope. See plate II. fig. 8 and 9. The canhooks commonly used ashore by brewers, &c. are all iron, the middle part being fitted with a chain in the place of a rope.

      CANNON, a well known piece of artillery, mounted in battery on the decks of a ship, and used in all naval engagements.

      This engine has already been so accurately described by a variety of authors, that it may seem unnecessary to give a particular description of it here. As it forms, however, so important an article in all the military operations of the marine, it cannot, consistently with our plan, be omitted in this place.

      Cannon then may be defined a long, conical fire-arm of brass or iron, concave within, and smaller at the muzzle, or face, than at the opposite end.

      The principal parts of a sea-cannon, as represented in plate VII. fig. 3, are, 1st. The breech, A C, and its button, or cascabel, A h, called by seamen the pomiglion. The breech is generally understood to be the solid metal from the bottom of the concave cylinder to the cascabel, which is the extremity of the cannon opposite to its muzzle.

      2d. The trunnions, T, which project on each side like arms, and serve to support the cannon near the middle of its length: on these it may be poised, and held almost in equilibrio. As the metal is thicker at the breech than towards the mouth, the trunnions are placed nearer to that end than the other.

      3d. The bore, or caliber, which is comprehended between the dotted lines, and particularly expressed in the longitudinal section of a thirty-two-pounder, fig. 15. This represents the interior or concave cylinder, wherein the powder and shot are lodged with which the cannon is charged: the entrance of the bore is called the mouth.

      Names of the other parts, including the above plate VII. fig. 3.

      The use of these machines is to discharge upon the enemy globes or balls of iron, called shot, which are therefore of various sizes, in proportion to the caliber of the cannon. The diameter of the ball is always somewhat less than the bore of the piece, that it may be discharged with the greater ease, and not damage the piece by rubbing it too forcibly in its passage; and the difference between these diameters is called the windage of the cannon.

      The length of any cannon is always reckoned from the hind part of the base ring, or beginning of the cascabel, to the extremity of the muzzle. The second reinforce begins at the same circle where the first terminates; and the chace at the same circle where the second reinforce ends.

      The first reinforce therefore includes the base ring; the ogee nearest thereto; the vent-field; the vent-astragal, and first reinforce-ring. The second reinforce contains the ogee next to the first reinforce-ring and the second reinforce-ring. The chace comprehends the ogee nearest to the second reinforce-ring; the chace-girdle and astragal; and the muzzle and astragal. The trunnions are always placed on the second reinforce, so as that the breech part of the cannon may weigh something more than the muzzle-part, to prevent the piece from starting up behind when it is fired.

      A variety of experiments, made with great care and accuracy, prove that powder when on fire possesses at least 4000^* times more space than when in grains. Therefore if we suppose that the quantity of powder with which a cannon is charged possesses one fourth of a cubical foot in grains, it will, when on fire, occupy the space of about 1000 cubical feet. The same experiments evince also that the powder when inflamed, is dilated equally round its center. One grain of powder fired in the center of different concentric circles, round which grains of powder are placed, shall therefore set fire to all those grains at once.

      From this principle it necessarily follows, that powder, when fired in a cannon, makes at the same instant an equal effort on every part of the inside of the piece, in order to expand itself about its center every way, But as the resistance from the sides of the piece turns the action of the powder, so as to follow the direction of the bore of the cannon when it presses upon the ball, so as to force it outwards, it presses also on the breech of the cannon; and this gives the piece a motion backwards, that is called its recoil which, as we have already observed, is restrained by the breeching and the convexity of the decks. The recoil in

some degree diminishes the action of the powder upon the shot. But this cannot be avoided; for, if the carriages were fixed so as not to give way to this motion, the action of the powder, or the effort that causes the recoil, would tear them to pieces in a very short time.

      All pieces of artillery were formerly distinguished into the names of sakers, culverins, cannon, and demi-cannon; but at present their names are derived from the weight of the ball which they discharge: thus a piece that discharges a ball of twenty-four pounds, is called a twenty-four-pounder; and one that carries a shot of thirty-two pounds, a thirty-two-pounder; and so of the rest.

      The metal of cannon is not equally thick in all parts, but is in some measure proportioned to the force of the powder which it is to resist. At the breech, where the effort is strongest, the thickness of the metal is equal to the diameter of the corresponding shot. At the first reinforce, where this begins to slacken, the thickness is somewhat less than at the breech: at the second, where the force is still further diminished, the thickness is more reduced than at the first: and, by the same rule, the chace has less thickness than the second reinforce. The thickness of the chace gradually diminishes from the trunnions to the mouth of the piece; so that if a cannon was without cascabel, trunnion, and mouldings, it would exactly resemble the frustum of a cone, or a cone deprived of the small end.

      In a vessel of war, cannon are placed on a sort of wheeled sledge, called the carriage, of which fig. 16. plate VII. is the plan, and fig. 17. the elevation. This carriage is composed of two large pieces of plank, called sides or cheeks, connected together by means of cross-pieces, which are either bolts, axle-trees, or transoms. The two axle-trees are fixed across under the fore and hinder parts of the carriage, being supported at their extremities by solid wooden wheels called trucks. The transom is placed directly over the fore axle-tree, and exactly in the middle of the height of the cheeks or side-pieces. The height of the transom is equal to two diameters of the shot, and the breadth to one diameter.

      a. The cap-squares, commonly called clamps in the sea-service.

      b. Eye-bolts, by which one end of the clamp is fixed to the carriage.

      c. Joint-bolts, upon which the other end of the clamp is fixed over the trunnions; after which it is fore-locked, to prevent the cannon from starting out of its carriage when fired.

      b g. The cheeks or sides of the carriage.

      d. The transom-bolt.

      e. The bed bolt, upon which the bed rests to support the breech of the cannon. The bed is expressed by fig. 4.

      f. Hind axle-tree bolts.

      g. Breeching-bolts, with rings, through which the breechings pass.

      h. Loops, or eye-bolts, to which the gun-tackles are hooked.

      i. The fore axle-tree, with its trucks, k.

      l. The hind axle-tree, with its trucks, k.

The wheels are firmly retained upon their axle-trees by means of iron bolts passing through the latter without the wheels: these bolts are called linch-pins.

      The breadth of the wheels is always equal to that of the cheeks; but the height of the cheeks and diameter of the trucks must conform to the height of the gun-ports above the deck. The carriages of the lower tiers should therefore be so formed, that when the breech of the cannon lies upon the hind axle-tree, the muzzle of the piece should touch above the port, as expressed in fig. 19. which represents a cannon secured by its tackles and breechings, to prevent it from straining the ship as she rolls in a stormy sea.

      Cannon are charged by putting down into the bottom first a quantity of powder, one third or one half the weight of the ball. This is done with an instrument, fig. 7. termed a ladle which is a kind of cylindrical spoon, generally made of copper, and fixed to the end of a staff, called its handle. Upon the powder is put in a wad of rope-yarn, formed like a ball, which is pressed down upon the powder with the instrument expressed by fig. 17. called a rammer. Upon this wad is put the ball or shot; and to secure it in its place, another wad is firmly pressed down upon it, which operation is called ramming-home the wad and shot. The touch-hole of the piece is then filled with powder, from the upper-part of which a little train is laid that communicates with it. The use of this train is to prevent the explosion of the powder from operating directly upon the instrument employed to fire the piece, which in that case might be forced out of the hand of the gunner.

      In the modern pieces, a little gutter or channel is framed on the upper part of the breech, to prevent the train from being dispersed by the wind. This channel reaches from the touch-hole to the base-ring.

      The cannon being pointed to its object, or the place which it is intended to strike, the train is fired, and the flame immediately conveyed to the powder in the touch-hole, by which it is further communicated to that in the piece. The powder being kindled, immediately expands so as to occupy a much greater space than when in grains, and thus dilated it makes an effort on every side to force itself out. The ball making less resistance than the sides of the piece, upon which the powder presses at the same time, is driven out by its whole effort, and acquires that violent motion which is well known to the world.

      In plate VII. all the instruments necessary for charging cannon are exhibited. Besides these already described, there is the spunge, fig. 10. which is used to clean the piece after firing, and to extinguish any sparks that may remain behind. In the land-service, the handle of the spunge

is nothing else than a long wooden staff; but in ships of war this handle, that usually contains the rammer at its other end, is a piece of rope well stiffened by spun-yarn, which is for this purpose firmly wound about it. By this convenience the rammer becomes flexible, so that the piece is charged within the ship, as the person who loads it may bend and accommodate the length of the rammer to the distance between the muzzle and the ship’s side; being at the same time sheltered from the enemy’s musquetry, to which he would be exposed when using a wooden rammer without the ship. To spunge a piece therefore is to introduce this instrument into the bore, and thrusting it home to the farthest end thereof, to clean the whole cavity. The figures 8 and 9 represent spunges of a different kind; one of which is formed of sheep-skin, and the other of the strongest bristles of a hog. See the article Exercise.

      The worm, of which there are also different kinds, fig. 6. and 9. is used to draw the charge when necessary.

      The bit, or priming-iron, is a kind of large needle, whose lower end is formed into a gimblet, serving to clear the inside of the touch-hole, and render it fit to receive the prime.

      The lint-stock is a kind of staff about three feet long, to the end of which a match is occasionally fastened to fire the piece.

      The fluctuating motion of the sea renders it necessary to secure and confine the artillery in vessels of war, by several ropes and pullies, which are called the gun-tackles and breechings, without which they could never be managed in a naval engagement. The breeching has been already explained, as employed to restrain the recoil. The tackles * fig. 18, are hooked to ring-bolts in the sides of the carriage, and to other ring-bolts in the side of the ship, near the edges of the gun-ports, and are used to draw the piece out into its place after it is loaded. Besides these, there is another tackle hooked to the rear or train of the carriage, to prevent the cannon from rolling into its place till it is charged: this is called the train-tackle, and is exhibited in fig. 17.

      In ships of war, the cannon of the lower-decks are usually drawn into the ship during the course of an expedition at sea, unless when they are used in battle. They are secured by lowering the breech so as that the muzzle shall bear against the upper-edge of the port, after which the two parts of the breeching are firmly braced together by a rope which crosses them between the front of the carriage and the port; which operation is called frapping the breeching. The tackles are then securely fastened about it with several turns of the rope extended from the tackle and breeching, over the chace of the cannon, as represented in fig. 19.

      The service of the artillery, or the method of employing it in a naval action, is explained in the articles Engagement and Exercise. The manner of pointing, or directing them to different objects; the effects of different quantities of powder upon the cannonball; and the different lines described by its flight, are also treated at large in the article Range.

      We shall here subjoin a table of the length and weight of different cannon, for the information of those who may be entirely unacquainted therewith; and particularly our sea-gunners.

      For an account of the particular number of men appointed to manage the different degrees of cannon, and the arrangement or distribution of the cannon according to the several classes of ships, see Quarters and Rate.

      The following judicious remarks for increasing the strength of the British navy, by changing the cannon used in ships of war into others of equal weight but of greater bore, have been selected from the proposal of the late ingenious Mr. Robins.

      The advantage of large cannon over those of a smaller bore is so generally acknowledged, that a particular discussion of it might perhaps be spared. * * *

      "The most important advantage of heavy bullets is this, that with the same velocity they break holes out in all solid bodies in a greater proportion than their weight; that is, for instance, a twenty-four pound shot will, with the same velocity, break out a hole in any wall, ram-

part, or solid beam, in which it lodges, above eight times larger than will be made by a three pound shot; for its diameter being double, it will make a superficial fracture above four times as great as the three-pounder, (more of a smaller hole being closed up by the springing of the solid body than of a great one) and it will penetrate to more than twice the depth; by this means the firmest walls of masonry are easily cut through their whole substance by heavy shot, which could never be affected by those of a smaller caliber; and in ships the strongest beams and masts are hereby fractured, which a very great number of small bullets would scarcely injure.

      "To this last advantage of large cannon, which is indeed a capital one, there must be that of carrying the weight of their bullet in grape or lead shot, and thereby annoying the enemy more effectually than could be done by ten times the number of small pieces.

      "These are the principal advantages of large cannon, and hence it is no wonder that those entrusted with the care of the British navy have always endeavoured to arm all ships with the largest cannon they could with safety bear; and indeed, within these last hundred years, great improvements have been made on this head, by reducing the weight of many of the species of cannon, and thereby enabling the same ships to carry guns of a larger bore: and, very lately, the six pounders in some of the smaller ships have been changed for nine pounders of a larger fabric than usual, which hath been justly esteemed a very great addition, to the strength of those ships.

      "The importance then of allotting to all ships the largest cannon they can with safety bear being granted, it remains to shew on what foundation a change is proposed to be made in the fabric of all pieces from the present eighteen pounders downwards, so that they may be changed for others of the same, or less weight, but of a larger bore. This proposition turns on the following considerations.—The species of cannon proper for each ship is limited by the weight of the pieces; and when the charge and effort of the bullet are assigned, this weight in each species is, or ought to be determined by the following circumstances;

      "All this is to be done by a proper quantity of metal properly disposed; and when the pieces are secured from these accidents, all additional weight of metal, is not only useless but prejudicial.

      "Now what dimensions and weight of metal are more than sufficient for these purposes, we may learn from the present practice of the navy, in the fabric of the thirty-two pounders, the heaviest guns in common use; these are made to weigh (if the author’s information be right) from fifty-two to fifty-three hundred weight; that is somewhat less than an hundred and two-thirds for each pound of bullet.

      "From this then the author concludes, that any smaller piece, made upon the model of these thirty-two pounders, and having their weight proportioned in the same manner to the weight of their bullet, will fully answer all the purposes recited above, and will be of unexceptionable service.

      "And he founds his opinions on these two principles: first, that the strength of iron, or of any other metal, is in proportion to its substance; so that, for instance, where it has one half the substance, it has one half the strength; and this supposition, he presumes, will be scarcely contested. Secondly that the force of different quantities of powder fired in spaces which they respectively fill, is not exactly in the proportion of those quantities; but the lesser quantity has in proportion the least force: that is, for instance, the force of one pound of powder, in like circumstances, is less than one half the force of two pounds. And this principle the author has deduced from many repeated and diversified trials of his own; and he believes it will be found agreeable to all the observations which have been made, or shall be made, on this subject.

      "From these two considerations, he hopes, it will be granted him, that, if two pieces, a large one and a small one, are made with all their dimensions in proportion to the diameter of their respective bullets, and consequently their weights in the same proportion with the weights of their bullets, then the larger piece, with the same proportion of powder, will be more strained, will heat more, and recoil more than the smaller.

      "Hence then, as we are assured, that the present thirty-two pounders are of a sufficient strength and weight for all marine purposes, we have the greatest reason to suppose, that, if all the pieces of an inferior caliber were formed upon the same model, measuring by the diameter of the bullet, these smaller pieces would not be defective, either in strength or weight, but would be to the full as serviceable on ship-board, as the present pieces, which are so much overloaded with metal.

      "The author’s scheme then for augmenting the force of the present sea-batteries, is no more than this plain principle, that all ship-guns should be cast upon the model of the thirty-two pounders, measuring by the diameter of the respective bullet; so that for each pound of bullet, there should be allowed one hundred and two thirds of metal only.

      "The advantages of this scheme will appear, by the following comparison of the weight of the present pieces with their weight proposed by this new fabric.

      "Hence then it appears, that the twenty-four-pounders will be eased of six or eight hundred of useless metal; and instead of an inferior caliber now used, much larger ones of the same weight may be borne, especially when it is remembered, that this computation exceeds even the present proportion of the thirty-two-pounders; so that from the above projected eighteen pounders, for instance, two or three hundred weight may be safely taken."

      The changes then proposed by the author are these:

      "The nine pounders lately cast, being, as the author is informed, still lighter than what is here represented, they may perhaps be only transformed into twelve pounders; but this will be a very great addition of strength, and the twelve-pounders thus borne will be considerably lighter than the smallest nine-pounders now in use. The weight of the present three-pounders are not remembered exactly by the author; but he doubts not, but they are heavier than the proposed six-pounders, and may therefore be changed for them.

      "That many objections will be made to the present proposal is not to be questioned; but, as they will equally hold against the use of the present thirty-two-pounders, which are known to be guns of unexceptionable service, that alone, it is conceived, will be an answer.

      "If it be supposed (as ancient practice is always favourably heard) that the excesses in the proportionate weight of the small pieces must have been originally founded on some approved principle, or otherwise they could not have been brought into use, it may be answered, that a hundred years since there were four-pounders made use of, which were heavier than some of the present nine-pounders, and had the same prescription to plead in their behalf.—Perhaps the origin of this excess in the smaller pieces may be accounted for by supposing, that when guns are used in batteries on shore, their length cannot be in proportion to the diameter of their bore; because the parapet being of a considerable thickness, a short piece would, by its blast, ruin the embrasures; and the smaller pieces being for this reason made nearly of the same length with the larger, did hence receive their additional weight of metal. But this reason holds not at sea, where there is no other exception to the shortness of a piece, but the loss of force, which, in the instances here proposed, is altogether inconsiderable; for the old twelve-pounders, for example, being in length from nine feet to nine feet, and a half, the new ones here proposed will be from seven feet to seven and a half long. The difference in the force of the bullet, fired from these different pieces,

is but little; and it will hereafter appear, that in the present subject much greater differences than these are of no consequence.

      "If it should be said, that the new fabric here proposed must have the present allowance of powder (which in the smaller pieces is half the weight of the ball) diminished, and that it must be reduced to the rate of the thirty-two-pounders, which is only seven-sixteenths of the weight of the ball; it is answered, that if the powder in all ship-cannon whatever, was still farther reduced to one-third of the weight of the ball, or even less, it would be a considerable advantage, not only by the saving of ammunition, but by keeping the guns cooler and more quiet, and at the same time more effectually injuring the ships of the enemy^*; for with the present allowance of powder the guns are heated, and their tackles and furniture strained, and this only to render the bullet less efficacious than it would prove if impelled by a smaller charge. Indeed in battering of walls, which are not to be penetrated by a single shot from any piece whatever, the velocity of the bullet, how much soever augmented, still produces a proportionate effect, by augmenting the depth to which it penetrates: but the sides of the strongest ships, and the greater part of her timbers, are of a limited thickness, insufficient to stop the generality of cannon bullets, fired at a reasonable distance, even with a less charge than is here proposed. And it is a matter of experiment, that a bullet, which can but just pass through a piece of timber, and loses almost all its motion thereby, has a much better chance of rending and fracturing it, than if it passed through it with a much greater velocity.

      "That a much better judgment may be made of the reasonableness of this speculation, the author thinks proper to add (and he believes future experience will not contradict him) that a twelve-pounder, as here proposed, which is one of the smallest pieces at present under consideration, when charged with one-third of the weight of the bullet in powder, will penetrate a beam of the best seasoned toughest oak, to more than twenty inches depth; and if, instead of one solid beam, there are a

number of small ones, or of planks laid together; then allowing for rending and tearing, frequent in such cases, he doubts not, but it will often go through near double that thickness, and this any where within a hundred yards distance: that is, any where within that distance, which the most experienced officers have recommended for naval engagements. In the same distance, a bullet from the twelve-pounders now in use, charged with half the weight of powder, will penetrate about one-third part deeper: but if the efforts of each piece are compared together at five hundred yards distance, the differences of their forces will not be considerable. If this be so, it will not be asserted, I imagine, that the twelve-pounder here proposed is less useful, or less efficacious, for all naval purposes, than the weightier twelve-pounder hitherto made use of.

      "The author has in this proposal fixed on the thirty-two pounders, as the standard for the rest; because experience has long authorised them. But from the trials he has made, he is well satisfied, a much greater reduction of weight, than is here proposed, might safely take place; and that one fourth, or even one fifth of the weight of the bullet in powder, if properly disposed, is abundantly sufficient for every species of ship-guns ^* However, the author is far from desiring, that his speculations should be relied on in an affair of this nature, where he pretends not to have tried the very matter he proposes, but founds his opinion on certain general principles and collateral experiments, which he conceives, he may apply to the present case without error. He would himself recommend an experimental examination of this proposal, as the only one to which credit ought to be given. What he intends by the present paper, is to represent it as a matter worthy of consideration, and really such as it appeared to him: if those to whose censure he submits it, are of the same opinion, there is an obvious method of determining how far his allegations are conclusive; and that is by directing one of these pieces to be cast, a twelve-pounder for instance, and letting it be proved with the same proportion of powder allotted for the proof of the thirty-two-pounders: Then if this piece be fired a number of times successively on a carriage, and its recoil, and degree of heat be attended to, and if the penetration of its bullet into a thick butt of oak-beams or plank be likewise examined, a judgment may thence be formed, of what may be expected from the piece in real service; and the result of these trials will be the most incontestable confutation or confirmation of this proposal."

      CANNONADE, as a term of the marine, may be defined the application of artillery to the purposes of naval war, or the direction of its efforts against some distant object intended to be seized or destroyed, as a ship, battery, or fortress.

      Cannonading is therefore used in a vessel of war to take, sink, or burn the enemy’s ships, or to drive them from their defences ashore, and to batter and ruin their fortifications.

      Since a large man of war may be considered as a combination of floating batteries, it is evident that the efforts of her artillery must in general be greatly superior to those of a fortress on the sea-coast: I say in general, because on some particular occasions her situation may be extremely dangerous, and her cannonading ineffectual. Her superiority consists in several circumstances, as, the power of bringing her different batteries to converge to one point; of shifting the line of her attack so as to do the greatest possible execution against the enemy; or to lie where she will be the least exposed to his shot: and chiefly because, by employing a much greater number of cannon against a fort than it can possibly return, the impression of her artillery against stone-walls soon, becomes decisive and irresistible. Besides these advantages in the attack, she is also greatly superior in point of defence: because the cannon shot passing with rapidity through her sides, seldom do any execution out of the line of their flight, or occasion much mischief by their splinters: whereas they very soon shatter and destroy the faces of a parapet, and produce incredible havoc amongst the men, by the fragments of the stones, &c. A ship may also retreat when she finds it too dangerous to remain longer exposed to the enemy’s fire, or when her own fire cannot produce the desired effect. Finally, the fluctuating situation of a ship, and of the element on which she rests, renders the efforts of bombs very uncertain, and altogether destroys the effect of the ricochet, or rolling and bounding shot, whose execution is so pernicious and destructive in a fortress or land-engagement; both of which, however, a ship may apply with great success. See Range.

      The chief inconveniency to which a ship is exposed, on the contrary, is, that the low-laid cannon in a fort near the brink of the sea, may strike her repeatedly, on or under the surface of the water, so as to sink her before her cannonade can have any considerable efficacy.

      CANOE, a sort of Indian boat or vessel, formed of the trunk of a tree hollowed, and sometimes of several pieces of the bark fastened together.

      Canoes are of various sizes, according to the uses for which they may be designed, or the countries wherein they are formed. The largest are made of the cotton tree, some of which will carry between twenty and thirty hogsheads of sugar or molasses. Some are made to carry sail, and for this purpose are steeped in water till they become pliant, after which their sides are extended, and strong beams placed between them, on which a deck is afterwards laid that serves to support their sides. The other sorts very rarely carry sail, unless when going before the wind: their sails are made of a sort of silk grass or rushes. They are commonly rowed with paddles, which are pieces of light wood somewhat resembling a corn-shovel; and instead of rowing with it horizontally, like an oar, they manage it perpendicularly. The small ca-

noes are very narrow, having only room for one person in breadth, and seven or eight lengthways. The rowers, who are generally negroes or American savages, are very expert in managing their paddles uniformly, and in ballancing the canoes properly with their bodies, which would be difficult for a stranger to do, how well accustomed soever to the conducting of European boats, because the canoes are extremely light, and liable to be overturned.

      The American Indians, when they are under the necessity of landing to avoid a water-fall, or of crossing the land from one river to another, carry their canoes on their heads; till they arrive at a place where they can lanch them again.

      The following curious account of the canoes of the Esquimaux Indians in Labrador, has been lately transmitted to the author, which he apprehends will not be displeasing to his readers.

      The Esquimaux canoe has a light wooden frame, and the shell, instead of plank, is made with seal-skins sewed together, which are not only extended round the bottom and sides, but likewise over the top; forming a compleat deck, and having only one opening, conveniently framed and situated to admit the Indian into his seat. A flat hoop is fitted to this hole, rising about four inches, to which the surrounding skin is sewed. The Indian’s seal-skin jacket, being of a proper length, he can occasionally bind the skirt of it round the outside of this hoop; by which means he keeps the canoe free from water, and is enabled to pursue his game far from land or in stormy seas. His paddle is about ten feet long, light, and flat at each end, with which he both rows and steers with great velocity and exactness. Mr. Crantz, in his History of Greenland, informs us, that the young men in their exercise are taught to overset their canoes, and when the bottom is upward, to recover, by the dextrous management of their paddle, their former upright position, the men rising again either on the side by which they went down, or on the contrary, as they please. The construction of this extraordinary little vessel, so admirably well adapted to the purposes of its owner, does the greatest credit to the ingenuity of this savage people. Though natives of the extensive country of Labrador, they inhabit only the sea-coasts, particularly the islands, the interior parts being no less barren, and possessed by other wandering tribes, their perpetual enemies and superiors at land; so that they are reduced to almost an entire dependance upon the sea for the common necessaries of life. Seals-flesh and oil are amongst the chief articles of their food; and with the skins they make tents, canoes, and apparel. Those islands on which the sea-fowl breed, they visit for their eggs and young; and kill birds in the water with their darts. We are surprised, that provided thus, they should do so much execution amongst these creatures; but when we behold a party of savages, each in his canoe, with only his harpoon and his lance, pursue, attack, and kill the largest whale, how justly are we filled with admiration. The whale’s flesh and

oil they eat; and the tough substance of the gills, commonly called whalebone, they apply very ingeniously to a great variety of uses; trafficking with the overplus for such European goods as they want. In their language, the canoe is called kaiak, or man’s-boat, to distinguish it from umiak, the woman’s boat. The latter is a large boat managed by the women for transporting their families and possessions, when they shift their encampment from place to place, as most convenient for the particular hunting of the season. A kind of wolf-dog, natural to that country, is the only animal they breed for food. The same canoes, language, customs, and way of life, being common to the Greenlanders with the Esquimaux, it is evident they have been originally one people.

      There is a Greenland canoe in the Repository of the Royal Society, covered with seal-skins, and exactly conformable to the above description.

      CANTING, as a sea-phrase, denotes the act of turning any thing about.

      CANT-Timbers, in ship-building, those timbers which are situated at the two ends of a ship. They derive their name from being canted, or raised obliquely from the keel; in contradistinction to those whose planes are perpendicular to it. The upper-ends of those on the bow, or fore-part of the ship, are inclined to the stem; as those in the after, or hind-part, incline to the stern-post above. See the articles Timber and Naval Architecture.

      The principal of these last is the fashion-piece, which forms the outline of the counter, terminating it on the sides.

      CAP, chouquet, a strong, thick block of wood, used to confine two masts together, when the one is erected at the head of the other, in order to lengthen it. It is for this purpose furnished with two holes perpendicular to its length and breadth, and parallel to its thickness; one of these is Square, and the other round; the former being solidly fixed upon the upper-end of the lower-mast, whilst the latter receives the mast employed to lengthen it, and Secures it in this position.

      The principal caps of a ship are those of the lower-masts, which are fitted with a strong eye-bolt on each side, wherein to hook the block by which the top-mast is drawn up through the cap; the process of which is explained in the article Mast.

      The breadth of all caps is equal to twice the diameter of the top-mast, and the length to twice the breadth. The thickness of the main and fore-caps is half the diameter of their breadths; the mizen-cap three-sevenths, and the top-mast-caps two-fifths of their respective breadths.

      In the same manner as the top-mast slides up through the cap of the lower-mast, the top-gallant mast slides up through the cap of the top-mast. The cap is represented by fig. 9. plate II.

      CAPE, a promontory, or head-land, which projects into the sea farther than the rest of the coast.

      CAPPANUS, a name given by some authors to the worm which adheres to, and gnaws the bottom of a ship.

      The cappanus is extremely pernicious to ships, particularly in the East and West Indies: to prevent this, several ships have lately been sheathed with copper; the first trial of which was made on his majesty’s frigate Alarm.

      CAP-SQUARE. See the article Cannon.

      CAPSTERN, or Capstan, (cabestan, Fr.) a strong, massy column of timber, formed like a truncated cone, and having its upper extremity pierced with a number of holes to receive the bars or levers. It is let down perpendicularly through the decks of a ship, and is fixed in such manner, that the men, by turning it horizontally with their bars, may perform any work which requires an extraordinary effort.

      A capstern is composed of several parts, (see plate II. fig. 11.) where A is the barrel, b the whelps, c the drum-head, and d the spindle.

      The whelps rise out from the main body of the capstern like buttresses, to enlarge the sweep; so that a greater portion of the cable, or whatever rope encircles the barrel, may be wound about it at one turn, without adding much to the weight of the capstern. The whelps reach downwards from the lower part of the drum-head to the deck.

      plate II. fig. 10. The drum-head is a broad cylindrical piece of wood, resembling a mill-stone, and fixed immediately above the barrel and whelps. On the outside of this piece are cut a number of square holes, parallel to the deck, to receive the bars.

      The pivot, or spindle, d, which is shod with iron, is the axis or foot upon which the capstern rests, and turns round in the saucer, which is a sort of iron socket let into a wooden stock or standard, called the step, resting upon, and bolted to the beams.

      Besides the different parts of the capstern above explained, it is furnished with several appurtenances, as the bars, the pins, the pawls, the swifter, and the saucer, already described.

      The bars are long pieces of wood, or arms, thrust into a number of square holes in the drum-head all round, in which they are as the radii of a circle, or the spokes to the nave of a wheel. They are used to heave the capstern round, which is done by the men setting their breasts against them and walking about, like the machinery of a horse-mill, till the operation is finished.

      The pins, e, are little bolts of iron thrust perpendicularly through the holes of the drum-head, and through a correspondent hole in the end of the bar, made to receive the pins when the bars are fixed. They are used to confine the bars, and prevent them from working out as the men heave, or when the ship labours. Every pin is fastened to the drum-head with a small iron chain; and, that the bars may exactly fit their respective holes, they are all numbered.

      The pawls, f, fig. 10. are situated on each side of the capstern, being two short bars of iron, bolted at one end through the deck to the beams close to the lower part of the whelps; the other end, which occasionally turns round on the deck, being placed in the intervals of the whelps, as the capstern turns, prevents it from recoiling or turning back by any

sudden jerk of the cable as the ship rises on the sea, which might greatly endanger the men who heave. There are also hanging pawls g, g, fig. 12, used for the same purposes, reaching from the deck above to the drum-head immediately beneath it.

      The swifter, is a rope passed horizontally through holes in the outer ends of the bars, and drawn very tight: the intent of this is to keep the men steddy as they walk round, when the ship rocks, and to give room for a greater number to assist by pulling upon the swifter itself.

      The most frequent use of the capstern is to heave in the cable, and thereby remove the ship, or draw up the anchor. It is also used to wind up any weighty body, as the masts, artillery, &c. In merchant-ships it is likewise frequently employed to discharge or take in the cargo, particularly when consisting of weighty materials that require a great exertion of mechanical powers to be removed.

      There are commonly two capsterns in a ship of war, the main and the gear capstern; the former of which has two drum-heads, and may be called a double one. This is represented by fig. 12. of plate II. the latter is exhibited in fig. 11.

      Formerly the bars of the capstern went intirely through the head of it, and consequently were more than twice the length of the present ones; the holes were therefore formed at different heights, as represented in fig. 10. plate II. But this machine had several inconveniencies, such as the persons who heaved at the higher bars incommoding those at the lower ones; the bars being lifted or lowered by the persons who heaved at their opposite ends; some of the bars being too high, and others two low, &c. It has therefore been long intirely disused in the navy. Some of these sort of capsterns, however, are still retained in merchant ships, and are usually denominated crabs. The situation of the bars in a crab, as ready for heaving, is represented in fig. 13. plate II.

      To rig the Capstern, garnir, is to fix the bars in their respective holes, and thrust in the pins in order to confine them.

      Surge the Capstern, choquer, is the order to slacken the rope heaved round upon it, of which there is generally two turns and a half about the barrel at once, and sometimes three turns.

      To heave the Capstern, virer au cabestan, is to go round with it heaving on the bars, and drawing in any rope of which the purchase is created.

      To come up the Capstern, is to let go the rope upon which they had been heaving. See the French term Cabestan, and the phrases annexed thereto.

      To pawl the Capstern, is to fix the pawls to prevent it from recoiling during any pause of heaving.

      CAPTAIN of a ship of war, capitaine du haut bord, the officer who commands a ship of the line of battle, or a frigate carrying twenty or more cannon. The charge of a captain in his majesty’s navy is very comprehensive, inasmuch as he is not only answerable for any bad conduct in

the military government, navigation, and equipment of the ship he commands; but also for any neglect of duty, or ill management in his inferior officers, whose several charges he is appointed to superintend and regulate.

      On his first receiving information of the condition and quality of the ship he is appointed to command, he must attend her constantly, and hasten the necessary preparations to fit her for sea. So strict indeed are the injunctions laid on him by the lord high admiral, or commissioners of the admiralty, that he is forbid to lie out of his ship, from his arrival on board, till the day of his discharge, unless by particular leave from the admiralty, or his commander in chief.

      He is enjoined to shew a laudable example of honour and virtue to the officers and men, and to discountenance all dissolute, immoral, and disorderly practices, and such as are contrary to the rules of discipline and subordination, as well as to correct those who are guilty of such offences, as are punishable according to the usage of the sea.

      He is ordered particularly to survey all the military stores which are sent on board, and to return whatsoever is deemed unfit for service. His diligence and application are required to procure his complement of men; observing carefully to enter only such as are fit for the necessary duty, that the government may not be put to improper expence. When his ship is fully manned, he is expected to keep the established number of men complete, and superintend the muster himself, if there is no clerk of the check at the port.

      When his ship is employed on a cruising station, he is expected to keep the sea the whole length of time previously appointed; but if he is compelled by some unexpected accident to return to port sooner than the limited time, he ought to be very cautious in the choice of a good situation for anchoring, ordering the master, or other careful officers, to sound, and discover the depths of water, and dangers of the coast.

      Previous to any possibility of engagement with an enemy, he is to quarter the officers and men to the necessary stations according to their office or abilities, and to exercise them in the management of the artillery, that they may be more expert in the time of battle. See the articles Exercise and Quarters.

      His station in an engagement is on the quarter-deck; at which time he is expected to take all opportunities of annoying his enemy, and improving every advantage over him; to exhibit an example of courage and fortitude to his officers and crew; and to place his ship opposite to his adversary in such a position as that every cannon shall do effectual execution. See Engagement.

      At the time of his arrival in port after his return from abroad, he is to assemble his officers, and draw up a detail of the observations that have been made during the voyage; of the qualities of the ship, as to her trim, ballast, stowage, and manner of sailing, for the information and direction of those who may succeed in command; and this account

is to be signed by himself and officers, and to be returned to the resident commissioner of the navy at the port where the ship is discharged.

      CAREENING, faire abattre, (cariner, Fr.) the operation of heaving the ship down on one side, by the application of a strong purchase to her masts, which are properly supported for the occasion, to prevent them from breaking with so great a strain.

      Careening is used to heave one of the ship’s sides so low in the water, as, that her bottom being elevated above its surface on the other side, (See plate I. fig. 5.) may be cleansed of any filth which adheres to it, by Breaming, which see.

      When a ship is laid on a careen, every thing is taken out of her: she is also said to careen, when inclining to one side at sea, as pressed with a weight of sail.

      CARGO, chargement, the whole lading, or quantity, of whatever species of merchandise a ship is freighted with, in order to proceed from port to port.

      CARLINGS, entremises, short pieces of timber ranging fore and aft, from one of the deck beams to another, into which their ends are scored: they are used to sustain and fortify the smaller beams of the ship, and are exhibited in the Deck, plate III.

      CARPENTER of a ship, charpentier, an officer appointed to examine and keep in order the frame of the ship, together with her masts, yards, boats, and all other wooden machinery.

      It is his duty in particular to keep the ship tight; for which purpose he ought frequently to review the decks, and sides, and to calk them when it is found necessary. In the time of battle he is to examine up and down, with all possible attention, in the lower apartments of the ship, to stop any holes that may have been made in the sides by shot, with wooden plugs provided, of several sizes, for that purpose.

      CARTEL, cartel, a ship commissioned in time of war to exchange the prisoners of any two hostile powers; also to carry any particular request or proposal from one to another: for this reason the officer who commands her is particularly ordered to carry no cargo, ammunition, or implements of war, except a single gun for the purpose of firing signals.

      CASTING, in navigation, abattre, the motion of falling off, so as to bring the direction of the wind on either side of the ship after it had blown for some time right a-head.

      This term is particularly applied to a ship when her anchor first loosens from the ground, when she is about to depart from any place where she had anchored; and as she had probably rested at anchor with her head to windward, it is plain she must turn it off, so as to fill the sails before she can advance in her course, which operation is called casting.

      Hence she is said to cast the right way, or the wrong way. See Trim.

      CAT, chatte, a ship employed in the coal trade, formed from the Norwegian model. It is distinguished by a narrow stern, projecting quarters, a deep waiste, and by having no ornamental figure on the prow.

      These vessels are generally built remarkably strong, and carry from four to six hundred tons; or, in the Language of their own mariners, from twenty to thirty keels of coals.

      Cat, capon, is also a sort of strong tackle, or complication of pullies, to hook and draw the anchor perpendicularly up to the cat-head. The use of this machine is represented in plate II. fig. 14.

      CATAMARAN, catimoran, a sort of raft or float, formed by the fastening a number of poles to each other sideways, and laying boards, planks, &c. on the top, so as to convey goods or passengers to some distant place by water when no boat can be procured. This, however, can only be performed when the surface of the water is not much agitated.

      CAT-HARPINGS, a purchase of ropes employed to brace in the shrouds of the lower masts behind their yards, for the double purpose of making the shrouds more tight, and of affording room to draw the yards in more obliquely, to trim the sails for a side-wind, when they are said to be close-hauled.

      CAT-HEADS, bossoirs, two strong short beams of timber, which project almost horizontally over the ship’s bows, on each side of the bow-sprit, being like two radii which extend from a center taken in the direction of the bow-sprit.

      That part of the cat-head which rests upon the fore-castle is securely bolted to the beams: the other part projects like a crane, as above described, and carries in its extremity two or three small wheels, or sheaves, of brass, or strong wood, about which a rope called the cat-fall passes, and communicates with the cat block, which also contains three sheaves. The machine formed by this combination of pullies is called the cat, which serves to pull the anchor up to the cat head without tearing the ship’s side with its flukes.

      The cat-head also serves to suspend the anchor clear of the bow, when it is necessary to let it go: it is supported by a sort of knee, which is generally ornamented with sculpture.

      The cat-block is fitted with a large and strong hook, which catches the ring of the anchor when it is to be drawn up. See a representation of this article plate II. fig. 14.

      CATS PAW, echars, a light air of wind perceived at a distance in a calm, by the impression made on the surface of the sea, which it sweeps very lightly, and then decays.

      CAULKING. See the article Calking.

      CEILING, the inside planks of a ship. See Foot-waleing.

      CENTER of a Fleet, or Squadron, corps de bataille, the middle of the line, which is always the station of the admiral or commander in chief, and ought to be the strongest proportionably, as it reaches from the van and rear. See Line of Battle.

      To CHAFE, racquer, is to rub or fret the surface of a cable, mast, or yard, whilst the ship is agitated by the motion of the sea, or otherwise.

      CHAIN-PUMP. See the article Pump.

      CHAINS, cadenes, strong links or plates of iron, the lower ends of which are bolted through the ship’s side to the timbers.

      They are placed at short distances from each other on the ship’s out-side, as being used to contain the blocks called dead-eyes, by which the shrouds of the masts are extended. The disposition of the chains, and that of their channels, is represented by the letters I, I, in the plane of Elevation, plate I. as also by fig. 16, plate II.

      CHAIN-SHOT, a particular kind of shot formed by fastening two cannon-balls together with a short chain, and designed to mangle and ruin a ship’s sails and rigging, or to destroy her masts and yards. See Shot.

      Top CHAIN, a chain to sling the sail-yards in the time of battle, in order to prevent them from falling down when the ropes, by which they are hung, happen to be shot away, or rendered incapable of service.

      CHAIN-WALE. See Channel.

      CHANNEL, manche, in hydrography, the deepest part of a river, harbour, or streight, which is most convenient for the track of shipping.

      CHANNELS, or Chain-Wales of a ship, porte bossoirs, broad and thick planks projecting horizontally from the ship’s out-side, a-breast of, and somewhat behind, the masts. See plate II. fig. 16.

      They are formed to extend the shrouds from each other, and from the axis or middle line of the ship, so as to give a greater security and support to the masts, as well as to prevent the shrouds from damaging the gun-wale, or being hurt by rubbing against it. See also Shroud.

      Every mast has its chain-wales, which are either built above or below the second deck-ports in a ship of the line: they are strongly connected to the side by knees, bolts, and standards, besides being confined thereto by the chains, whose upper ends pass through notches on the outer edge of the chain-wales, so as to unite with the shrouds above.

      CHAPELING a ship, faire chapelle, the act of turning her round in a light breeze of wind when she is close-hauled, so as that she will lie the same way she did before. This is commonly occasioned by the negligence of the steersman, or by a sudden change of the wind.

      CHARGE of a cannon. See the article Cannon.

      CHART, (charta, Lat.) a marine map or draught, upon which are represented the coasts, isles, banks, rocks, and dangers of the sea, together with the rumbs of the wind, and the entrance of bays and rivers, whereby to shape and regulate the various courses of a ship in her voyage.

      CHARTER-PARTY, charte-partie, a deed or writing made between merchants and sea-faring men, concerning their merchandise and maritime affairs.

      A charter-party of affreightment settles the agreement in relation to the freight and cargo of a ship between the merchant and master, or commander of the vessel. It binds the master to deliver the cargo in good condition at the place where his ship is to be discharged, &c.

      In those charter-parties, if the dangers of the sea are excepted, it has been adjudged that such exception extends as well to any danger upon sea from ships of war or pirates, as to common hazards by shipwreck, tempests, &c.

      CHASE, a vessel pursued by some other, which she apprehends or knows to be an enemy.

      Bow Chase, a cannon situated in the fore-part of a ship to fire upon any object a-head of her.

      Stern Chases, the cannons which are placed in the after-part of a ship’s gun-room, pointing a-stern, and intended to strike any ship which chases her, or other object in her rear.

      CHASING, the act of pursuing a ship or fleet, supposed or known to be hostile. The admiral displayed the signal for a general chace, i. e. gave the alarm to the whole fleet or squadron to pursue some other fleet in sight.

      CHEARLY, a phrase which usually implies heartily, chearfully, or quickly, as row chearly in the boats! lower away chearly! i. e. row heartily, lower speedily, &c.

      CHEEKS of the mast, jottereaux, the faces or projecting parts on each side of the masts, used to sustain the frame of the top, together with the top-mast, which rests immediately upon them.

      CHESTREES, taquets d’ amure, two pieces of wood bolted perpendicularly, one on the starboard, and the other on the larboard side of the ship. They are used to confine the clue, or lower corners of the main-sail; for which purpose there is a hole in the upper part through which the rope passes that usually extends the clue of the sail to windward. See the article Tack.

      The chess-trees are commonly placed as far before the main-mast as the length of the main-beam.

      Clerk of the CHECK, an officer in the royal dock-yards, who keeps a muster or register of all the men employed aboard his majesty’s ships and vessels, and also of all the artificers and others in the service of the navy at the port where he is settled.

      To CHINSE, is to thrust oakum into a seam or chink with the point of a knife or chissel. This is chiefly used as a temporary expedient when calking cannot be safely or conveniently performed.

      CHOCK, a sort of wedge used to confine a cask, or other weighty body, in a certain place, and to prevent it from fetching way when the ship is in motion, &c.

      CLAMPS, bauquieres, thick planks in a ship’s side, used to sustain the ends of the beams. See the article Midship Frame.

      The clamps extend from the stem to the fashion-pieces of the stern, including the whole interior range of the side. They are placed close under each deck so as to be securely fayed to all the timbers, to which they are fastened by nails driven through the clamp, and penetrating two thirds of the thickness of the timbers.

      The clamps of the lower and second decks ought to be equal in thickness to half the corresponding timbers in that part, and as broad as can be procured. In their disposition it is essentially necessary to avoid their being wounded by the ports, as the strength and firmness of a ship greatly depend on the substance and solidity of those pieces which lie horizontally in her frame.

      Clamps are also small crooked plates of iron, fore-locked upon the trunnions of the cannon, to keep them steddy in their carriages at sea. These, however, are more properly termed cap-squares. See Cannon.

      Clamps of the latter sort are likewise frequently used to fasten the masts or bowsprits of small vessels or boats.

      CLAWING, or CLAWING-OFF, chicaner, in navigation, the act of beating or turning to windward from a lee-shore, so as to acquire a sufficient distance from it, to escape the dangers of shipwreck, which often attend so hazardous a situation.

      CLEAR, as a naval term, is variously applied to the weather, the sea-coasts, cordage, navigation, &c. The weather is said to be clear (fin) when it is fair and open, as opposed to cloudy or foggy.

      The sea-coast is called clear (saine) when the navigation is not interrupted, or rendered dangerous by rocks, sands, or breakers, &c.

      It is expressed of cordage, cables, &c. when they are unembarrassed or disentangled so as to be ready for immediate service. It is usually opposed to foul, in all those senses.

      CLEATS, taquets, pieces of wood of different shapes, used occasionally to fasten ropes upon in a ship: some of them have one, and some two arms, fig. 17, a, plate II. others are hollowed in the middle, and have no arms at all, fig. 17, b: these are nailed to the deck or sides to fasten any thing to.

      CLINCH, that part of a cable, or other rope, which is fastened to the ring of the anchor.

      CLINCHER-WORK, bordée à quoin, the disposition of the planks in the side of any boat or vessel, when the lower edge of every plank over-lays the next under it, like the slates on the top of a house.

      CLOSE-HAULED, in navigation, au plus pres, the general arrangement or trim of a ship’s sails, when she endeavours to make a progress in the nearest direction possible towards that point of the compass from which the wind bloweth.

      In this manner of sailing the keel commonly makes an angle of six points with the line of the wind; but sloops, and some other small vessels, are said to sail almost a point nearer. All vessels, however, are supposed to make nearly a point of lee-way, when close-hauled, even when they have the advantage of a good sailing-breeze and smooth water. The angle of lee-way, however, enlarges in proportion to the increase of the wind and sea.

      In this disposition of the sails, they are all extended sideways on the ship, so that the wind, as it crosses the ship obliquely toward the stern

from forwards, may fill their cavities. But as the current of wind also enters the cavities of the sails in an oblique direction, the effort of it, to make the ship advance, is considerably diminished: she will, therefore, make the least progress when sailing in this manner.

      The ship is said to be close-hauled, because at this time her tacks, or lower corners of the principal sails, are drawn close down to her side to windward; the sheets hauled close aft; and all the bow-lines drawn to their greatest extension, in order to keep the sails steddy.

      CLOSE-QUARTERS, certain strong barriers of wood stretching across a merchant-ship in several places. They are used as a place of retreat when a ship is boarded by her adversary, and are therefore fitted with several small loop-holes, through which to fire the small arms, whereby the ship’s crew may defend themselves and annoy the enemy. They are likewise furnished with several small caissons, called powder-chests, which are fixed upon the deck, and filled with powder, old nails, &c. and may be fired at any time from the close-quarters upon the boarders.

      We have known an English merchant-ship, of sixteen guns, and properly fitted with close-quarters, defeat the united efforts of three French privateers who boarded her in the late war, after having engaged at some distance nearly a day and a half with very few intervals of rest. Two of the cruisers were equipped with twelve guns each, and the other with eight. The French sailors were, after boarding, so much exposed to the continued fire of musquetry, and coehorns charged with granadoes, that a dreadful scene of carnage ensued, in which the decks were soon covered with the dead bodies of the enemy, several of which the boarders, in their hurry to escape, had left behind.

      CLUE of a sail, point, the lower corner, and hence

      Clue-Garnets, cargues point, are a sort of tackles fastened to the clues, or lower corners of the mainsail and foresail, to truss them up to the yard as occasion requires, which is usually termed clueing-up the sails.

      Clue-Lines are for the same purpose as clue-garnets, only that the latter are confined to the courses, whereas the clue-lines are common to all the square sails. See these ropes, as represented in the article Sail.

      COACH, or COUCH, a sort of chamber or apartment in a large ship of war near the stern. The floor of it is formed by the aftmost part of the quarter-deck, and the roof of it by the poop: it is generally the habitation of the captain.

      COAMINGS of the hatches, certain raised borders about the edge of the hatches of a ship, to prevent the water which may flow in upon the deck at sea, from running down into the lower apartments. They are represented in the Deck, plate III. as enclosing their respective hatchways.

      COASTING, in navigation, aller terre à terre, the act of making a progress along the sea-coast of any country. The principal arti-

cles relating to this part of navigation are, the observing the time and direction of the tide; knowledge of the reigning winds; of the roads and havens; of the different depths of the water, and qualities of the ground.

      COASTING-PILOT, cotier, a pilot, who by long experience has become sufficiently acquainted with the nature of any particular coast, and of the requisites mentioned in the preceding article, to conduct a ship or fleet from one part of it to another.

      COAT, braye, a piece of tarred canvas nailed round that part of the masts and bowsprit which joins to the deck, or lies over the stem of a ship. It is used to prevent the water from running down into the hold, or between the decks.

      Besides those above mentioned, there is a coat for the rudder nailed round the hole where the rudder traverses in the ship’s counter. This hole is represented at the upper part of the stern-post, exhibited in plate X.

      Coat, suage, also implies the materials or stuff with which the ship’s sides or masts are varnished, to preserve them from the sun and weather, as turpentine, tar, &c. In this sense we say, "Give her a good coat of tar."

      COBBING, a punishment sometimes inflicted at sea. It is performed by striking the offender a certain number of times on the breech with a flat piece of wood called the cobbing-board. It is chiefly used as a punishment to those who quit their station during the period of the night-watch.

      COBOOSE, fogone (kambuis, Dutch), a sort of box or house to cover the chimney of some merchant-ships. It is somewhat resembling a centry-box, and generally stands against the barricade on the fore part of the quarter-deck.

      COCK-PIT of a ship of war, the apartments of the surgeon and his mates, being the place where the wounded men are dressed in the time of battle, or otherwise. It is situated under the lower-deck.

      COCKSWAIN, or COXEN, the officer who manages and steers a boat, and has the command of the boat’s crew. It is evidently compounded of the words cock and swain, the former of which was anciently used for a yawl or small boat, as appears by several authors ^*; but it has now become obsolete, and is never used by our mariners.

      COIL, (cueillir, Fr.) the manner in which all ropes are disposed aboard ships for the conveniency of stowage, because

      COILING, rouer, implies a sort of serpentine winding of a cable or other rope, that it may occupy a small space in the ship. Each of the windings of this sort is called a fake, and one range of fakes upon the same line is called a tier; there are generally from five to seven fakes

in a tier; and three or four tiers in the whole length of the cable. This, however, depends on the extent of the fakes. The smaller ropes employed about the sails are coiled upon cleats at sea, to prevent their being entangled amongst one another in traversing, contracting, or extending the sails.

      COLLAR, collier d’ etai, a name given to the lower part of any of the principal stays of the masts, or the part by which the stay is confined at its lower end. Thus the collar of the main-stay connects the lower end of the stay to the ship’s stem. See the article Stay.

      COLOURS, the flags or banners which distinguish the ships of different nations. See the articles Ensign, Jack, and Pendant.

      COLLIERS, certain vessels employed to carry coals from one port to another, chiefly from the northern parts of England to the capital, and more southerly parts, as well as to foreign markets. This trade is known to be an excellent nursery for seamen, although they are often found, from the constitution of their climate, to be not so well calculated for southern navigation.

      COMMAND, in the royal navy, implies the rank and power of an officer who has the management of a ship of war, of whatever kind, under twenty guns, as sloops of war, armed ships, or bomb-vessels. He is intitled master and commander, capitaine du petit état, and ranks with a major in the king’s army.

      Commander is also expressed of a large wooden mallet used on sundry occasions in a ship.

      COMMISSIONERS of the navy, certain officers appointed to superintend the affairs of the marine, under the direction of the lord-high-admiral, or lords commissioners of the admiralty.

      The duty of these officers does not extend to the internal government of ships invested with a military command, either at sea or in the port. It is more immediately concerned in the building, docking, repairing, and cleaning of ships in the dock-yards. In consideration of this, all ships of war are commissioned from a report of their qualities presented to the Admiralty by the Navy-board.

      They have also the appointment of some of the inferior sea-officers, as surgeons, and masters of ships.

      The principal officers and commissioners residing at the board are, 1, The comptroller. 2, Two surveyors, who are shipwrights. 3, Clerk of the acts. 4. Comptroller of the treasurer’s accounts. 5. Comptroller of the victualling accounts. 6. Comptroller of the store-keeper’s accounts. 7. An extraordinary commissioner. Besides these, there are three resident commissioners, who manage the affairs of the dock-yards at Chatham, Portsmouth, and Plymouth, under the direction of the board at the Navy-office.

      COMMODORE, chef d’ escadre, a general officer in the British marine, invested with the command of a detachment of ships of war destined on any particular enterprise; during which time he bears the rank of brigadier-general in the army, and is distinguished from the inferior

ships of his squadron by a broad red pendant tapering towards the outer-end, and sometimes forked. The word is corrupted from the Spanish comendador.

      Commodore is also a name given to some select ship in a fleet of merchantmen, who leads the van in time of war, and carries a light in his top, to conduct the rest and keep them together.

      COMPANION, a sort of wooden porch placed over the entrance or stair case of the master’s cabin in a merchant-ship.

      COMPANY, the whole crew of any ship, including her officers.

      COMPASS, an instrument employed to determine the ship’s course at sea, and consisting of a card and two boxes. The card, which is calculated to represent the horizon, is a circle divided into thirty-two equal parts, by lines drawn from the center to the circumference, called points or rumbs. The intervals between the points are also subdivided into equal parts called degrees, 360 of which complete the circle; and consequently the distance or angle comprehended between any two rumbs is equal to 11°, 15´ The four principal rumbs are called the cardinal points, deriving their names from the places to which they tend; viz. the two which extend themselves under the meridian, opposite to each other, pointing to the north and south, are called the north and south points. That which is towards the right hand as we look north is termed east, and its opposite the west point. The names of all the inferior ones are compounded of these, according to their situation. Along the north and south-line is fixed a steel needle, which being touched by the load-stone acquires a certain virtue that makes it hang nearly in the plane of the meridian, and consequently determine the direction of the other points toward the horizon.

      The compass being of the utmost importance to the purposes of navigation, it is reasonable to expect that the greatest attention should be used in its construction, and every attempt to improve it carefully examined, and adopted, if proper. Great errors and irregularities, however, have been found incident to the construction of common compasses, arising from the shape of their needles, by which they have not only turned from the true direction, but from that of each other ^*.

To remedy these inconveniencies, the learned Dr. Knight was induced to contrive a new sea-compass, which is now used aboard all our vessels of war ║. The needles of the other instruments were generally composed of two pieces of steel wire, bent in the middle, and approaching each other towards the ends, where they met. Others were made of one piece of steel of a spring temper, and broad towards the ends, but tapering towards the middle; but the needle in Dr. Knight’s compass is quite straight, and square at the ends, and consequently has only two poles, although the curves are a little confused about the hole in the middle. Needles of this construction, after vibrating a long time, will always point exactly in the same direction; and if drawn ever so little on one side, will return to it again, without any sensible difference.

      In order to illustrate the above description, we have exhibited a view of the several parts of the compass, plate II. where fig. 19, is the card, with the needle N S, and its cap fixed upon it.

      Fig. 21, is the pedestal that supports the card, containing a sewing needle fixed in two small grooves to receive it, by means of a collet C, in the manner of a port crayon. D, the stem, is filed into an octogon, that it may the more easily be unscrewed.

      A B, fig. 20, is the box in which the compass hangs in the binacle.

      C D, is the ring that supports the inner box.

      E F, is the inner box, which contains the card and needle.

      G H, one of its axes, by which it is suspended on the ring C D.

      I, is a place cut out in the wood, serving as an handle.

      The magnet or needle appears passing though the center, together with a small brace of ivory that confines the cap to its place.

      The card is a single varnished paper, reaching as far as the outer circle of figures, which is a circle of thin brass; the edge whereof is turned down at right angles to the plane of the card, in order to stiffen it.

      The compass is retained in the binacle at sea, as exhibited in plate I. fig. 6. For the other parts of the compass represented in the figure, see the article Azimuth.

      COMPASSING, devers, a name given by shipwrights to such pieces of timber as are incurvated into the figure of an arch, whether circular, elliptical, or otherwise.

      COMPTROLLER of the navy, one of the principal officers of the Navy-board, at which he presides, to direct the inferior and civil department

of the marine, as the admiralty superintends the superior and military operations of it.

      CONVOY, conserve, (convoyer, Fr.) a fleet or navy of merchant-ships bound on a voyage to some particular part or general rendezvous.

      Convoy also implies the ship or ships appointed to conduct and defend them on their passage thither.

      CORDAGE, (cordage, Fr.) a general term for the running rigging of a ship, or all that part of her rigging which is employed to extend, contract, or traverse the sails; or which lies in reserve to supply the place of such as may be rendered unserviceable. See the article Rigging.

      CORPORAL of a ship of war, an officer under the master at arms, employed to teach the sailors the exercise of small arms, or musketry; to attend at the gangway, or entering-ports, and observe that no spirituous liquors are brought into the ship, unless by particular leave from the officers. He is also to extinguish the fire and candles at eight o’clock in winter, and nine in summer, when the evening gun is fired; and to walk frequently down in the lower decks in his watch, to see that there are no lights but such as are under the charge of proper centinels.

      CORPOSANT, feu St. Elme (corpo santo, Ital.), a sort of volatile meteor, or ignis fatuus, often beheld in a dark and tempestuous night about the decks or rigging of a ship, but particularly at the extremities, as the mast-heads, and yard arms: it is most frequent in heavy rain, accompanied with lightning. "They usually wander with uncertain motion from place to place, sometimes appearing to cleave close to the sails and masts; but they frequently leap up and down with intermission, affording an obscure flame, like that of a candle burning faintly. They are produced by some sulphureous and bituminous matter, which being beat down by the motion of the air above, and gathering together, is kindled by the agitation of the air, as butter is gathered together by the agitation of the cream. And from this appearance we infer that storms come from sulphureous spirits that rarify the air, and put it into a motion." Varenius.

      CORSAIR, (corsair, Fr.) a name commonly given to the piratical cruisers of Barbary, who frequently plunder the merchant-ships of European nations with whom they are at peace.

      COTT, a particular sort of bed-frame, suspended from the beams of a ship, for the officers to sleep in between the decks. This contrivance is much more convenient at sea than either the hammocks or fixed cabins, being a large piece of canvas sewed into the form of a chest, about six feet long, one foot deep, and from two to three feet wide: it is extended by a square wooden frame with a canvas bottom, equal to its length and breadth, to retain it in an horizontal position.

      COVE, anse, a small creek or bay, where boats or little vessels may ride at anchor sheltered from the wind and sea.

      COUNTER, contre-arcasse, an arch or vault whose upper-part is terminated by the bottom of the stern, and the lower part by the wing-

transom and buttock, being expressed by the letters KG, in the elevation, plate I. as likewise by the same letters in fig. 1, plate X. and the figure referred to from the article Quarter.

      There is also another counter above, parallel to this, but not vaulted; it extends from the upper-part of the lower, or vaulted counter, to the moulding which terminates the windows of the cabin or ward-room below. This latter is usually called the upper or second counter.

      COUNTER-BRACING. See this operation fully explained in the article Tacking.

      COURSE, route, in navigation, the angle contained between the nearest meridian and that point of the compass upon which a ship sails in any particular direction.

      COURSES, pacfis, a name by which the principal sails of a ship are usually distinguished, viz. the main-sail, fore-sail, and mizen: the mizen-stay-sail and fore-sail are also sometimes comprehended in this denomination, as are the main-stay-sails of all brigs and schooners. See the article Sail.

      CRAB, a sort of wooden pillar, whose lower end, being let down through a ship’s decks, rests upon a socket like the capstern; and having in its upper-end three or four holes, at different heights, thro’ the middle of it, above one another, into which long bars are thrust, whose length is nearly equal to the breadth of the deck. It is employed to wind in the cable, or to purchase any other weighty matter which requires a great mechanical power. This differs from a capstern, as not being furnished with a drum-head, and by having the bars to go intirely through it, reaching from one side of the deck to the other; whereas those of the capstern, which are superior in number, reach only about eight inches or a foot into the drum-head, according to the size thereof. This machine is represented in plate II. by fig. 10, and 13. See also Capstern.

      CRADLE, slee, a frame placed under the bottom of a ship, in order to conduct her smoothly and steddily into the water when she is to be lanched; at which time it supports her weight whilst she slides down the descent, or sloping passage called the ways, which are for this purpose daubed with soap and tallow. This frame is exhibited by fig. 23, plate II.

      CRAFT, a general name for all sorts of vessels employed to load or discharge merchant-ships, or to carry along-side, or return the stores of men of war: such are lighters, hoys, barges, prames, &c. See those articles.

      CRANK, coté-foible, the quality of a ship, which for want of a sufficient quantity of ballast or cargo, is rendered incapable of carrying sail without being exposed to the danger of overturning. See the articles Ballast and Trim.

      Crank, is also an iron brace which supports the lanthorns on the poop-quarters, &c.

      CRAWL, bouchot, a sort of pen, or place of confinement, formed by a barrier of stakes and hurdles on the sea-coast, to contain any sort of fish within it.

      CREEPER, an instrument of iron resembling a grappling, having a shank and four hooks or claws, fig. 24, plate II. It is used to throw into the bottom of any river or harbour, with a rope fastened to it, to hook and draw up any thing from the bottom which may have been lost.

      CRINGLE, ancet, a small hole made in the bolt-rope of a sail, by inter-twisting one of the divisions of a rope, called a strand, alternately round itself and through the strands of the bolt-rope, till it becomes three-fold, and assumes the shape of a wreath or ring. See plate II. fig. 25, where a, b, represents part of the bolt-rope of a sail; and c, the cringle.

      The use of the cringle is generally to contain the end of some rope, which is fastened thereto, for the purpose of drawing up the sail to its yard, or of extending the skirts by the means of bridles to stand upon a side-wind. The word seems to be derived from krinckelen, (Belg.) to run into twists.

      CROSS-JACK, pronounced crojeck, a sail extended on the lower yard of the mizen-mast, which is hence called the cross-jack yard, vergue seche. This sail, however, has generally been found of little service, and is therefore very seldom used.

      CROSS PIECE, rasteau, a rail of timber extended over the windlass of a merchant-ship from the knight-heads to the belfry. It is stuck full of wooden pins, which are used to fasten the running-rigging as occasion requires. See the article Windlass.

      CROSS-TREES, barres de hune, certain pieces of timber supported by the cheeks and tressel-trees, at the upper-ends of the lower-masts, athwart which they are laid, to sustain the frame of the top.

      CROTCHES, fourcats, (croccia, Ital.) a name given to those crooked timbers that are placed upon the keel in the fore and hind-parts of a ship, upon which the frame of her hull grows narrower below, as it approaches the stern afore, and the stern-post abaft.

      Crotches, cornes, are also certain pieces of wood or iron, whose upper part opens into two horns or arms, like a half-moon. They are fixed in different places of the ship, according to the uses for which they may be designed, which is usually to support the spare-masts, yards, &c. The iron crotches are exhibited in plate II. fig. 26.

      CROW, an iron lever well known in mechanics, and furnished with a sharp point at one end, and two claws at the other, as appears in fig. 27, plate II.

      This instrument is used for various purposes, by shipwrights and mariners; as to remove pieces of timber, and other weighty bodies; and to draw spike-nails, &c. as well as to manage the great guns, by moving them into their ports, levelling or pointing them to a particular object.

      To CROWD, forcer de voiles, (cruth, Sax.) to carry an extraordinary force of sail upon a ship, in order to accelerate her course on some important occasion, as in pursuit of, or flight from, an enemy; to escape any immediate danger, &c.

      CROW-FOOT, trelingage, a complication of small cords spreading out from a long block, like the smaller parts which extend from the back-bone of a herring. See plate II. fig. 27. It is used to suspend the awnings; or to keep the top-sails from striking violently and fretting against the edges of the tops.

      CROWNING, the finishing part of a knot made on the end of a rope. It is performed by interweaving the ends of the different brands artfully amongst each other, so as that they may not become loosened or untwisted. The design of these knots is to keep the end of the rope fast in some place assigned for it: they are more particularly useful in all kinds of stoppers.

      CRUISE, campaigne (croiser, Fr.), a voyage or expedition in quest of vessels or fleets of the enemy, which may be expected to sail through any particular tract of the sea at a certain season of the year. The region in which these cruises are performed, is usually termed the rendezvous or cruising-latitude. When the ships employed for this purpose, which are accordingly called cruisers, have arrived at their destined station, they traverse the sea backward and forward, under an easy sail, and within a limited space, conjectured to be nearly in the tract of their expected adversaries.

      CUDDY, coqueron, a sort of cabin, or cook-room, in the fore-part, or near the stern, of a lighter or barge of burden.

      CUNNING, faire gouverner, the art of directing the steersman to guide the ship in her proper course: the officer who performs this duty is either the pilot or quarter-master.

      CURRENT, in navigation, courans, (currens, Lat.) a certain progressive movement of the water of the sea, by which all bodies floating therein are compelled to alter their course, or velocity, or both, and submit to the laws imposed on them by the current.

      In the sea, currents are either natural and general, as arising from the diurnal rotation of the earth about its axis; or accidental and particular, caused by the waters being driven against promontories, or into gulfs and streights; where, wanting room to spread, they are driven back, and thus disturb the ordinary flux of the sea.

      "Currents are various, and directed towards different parts of the ocean, of which some are constant, and others periodical. The most extraordinary current of the sea is that by which part of the Atlantic or African ocean moves about Guinea from Cape Verd towards the curvature or bay of Africa, which they call Fernando Poo, viz. from west to east, contrary to the general motion. And such is the force of this current, that when ships approach too near the shore, it carries

them violently towards that bay, and deceives the mariners in their reckoning.

      "There is a great variety of shifting currents, which do not last, but return at certain periods; and these do, most of them, depend upon, and follow the anniversary winds or monsoons, which by blowing in one place may cause a current in another ^*." Varenius.

      In the streights of Gibraltar the currents almost constantly drive to the eastward, and carry ships into the Mediterranean: they are also found to drive the same way into St. George’s-channel.

      The setting, or progressive motion of the current, may be either quite down to the bottom, or to a certain determinate depth.

      As the knowledge of the direction and velocity of currents is a very material article in navigation, it is highly necessary to discover both, in order to ascertain the ship’s situation and course with as much accuracy as possible. The most successful method which has been hitherto attempted by mariners for this purpose, is as follows. A common iron pot, which may contain four or five gallons, is suspended by a small rope fastened to its ears or handles, so as to hang directly upright, as when placed upon the fire. This rope, which may be from 70 to 100 fathoms in length, being prepared for the experiment, is coiled in the boat,

which is hoisted out of the ship at a proper opportunity, when there is little or no wind to ruffle the surface of the sea. The pot being then thrown overboard into the water, and immediately sinking, the line is slackened till about seventy or eighty fathoms run out, after which the line is fastened to the boat’s stem, by which she is accordingly restrained, and rides as at anchor. The velocity of the current is then easily tried by the log and half-minute glass, the usual method of discovering the rate of a ship’s sailing at sea. The course of the stream is next obtained by means of the compass provided for this operation.

      Having thus found the setting and drift of the current, it remains to apply this experiment to the purposes of navigation. If the ship sails along the direction of the current, then the motion of the ship is increased by as much as is the drift or velocity of the current.

      If a current sets directly against the ship’s course, then her motion is retarded in proportion to the strength of the current. Hence it is plain,

      1. If the velocity of the current be less than that of the ship, then the ship will advance so much as is the difference of these velocities.

      2. If the velocity of the current be more than that of the ship, then will the ship fall as much astern as is the difference of these velocities.

      3. If the velocity of the current be equal to that of the ship, then will the ship stand still, the one velocity destroying the other.

      If the current thwarts the course of a ship, it not only diminishes or increases her velocity, but gives her a new direction, compounded of the course she steers, and the setting of the current, as appears by the following

      If a body at A be impelled by two forces at the same time, the one in the direction A B, carrying it from A to B in a certain space of time, and the other in the direction A D, pushing it from A to D in the same time; complete the parallelogram ABCD, and draw the diagonal A C: then the body at A, (which let us suppose a ship agitated by the wind and current; A B, being the line along which she advances as impressed by the wind, and A D the line upon which she is driven by the current) will move along the diagonal A C, and will be in the point C, at the end of the time in which it would have moved along A D or AB, as impelled by either of those forces (the wind or current) separately.

      CUTTER, bateau, a small vessel commonly navigated in the channel of England; it is furnished with one mast, and rigged as a sloop.

      Many of these vessels are used on an illicit trade, and others employed by the government to seize them; the latter of which are either under the direction of the Admiralty or Custom-house. See a representation of a cutter of this sort in the plate referred to from the article Vessel.

      Cutter is also a small boat used by ships of war. See Boat.

      CUTTING-DOWN Line, a curved line used by shipwrights in the delineation of ships: it determines the thickness of all the floor timbers, and likewise the height of the dead-wood, afore and abaft. It is limited in the middle of the ship by the thickness of the floor-timber, and abaft by the breadth of the kelson; and must be carried up so high upon the stem, as to leave sufficient substance for the breeches of the rising timbers. Murray’s Ship-building.

      CUT-WATER, the foremost part of a ship’s prow, formed of an assemblage of several pieces of timber, to render it broad at the upper-part, where it projects forward from the stem to open the column of water as the ship sails along, and also to make her keep to windward better, when she is close-hauled. It is otherwise called the knee of the head. See the article Stem; as also the several parts of it represented in plate I. Pieces of the Hull.

D.

Davit, minot, a long beam of timber, represented by a, a, plate II. fig. 28, and used as a crane, whereby to hoist the flukes of the anchor to the top of the bow, without injuring the planks of the ship’s side as it ascends; an operation which by mariners is called fishing the anchor. The anchors being situated on both the bows, the davit may be occasionally shifted so as to project over either side of the ship, according to the position of that anchor on which it is to be employed. The inner-end of the davit is secured by being thrust into a square ring of iron b, which is bolted to the deck, and fore-locked under the beams. This ring, which is called the span-shackle, exhibited at large by fig. 34, is fixed exactly in the middle of the deck, and close behind the fore-mast. Upon the outer-end of the davit is hung a large block c, through which a strong rope traverses, called the fish-pendant d, to whose foremost end is fitted a large iron hook e, and to its after end a tackle or complication of pullies f, the former of which is called the fish-hook, and the latter the fish-tackle.

      The davit therefore, according to the sea-phrase, is employed to fish the anchor, which being previously catted, the fish-hook is fastened upon its flukes; and the effort of the tackle, being transmitted to the hook by means of the fish-pendant, draws up that part of the anchor sufficiently high upon the bow to fasten it, which is done by the Shank-painter. See that article.

      There is also a davit of a smaller kind, occasionally fixed in the longboat, and employed to weigh the anchor therein.

      DAY’S-WORK, cinglage, the reckoning or account of the ship’s course, during twenty-four hours, or between noon and noon, according to the rules of trigonometry. See Dead-Reckoning.

      DEAD-EYE, cap de mouton, a sort of round, flattish, wooden block, see fig. 30, plate II. It is usually encircled with the end of a rope, or with an iron band, fig. 31, b, and pierced with three holes through the flat, in order to receive the rope called a laniard c, which corresponding with three holes in another dead-eye a, creates a purchase employed for various uses, but chiefly to extend the shrouds and stays, otherwise called the standing-rigging.

      In order to form this purchase, one of the dead-eyes is fastened in the lower-end of each shroud, and the opposite one in the upper-link of each chain on the ship’s side, which is made round to receive and encompass the hollowed outer-edge of the dead-eye. After this the laniard is passed alternately through the holes in the upper and lower

dead-eyes till it becomes six-fold; and is then drawn tight by the application of mechanical powers. The general disposition of the dead eyes in their channels is represented in the Elevation, plate I. In merchant-ships they are generally fitted with iron plates in the room of chains. These last are exhibited in fig. 16, plate II.

      The dead-eyes used for the stays, moques, have only one hole, which, however, is large enough to receive ten or twelve turns of the laniard: these are generally termed hearts, and are expressed by fig. 32.

      There are also dead-eyes of another form, employed for the crow-feet, moques de trelingage. These are long cylindrical blocks, fig. 33, with a number of small holes in them, to receive the legs or lines of which the crow-foot, fig. 28, is composed.

      DEAD-LIGHTS, certain wooden ports which are made to fasten into the cabin-windows, to prevent the waves from gushing into the ship in a high sea. As they are made exactly to fit the windows, and are strong enough to resist the waves, they are always fixed in, on the approach of a storm, and the glass frames taken out, which might other wise be shattered to pieces by the surges, and suffer great quantities of water to enter the vessel.

      DEAD-RECKONING, in navigation, estime, the judgment or estimation which is made of the place where a ship is situated, without any observation of the heavenly bodies. It is discovered by keeping an account of the distance she has run by the log, and of her course steered by the compass; and by rectifying these data by the usual allowances for drift, lee-way, &c. according to the ship’s known trim. This reckoning, however, is always to be corrected, as often as any good observation of the sun can be obtained.

      DEAD-RISING, or RISING-LINE of the floor, fleurs, those parts of a ship’s floor, or bottom, throughout her whole length, where the floor-timber is terminated upon the lower futtock. See the article Naval Architecture.

      DEAD-WATER, remoux the eddy of water which appears like little whirl-pools, closing in with the ship’s stern as she sails through it.

      DEAD-WOOD, contre-quille, a name given by shipwrights to certain blocks of timber laid upon the keel, particularly at the extremities afore and abaft, where these pieces are placed one upon another to a considerable height, because the ship is there so narrow as not to admit of the two

half timbers, which are therefore scored into this dead wood, where the angle of the floor-timbers gradually diminishes, as approaching the stem and stern-post. See the article Naval Architecture.

      In the fore-part of the ship, the dead-wood generally extends from the stemson, upon which it is scarfed to the loof-frame; and in the after-end from the stern-post, where it is confined by the knee, to the after-ballance-frame. It is connected to the keel by strong spike-nails. Those pieces are represented by e e, Pieces of the Hull, plate I.

      The dead-wood afore and abaft is equal in depth to two-thirds of the depth of the keel, and as broad as can be procured, so as not to exceed the breadth of the keel.

      DEAD-WORK, all that part of a ship which is above water when she is laden. See the article Upper-Work.

      DECKS, ponts, (decken, Dan. to cover) the planked floors of a ship, which connect the sides together, and serve as different platforms to support the artillery, and lodge the men, as also to preserve the cargo from the sea in merchant-vessels.

      As all ships are broader at the lower-deck than on the next above it, and as the cannon thereof are always heaviest, it is necessary that the frame of it should be much stronger than that of the others; and, for the same reason, the second or middle deck ought to be stronger than the upper deck, or forecastle.

      Ships of the first and second rates are furnished with three whole decks, reaching from the stem to the stern, besides a forecastle and a quarterdeck, which extends from the stern to the main-mast, between which and the fore-castle, a vacancy is left in the middle, opening to the upper-deck, and forming what is called the waist. There is yet another deck above the hinder or aftmost part of the quarter-deck, called the poop, which also serves as a roof for the captain’s cabin or couch.

      The inferior ships of the line of battle are equipped with two decks and a half, and frigates, sloops, &c. with one gun-deck and a half, with a spar deck below to lodge the crew.

      The decks are formed and sustained by the beams, the clamps, the water-ways, the carlings, the ledges, the knees, and two rows of small pillars, called stanchions, &c. See those articles.

      That the figure of a deck, together with its corresponding parts, may be more clearly understood, we have exhibited a plan of the lower-deck of a 74 gun-ship in plate III. And as both sides of the deck are exactly similar, the pieces by which it is supported appear on one side, and on the other side the planks or floor of which it is composed, as laid up on those pieces.

      A, the principal, or main hatch-way.

      B, the stern-post.

      C, the stem.

      D, the beams, composed of three pieces, as exhibited by D, in one of which the dotted lines shew the arrangement of one of the beams under the other side of the deck.

      E, part of the vertical or hanging knees. See also e, fig. 16, in the same plate.

      F, the horizontal or lodging knees, which fasten the beams to the sides.

      G, the carlings, ranging fore and aft, from one beam to another.

      H, the gun-ports.

      I, the pump-dales, being large wooden tubes which return the water from the pumps into the sea.

      K, the spurs of the beams; being curved pieces of timber serving as half-beams to support the decks, where a whole beam cannot be placed on account of the hatch-ways.

      L, the deck-transom, which is bolted by the middle to the stern-post, and whose ends rest upon the fashion-pieces.

      M, the bulk-head or partition, which encloses the manger, and prevents the water which enters at the hause-holes from running aft between decks.

      N N, the fore hatch-way.

      O O, the after hatch-way.

      P, the drum-head of the gear cap-stern.

      P p, the drum-head of the main capstern.

      Q, one of the lower transom-knees.

      R, one of the breast-hooks under the gun-deck.

      S, the breast-hook of the gun-deck.

      T T, the station of the chain-pumps.

      V, the breadth and thickness of the timbers at the height of the gun-deck.

      U U, scuttles leading to the gunner’s store-room, and bread-room.

      W, the station of the fore-mast.

      X, the station of the main-mast.

      Y, the station of the mizen-mast.

      Z, the ring-bolts of the decks, used to retain the cannon whilst charging.

      a, a, the ring-bolts of the sides, whereon the tackles are hooked that secure the cannon at sea.

      c a a d, the water-ways, through which the scupper-holes are pierced, to carry the water off from the deck into the sea.

      b, b, plan of the foremost and aftmost cable-bits, with their crosspieces g, g, and their standards e, e.

      Thus we have represented on one side, all the pieces which sustain the deck with its cannon; and on the other side, the deck itself, with a tier of 32 pounders planted in battery thereon. In order also to shew the use of the breeching and train-tackle, one of the guns is drawn in as ready for charging. See the articles Breeching and Cannon.

      The number of beams, by which the decks of ships are supported, is often very different, according to the practice of different countries; the

strength of the timber of which the beams are framed; and the services for which the ship is calculated.

      As the deck which contains the train of a fire-ship is furnished with an equipage peculiar to itself, the whole apparatus is particularly described in the article Fire-ship.

      Flush-Deck, or Deck-Flush fore and aft, implies a continued floor laid from stem to stern, upon one line, without any steps or intervals.

      Half-Deck, corps de garde, a space under the quarter-deck of a ship of war, contained between the foremost bulk-head of the steerage, and the fore-part of the quarter-deck.

      In the colliers of Northumberland the steerage itself is called the half-deck, and is usually the habitation of the ship’s crew.

      DECOY, a stratagem employed by a small ship of war to betray a vessel of inferior force into an incautious pursuit, till she has drawn her within the range of her cannon, or what is called within gun-shot.

      It is usually performed by painting the stern and sides in such a manner as to disguise the ship, and represent her either much smaller, and of inferior force, or as a friend to the hostile vessel, which she endeavours to ensnare, by assuming the emblems and ornaments of the nation to which the stranger is supposed to belong. When she has thus provoked the adversary to chase, in hope of acquiring a prize, she continues the decoy by spreading a great sail, as endeavouring to escape, at the same time that her course is considerably retarded by an artful alteration, of her trim till the enemy approaches.

      Decoying is also performed to elude the chace of a ship of superior force in a dark night, by throwing out a lighted cask of pitch into the sea, which will burn for a considerable time, and misguide the enemy. Immediately after the cask is thrown out, the ship changes her course, and may easily escape if at any tolerable distance from the foe.

      DEEP-WAISTED, encastillé, the distinguishing fabric of a ship’s decks, when the quarter-deck and fore-castle are elevated from four to six feet above the level of the upper-deck, so as to leave a vacant space, called the waiste, on the middle of the upper-deck. See the article Waiste.

      DEMURRAGE, an allowance given to the commander of a trading ship by the merchants, for having detained him longer in port than the time previously appointed for his departure.

      DEPARTURE, in navigation, the distance between any two places lying on the same parallel, counted in miles of the equator; or the distance of one place from the meridian of another, counted on the parallel passing over that place. See Navigation.

      DEPTH of a sail, chute, the extent of any square or oblong sail from the head-rope to the foot-rope; or the length of the after-leech of any boom-sail or stay-sail. See the article Sail.

      DETACHMENT of a fleet or squadron, a certain number of ships chosen by an admiral or commodore from the rest of the fleet, charged to execute some particular service.

      DIFFERENCE of latitude, in navigation, the difference between any two places lying on the same meridian; or the distance between the parallels of latitude of any two places, expressed in miles of the equator.

      DINNAGE, see the article Dunnage.

      DISABLED, desemparé, the state of a ship when, by the loss of her masts, sails, yards, or rigging; by springing a leak, or receiving some fracture in her hull, or other disaster; she is rendered incapable of prosecuting her voyage without great difficulty and danger.

      To DISCHARGE, (decharger, Fr.) when applied to a ship, signifies to unlade her, or take out her stores, ammunition, artillery, &c. When expressed of the officers or crew, it implies to disband them from immediate service.

      DISMASTED, dematé, the state of a ship which has lost her masts by boisterous weather, engagement, or other misfortune.

      DIVISION, a select number of ships in a fleet or squadron of men of war, distinguished by a particular flag or pendant, and usually commanded by a general officer. A squadron is commonly ranged into three divisions, the commanding officer of which is always stationed in the center.

      When a fleet consists of sixty sail of the line, that is, of ships having at least sixty cannon, the admiral divides it into three squadrons, each of which has its divisions and commanding officers. Each squadron has its proper colours, according to the rank of the admiral who commands it, and every division its proper mast. Thus, the white flag denotes the first squadron of France; the white and blue the second, and the third is characterised by the blue. In England, the first admiral, or the admiral of the fleet, displays the union flag at the main-top-mast-head; next follows the white flag with St. George’s cross; and afterwards the blue. The private ships carry pendants of the same colour with their respective squadron, at the masts of their particular divisions; so that the last ship in the division of the blue squadron carries a blue pendant at her mizen-top-mast-head.

      DOCK, forme, (imagined of [greek word]) a sort of broad and deep trench, formed on the side of a harbour, or on the banks of a river; and commodiously fitted either to build ships, or receive them to be repaired and breamed therein. These sorts of docks have generally strong flood-gates, to prevent the flux of the tide from entering the dock while the ship is under repair.

      There are likewise docks of another kind, called wet-docks, where a ship can only be cleaned during the recess of the tide, or in the interval between the time when the tide left her dry a-ground, and the period when it again reaches her by the return of the flood. Docks of the latter kind are not furnished with the usual flood-gates.

      DOCKING a ship, the act of drawing her into the dock, in order to give her a proper repair, and cleanse the bottom, and cover it anew with a preparation of stuff, as explained in the article Breaming.

      DOCK-YARDS, arcenaux, certain magazines containing all sorts of naval stores, and timber for ship-building. In England, the royal dock-yards are at Chatham, Portsmouth, Plymouth, Deptford, Woolwich, and Sheerness. His majesty’s ships and vessels of war are generally moored at these ports, during the time of peace; and such as want repairing are taken into the docks, examined, and refitted for service. See the article Repair.

      The principal dock-yards are governed by a commissioner, resident at the port, who superintends all the musters of the officers, artificers, and labourers, employed in the dock-yard, and ordinary. He also controls their payment therein; examines the accounts; contracts, and draws bills on the Navy-office to supply the deficiency of stores; and, finally, regulates whatever belongs to the dock-yard, maintaining due order in the respective offices.

      These yards are generally supplied from the northern crowns with hemp, pitch, tar, rosin, canvas, oak plank, and several other species. With regard to the masts, particularly those of the largest size, they are usually imported from New-England.

      DOG, a sort of iron hook, or bar, with a sharp fang at one end, so formed as to be easily driven into a plank: it is used to drag along the planks of oak when they are let into a hole under the stern of a ship, to be stowed in the hold. For this purpose there is a rope fastened to the end of the dog, upon which several men pull, to draw the plank towards the place where it is to be stowed. It is also used for the same purpose in unlading the ship.

      DOGGER, dogre-bot, a Dutch fishing-vessel navigated in the German ocean. It is generally employed in the herring fishery, being equipped with two masts, viz. a main-mast and a mizen-mast, and somewhat resembling a ketch.

      DOLPHIN of the mast a peculiar kind of wreath, formed of platted cordage, to be fastened occasionally round the masts, as a support to the puddening, whose use is to sustain the weight of the fore and main-yards, in case the rigging, or chains, by which those yards are suspended, should be shot away in the time of battle; a circumstance which might render their sails useless at a season when their assistance is extremely necessary. See the article Puddening.

      DOUBLING, in navigation, (doubler, Fr.) the act of sailing round, or passing beyond a cape or promontory, so as that the cape or point of land separates the ship from her former situation, or lies between her and any distant observer.

      DOUBLING-NAILS, amongst shipwrights, the nails commonly used to fasten the lining of the gun-ports, &c.

      DOUBLING-UPON, in a naval engagement, the act of enclosing any part of a hostile fleet between two fires, or of cannonading it on both sides.

      It is usually performed by the van or rear of that fleet which is superior in number, taking the advantage of the wind, or of its situation and circumstances, and tacking or veering round the van or rear of the enemy, who will thereby be exposed to great danger, and can scarcely avoid being thrown into a general confusion.

      To DOUSE, molir, to lower suddenly or slacken: expressed of a sail in a squall of wind, an extended hawser, &c.

      DOWN-HAWL, calebas, a rope passing up along a stay through the rings of the stay-sail, and tied to the upper-corner of the sail, to pull it down, when they are shortening sail.

      Down-haul-Tackle, a complication of pullies, employed to pull down the main or fore-yard in a tempest, in order to reef the sail. It is used at this time, because the violence of the wind prevents the weight of the yard from having its natural effect, of descending, when the ropes by which it is suspended are slackened.

      DRABLER, an additional part of a sail, sometimes laced to the bottom of the bonnet of a square-sail, in sloops and schooners.

      DRAG, a machine consisting of a sharp square iron ring encircled with a net, and commonly used to rake the mud off from the platform or bottom of the docks. See plate II. fig. 35.

      DRAGGING the anchor, the act of trailing it along the bottom, after it is loosened from the ground, by the effort of the wind or current upon the ship, communicated to the cable. See the article Anchor.

      DRAUGHT, the depth of a body of water necessary to float a ship; hence a ship is said to draw so many feet of water, when she is borne up by a column of water of that particular depth. Thus, if it requires a body of water whose depth is equal to twelve feet, to float or buoy up a ship on its surface, she is said to draw twelve feet water; and that this draught may be more readily known, the feet are marked on the stem and stern-post, regularly from the keel upwards.

      DRESSING, (faire la parade), the act of ornamenting a ship with a variety of colours; as ensigns, flags, pendants, &c. displayed from different parts of her masts and rigging on a day of festivity.

      DRIFT, in navigation, derive (from drive), the angle which the line of a ship’s motion makes with the nearest meridian, when she drives with her side to the wind and waves, and is not governed by the power of the helm: it also implies the distance which the ship drives on that line.

      A ship’s way is only called drift in a storm; and then, when it blows so vehemently, as to prevent her from carrying any sail, or at least restrains her to such a portion of sail as may be necessary to keep her

sufficiently inclined to one side, that she may not be dismasted by her violent labouring produced by the turbulence of the sea.

      DRIVER, an oblong sail, occasionally hoisted to the mizen-peak, when the wind is very fair. The lower corners of it are extended by a boom or pole, which is thrust out across the ship, and projects over the lee-quarter.

      DRIVING, abattre (drifan, Sax.) the state of being carried at random along the surface of the water, as impelled by a storm, or impetuous current: it is generally expressed of a ship when, accidentally, broke loose from her anchors or moorings.

      DROP, etarcure, a name sometimes given to the depth of the principal sails; as, her main-top-sail drops seventeen yards.

      DUCKING, a sort of marine punishment inflicted by the French on those who have been convicted of desertion, blasphemy, or exciting sedition. It is performed as follows: the criminal is placed astride of a short thick batten, fastened to the end of a rope, which passes thro’ a block hanging at one of the yard-arms. Thus fixed, he is hoisted suddenly up to the yard, and the rope being slackened at once, he is plunged into the sea. This chastisement is repeated several times, conformable to the purport of the sentence pronounced against the culprit, who has at that time several cannon-shot fastened to his feet during the punishment, which is rendered public by the firing of a gun, to advertise the other ships of the fleet thereof, that their crews may become spectators. Aubin.

      Ducking, is also a penalty which veteran sailors pretend to inflict on those, who, for the first time, pass the tropic of Cancer, the Equator, or the streights of Gibraltar, in consequence of their refusal or incapacity to pay the usual fine levied on this occasion, which would redeem them from the said penalty.

      DUNNAGE, fardage, a quantity of faggots, boughs of trees, or other loose wood, laid in the bottom of a ship, either to raise the heavy goods which might make her too stiff, or to keep the cargo sufficiently above the bottom, that it may sustain no damage from the water, if the ship should prove leaky.

E.

EARINGS, rabans, certain small cords employed to fasten the upper corners of a sail to its respective yard; for which purpose one end of the earing is spliced to the cringle, fixed in that part of the sail; and the other end of it is passed six or seven times round the yard-arm and through the cringle, thereby fastening the latter to the former. Two of the turns are intended to stretch the upper-edge of the sail tight along the yard; and the rest to draw it close up to it. The former are therefore called outer, and the latter inner turns, as being passed without, or within the rigging, on the yard-arms.

      EASE the ship! the command given by the pilot to the steersman, to put the helm close to the lee-side, or, in the sea-phrase, hard-a-lee, when the ship is expected to pitch or plunge her fore-part deep in the water, while close-hauled. The reason usually given for this practice is, that the sudden movement of the helm prevents the ship’s head from falling with so much weight and rapidity into the hollow of the sea, as it would do otherwise: which is presuming that the flow, and uncertain effect of the helm is sufficient to retard the certain and violent action of gravity: a position that necessarily infers a very singular theory of mechanics. We shall not endeavour to advance any argument in favour of this practice; only to remark, that it is most religiously observed, both in merchant-ships and his majesty’s navy.

      To Ease off, or Ease away, molir, filer, to slacken gradually any single rope, or complication of ropes, formed into a tackle.

      EBB, jussant, the reflux of the tide, or the return of it into the sea after the highest of the flood, usually termed full-sea, or high-water.

      EDDY, remoux, (ed, backward, again, and ea, water, Sax.) the water that, by some interruption in its course, runs contrary to the direction of any river, or current, and appears like the motion of a whirlpool.

      To EDGE away, in navigation, abattre, to decline gradually from the shore, or from the line of the course which the ship formerly steered: it is particularly applied when a ship changes her course, by sailing nearer the direction of the wind; or, in the lea-language, by sailing larger, or more afore the wind, than she had done before that operation.

      ELBOW in the hause, a particular twist in the cables by which a ship rides at anchor. In this situation each of the cables, after crossing the other before the stem, is directed outwards on the same bow from which

it issued: that is to say, the starboard cable grows out on the starboard bow, and the larboard cable on the larboard bow, as exhibited in fig. 36, plate II. where a expresses the fore-castle, b the stem, c c the larboard cable, and d d the starboard one. See the article Hawse.

      EMBARGO, in commerce, arret (embargar, Span.), an arrest laid on ships or merchandise by public authority, or a prohibition of state, commonly issued on foreign ships, to prevent their putting to sea in time of war; and sometimes to prevent their coming in, and otherwise both to prevent their entrance and departure.

      EMBAYED, encapé, (from bay,) the situation of a ship when she is inclosed between two capes or promontories. It is particularly applied when the wind, by blowing strongly into any bay or gulf, makes it extremely difficult, and perhaps impracticable, for the vessel thus enclosed, to claw off from the shore, so as to weather the capes and arrive into the offing.

      ENGAGEMENT, in a naval sense, implies a particular or general battle at sea; or an action of hostility between single ships, or detachments, or squadrons of men of war.

      In order to have a clearer idea of this article, it will, therefore, be necessary that the reader who is little acquainted with the subject, should previously refer to the explanation of those terms, as also to the articles Cannon, Division, Exercise, Fleet, and Line of Battle.

      The sea-fights of the ancients were usually carried on in two different manners. Advanced by the force of their oars, the gallies ran violently aboard of each other, and by the mutual encounter of their beaks and prows, and sometimes of their sterns, endeavoured to dash in pieces, or sink their enemies.

      The prow, for this purpose, was commonly armed with a brazen point or trident, nearly as low as the surface of the sea, in order to pierce the enemy’s ships under the water. Some of the gallies were furnished with large turrets, and other accessions of building, either for attack or defence. The soldiers also annoyed their enemies with darts and slings, and, on their nearer approach, with swords and javelins; and, in order that their missive weapons might be directed with greater force and certainty, the ships were equipped with several platforms, or elevations above the level of the deck ^*. The sides of the ship were fortified with a thick fence of hides, which served to repel the darts of their adversaries, and to cover their own soldiers, who thereby annoyed the enemy with greater security.

      As the invention of gun-powder has rendered useless many of the machines employed in the naval wars of the ancients, the great distance of time has also consigned many of them to oblivion: some few are, nevertheless, recorded in ancient authors, of which we shall endeavour to present a short description. And first,

      The [greek word] was a large and massy piece of lead or iron, cast in the form of a dolphin. This machine being suspended by blocks at their mast-heads or yard-arms, ready for a proper occasion, was let down violently from thence into the adverse ships, and either penetrated through their bottom, and opened a passage for the entering waters, or by its weight immediately sunk the vessel.

      The [greek word] an engine of iron crooked like a sickle, and fixed on the top of a long pole. It was employed to cut asunder the slings of the sail-yards, and, thereby letting the sails fall down, to disable the vessel from escaping, and incommode her greatly during the action. Similar to this was another instrument, armed at the head with a broad two-edged blade of iron, wherewith they usually cut away the ropes that fastened the rudder to the vessel ^*.

      [greek word] , a sort of spears or maces of an extraordinary length, sometimes exceeding twenty cubits, as appears by the 15th Iliad of Homer ^‖, by whom they are also called [greek word] .

      [greek word] were certain machines used to throw large stones into the enemies ships.

      Vegetius mentions another engine, which was suspended to the main-mast, and resembled a battering-ram: for it consisted of a long beam, and an head of iron, and was, with great violence, pushed against the sides of the enemies gallies.

      They had also a grappling-iron, which was usually thrown into the adverse ship by means of an engine: this instrument facilitated the entrance of the soldiers appointed to board, which was done by means of wooden bridges, that were generally kept ready for this purpose in the fore-part of the vessel ^¶.

      The arms used by the ancients rendered the disposition of their fleets very different, according to the time, place and circumstances. They generally considered it an advantage to be to windward, and to have the sun shining directly on the front of their enemy. The order of battle chiefly depended on their power of managing the ships, or of drawing them readily into form; and on the schemes which their officers had concerted. The fleet being composed of rowing-vessels, they lowered their sails previous to the action: they presented their prows to the enemy, and advanced against each other by the force of their oars ^†. Before they joined battle, the admirals went from ship to ship, and exhorted their soldiers to behave gallantly. All things being in readiness, the signal was displayed by hanging out of the admiral’s galley a gilded shield, or a red garment or banner. During the elevation of this the action continued, and by its depression, or inclination towards the right or

left, the rest of the ships were directed how to attack, or retreat from their enemies. To this was added the sound of trumpets, which began in the admiral’s galley, and continued round the whole navy. The light was also begun by the admiral’s galley, by grappling, boarding, and endeavouring to overset, sink, or destroy, the adversary, as we have above described ^*. Sometimes, for want of grappling irons, they fixed their oars in such a manner as to hinder the enemy from retreating. ^† If they could not manage their oars as dexterously as their an-

tagonists, or fall along-side so as to board him, they penetrated his vessel with the brazen prow. The vessels approached each other as well as their circumstances would permit, and the soldiers were obliged to fight hand to hand, till the battle was decided: nor indeed could they fight otherwise with any certainty, since the shortest distance rendered their slings and arrows, and almost all their offensive weapons, ineffectual, if not useless. The squadrons were sometimes ranged in two or three right lines, parallel to each other; being seldom drawn up in one line, unless when formed into an half moon. This order indeed appears to be the most convenient for rowing vessels that engage by advancing with their prows towards the enemy. At the battle of Ecnomus, between the Romans and the Carthaginians, the fleet of the former was ranged into a triangle, or a sort of wedge in front, and towards the middle of its depth, of two right parallel lines. That of the latter was formed into a rectangle, or two sides of a square, of which one branch extended behind, and, as the opening of the other prosecuted the attack, was ready to fall upon the flank of such of the Roman gallies as should attempt to break their line. Ancient history has preserved many of these orders, of which some have been followed in later times. Thus, in a battle in A. D. 1340, the English fleet was formed in two lines, the first of which contained the larger ships, the second consisted of all the smaller vessels, used as a reserve to support the former whenever necessary. In 1545 the French fleet under the command of the Mareschal d’Annebault, in an engagement with the English in the Channel, was arranged in the form of a crescent. The whole of it was divided into three bodies, the center being composed of thirty-six ships, and each of the wings of thirty. He had also many gallies; but these fell not into the line, being designed to attack the enemy occasionally. This last disposition was continued down to the reigns of James I. and Louis XIII ^*.

      Meanwhile the invention of gun-powder, in 1330, gradually introduced the use of fire-arms into naval war, without finally superseding

the ancient method of engagement. The Spaniards were armed with cannon in a sea-fight against the English and the people of Poitou abreast of Rochelle in 1372; and this battle is the first wherein mention is made of artillery in our navies. Many years elapsed before the marine armaments were sufficiently provided with fire-arms ^*. So great a revolution in the manner of fighting, and which necessarily introduced a total change in the construction of ships, could not be suddenly effected. In short, the squadrons of men of war are no longer formed of rowing-vessels, or composed of gallies and ships of the line, but entirely of the latter, which engage under sail, and discharge the whole force of their artillery from their sides. Accordingly they are now disposed in no other form than that of a right line parallel to the enemy; every ship keeping close-hauled upon a wind on the same tack. Indeed the difference between the force and manner of fighting of ships and gallies rendered their service in the same line incompatible. When we consider therefore the change introduced, both in the construction and working of ships, occasioned by the use of cannon, it necessarily follows, that squadrons of men of war must appear in the order that is now generally adopted. Finally, the ships ought to present their broad-sides to the enemy; and to sail close upon a wind in the wake of each other; as well to retain their own uniformity, as to preserve or acquire the advantage which the weather-gage gives them over their adversary ^¶.

      The machines which owe their rise to the invention of gun powder have now totally supplanted the others; so that there is scarce any but the sword remaining, of all the weapons used by the ancients. Our naval battles are therefore almost always decided by fire-arms, of which there are several kinds, known by the general name of artillery.

      In a ship of war fire-arms are distinguished into cannon mounted on carriages, swivel-cannon, grenadoes, and musquetry. The first has been already described at large in its proper place. The second is a small piece of artillery, carrying a shot of half a pound, and fixed in a socket on the top of the ships side, stern or bow, and also in her tops. The trunnions of this piece are contained in a sort of iron crotch, whose lower-end terminates in a cylindrical pivot resting in the socket, so as to support the weight of the cannon. The socket is bored in a strong piece of oak, reinforced with iron hoops, in order to enable it to sustain the recoil. By means of this frame, which is called the swivel, and an iron handle on its cascabel, the gun may be directed by hand to any object. It is therefore very necessary in the tops, particularly when

loaded with musket-balls, to fire down on the upper-decks of the adversary in action.——The grenado is a kind of little bomb of the same diameter as a four pound bullet; it weighs about two pounds, being charged with four or five ounces of powder.——Grenadoes are thrown from the tops by the hands of the seamen. They have a touch-hole in the same manner as a bomb, and a fuse of the same composition. See Mortar. The sailor fires the fuse with a match, and throws the grenado as he is directed: the powder being inflamed, the shell instantly bursts into splinters, that kill or maim whomsoever they reach on the decks of the enemy. As this machine cannot be thrown by hand above fifteen or sixteen fathoms, the ship must be pretty near, to render it useful in battle.——The musket or firelock is so well known, that it appears unnecessary to describe it in this place.—Besides these machines, there are several others used in merchant-ships and privateers, as coehorns, carabines, fire-arrows, organs, powder-flasks, stink-pots, &c. ^*.

      Since a general engagement of fleets or squadrons of men of war is nothing else than a variety of particular actions of single ships with each other, in a line of battle; it appears necessary, according to the plan of this work, to begin by describing the latter, and then proceed to represent the usual manner of conducting the former.

      The whole oeconomy of a naval engagement may be arranged under the following heads, viz. the preparation; the action; and the repair, or refitting, for the purposes of navigation.

      The preparation is began by issuing the order to clear the ship for action, which is repeated by the boatswain and his mates at all the

hatchways or stair-cases, leading to the different batteries. As the management of the artillery in a vessel of war requires a considerable number of men, it is evident that the officers and sailors must be restrained to a narrow space in their usual habitations, in order to preserve the internal regularity of the ship. Hence the hammocs, or hanging-beds, of the latter are crowded together as close as possible between the decks, each of them being limited to the breadth of fourteen inches. They are hung parallel to each other, in rows stretching from one side of the ship to the other, nearly throughout her whole length, so as to admit of no passage but by stooping under them. As the cannon therefore cannot be worked while the hammocs are suspended in this situation, it becomes necessary to remove them as quick as possible. By this circumstance a double advantage is obtained: the batteries of cannon are immediately cleared of an incumbrance, and the hammocs are converted into a sort of parapet, to prevent the execution of small-shot on the quarter-deck, tops, and fore-castle. At the summons of the boatswain, Up all hammocs! every sailor repairs to his own, and, having stowed his bedding properly, he cords it up firmly with a lashing, or line provided for that purpose. He then carries it to the quarter-deck, poop, or forecastle, or wherever it may be necessary. As each side of the quarter-deck and poop is furnished with a double net-work, supported by iron cranes fixed immediately above the gunnel or top of the ship’s-side; the hammocs thus corded are firmly stowed by the quarter-master between the two parts of the netting, so as to form an excellent barrier. The tops, waiste, and fore-castle, are then fenced in the same manner.

      Whilst these offices are performed below, the boatswain and his mates are employed in securing the sail-yards, to prevent them from tumbling down when the ship is cannonaded, as she might thereby be disabled, and rendered incapable of attack, retreat, or pursuit. The yards are now likewise secured by strong chains, or ropes, additional to those by which they are usually suspended. The boatswain also provides the necessary materials to repair the rigging, wherever it may be damaged by the shot of the enemy; and to supply whatever parts of it may be entirely destroyed. The carpenter and his crew in the meanwhile prepare his shot-plugs and mauls, to close up any dangerous breaches that may be made near the surface of the water; and provide the iron-work necessary to refit the chain-pumps, in case their machinery should be wounded in the engagement. The gunner with his mates and quarter-gunners is busied in examining the cannon of the different batteries, to see that their charges are thoroughly dry and fit for execution: to have every thing ready for furnishing the great guns and small arms with powder, as soon as the action begins: and to keep a sufficient number of cartridges continually filled, to supply the place of those expended in battle. The master and his mates are attentive to have the sails properly trimmed, according to the situation of the ship;

and to reduce or multiply them, as occasion requires, with all possible expedition. The lieutenants visit the different decks, to see that they are effectually cleared of all incumbrance, so that nothing may retard the execution of the artillery: and to enjoin the other officers to diligence and alertness, in making the necessary dispositions for the expected engagement, so that every thing may be in readiness at a moment’s warning.

      When the hostile ships have approached each other to a competent distance, the drums beat to arms. The boatswain and his mates pipe, all hands to quarters! at every hatchway. All the persons appointed to manage the great guns, immediately repair to their respective stations. The crows, handspikes, rammers, spunges, powder-horns, matches, and train tackles, are placed in order by the side of every cannon. The hatches are immediately laid, to prevent any one from deserting his post by escaping into the lower apartments. The marines are drawn up in rank and file, on the quarter-deck, poop, and fore-castle. The lashings of the great guns are cast loose, and the tompions withdrawn. The whole artillery, above and below, is run out at the ports, and levelled to the point-blank range ready for firing.

      The necessary preparations being completed, and the officers and crew ready at their respective stations, to obey the order, the commencement of the action is determined by the mutual distance and situation of the adverse ships, or by the signal from the commander in chief of the fleet or squadron. The cannon being levelled in parallel rows, projecting from the ship’s side, the most natural order of battle is evidently to range the ships abreast of each other, especially if the engagement is general. The most convenient distance is probably within the point-blank range of a musket, so that all the artillery may do effectual execution.

      The combat usually begins by a vigorous cannonade, accompanied with the whole efforts of the swivel-guns and the small arms. The method of firing in platoons, or vollies of cannon at once, appears inconvenient in the sea-service, and perhaps should never be attempted, unless in the battering of a fortification. The sides and decks of the ship, although sufficiently strong for all the purposes of war, would be too much shaken by so violent an explosion and recoil. The general rule observed on this occasion throughout the ship, is to load, fire, and spunge, the guns with all possible expedition, yet without confusion or precipitation. The captain of each gun is particularly enjoined to fire only when the piece is properly directed to its object, that the shot may not be fruitlessly expended. The lieutenants who command the different batteries, traverse the deck to see that the battle is prosecuted with vivacity; and to exhort and animate the men to their duty. The midshipmen second these injunctions, and give the necessary assistance wherever it may be required, at the guns committed to their charge.

      The gunner should be particularly attentive that all the artillery is sufficiently supplied with powder, and that the cartridges are carefully conveyed along the decks in covered boxes. The havoc produced by a continuation of this mutual assault may be readily conjectured by the reader’s imagination: battering, penetrating, and splintering the sides and decks; shattering or dismounting the cannon; mangling and destroying the rigging; cutting asunder, or carrying away the masts and yards; piercing and tearing the sails so as to render them useless; and wounding, disabling, or killing the ship’s company! The comparative vigour and resolution of the assailants to effect these pernicious consequences in each other, generally determine their success or defeat: I say generally, because the fate of the combat may sometimes be decided by an unforeseen incident, equally fortunate for the one and fatal to the other. The defeated ship having acknowledged the victory, by striking her colours, is immediately taken possession of by the conqueror, who secures her officers and crew as prisoners in his own ship; and invests his principal officer with the command of the prize until a captain is appointed by the commander in chief.

      The engagement being concluded, they begin the repair: the cannon are secured by their breechings and tackles, with all convenient expedition. Whatever sails have been rendered unserviceable are unbent; and the wounded masts and yards struck upon the deck, and fished, or replaced by others. The standing rigging is knotted, and the running rigging spliced wherever necessary. Proper sails are bent in the room of those which have been displaced as useless. The carpenter and his crew are employed in repairing the breaches made in the ship’s hull, by shot-plugs, pieces of plank, and sheet-lead. The gunner and his assistants are busied in replenishing the allotted number of charged cartridges, to supply the place of those which have been expended, and in refitting whatever furniture of the cannon may have been damaged by the late action.

      Such is the usual process and consequences of an engagement between two ships of war, which may be considered as an epitome of a general battle between fleets or squadrons, The latter, however, involves a greater variety of incidents, and necessarily requires more comprehensive skill and judgment in the commanding officer.

      When the admiral, or commander in chief, of a naval armament has discovered an enemy’s fleet, his principal concern is usually to approach it, and endeavour to come to action as soon as possible. Every inferior consideration must be sacrificed to this important object; and every rule of action should tend to hasten and prepare for so material an event. The state of the wind, and the situation of his adversary, will, in some measure, dictate the conduct necessary to be pursued with regard to the disposition of his ships on this occasion. To facilitate the execution of the admiral’s orders, the whole fleet is ranged into three squadrons, each of which is classed into three divisions, under the

command of different officers. Before the action begins, the adverse fleets are commonly drawn up in two lines parallel to each other, and close-hauled. We have endeavoured to explain the propriety and necessity of this disposition in the article Line. As soon as the admiral displays the signal for the line of battle, the several divisions separate from the columns, in which they were disposed in the usual order of sailing, and every ship crouds into its station in the wake, of the next a-head: and a proper distance from each other, which is generally about fifty fathom, is regularly observed from the van to the rear. The admiral, however, will, occasionally, contract or extend his line, so as to conform to the length of that of his adversary, whose neglect, or inferior skill, on this occasion, he will naturally convert to his own advantage; as well as to prevent his own line from being doubled, a circumstance which might throw his van and rear into confusion.

      When the adverse fleets approach each other, the courses are commonly hauled up in the brails, and the top-gallant sails and stay sails furled. The movement of each ship is chiefly regulated by the main and fore-top sails, and the jib; the mizen-top sail being reserved to hasten or retard the course of the ship, and, in fine, by filling or backing, hoisting or lowering it, to determine her velocity.

      The frigates, tenders, and fire-ships, being also hauled upon a wind, lie at some distance, ready to execute the admiral’s orders, or those of his seconds, leaving the line of battle between them and the enemy. If there are any transports and store-ships attendant on the fleet, these are disposed still further distant from the action. If the fleet is superior in number to that of the enemy, the admiral usually selects a body of reserve from the different squadrons, which will always be of use to cover the fire-ships, bomb-vessels, &c. and may fall into the line in any case of necessity: these also are stationed at a convenient distance from the line, and should evidently be opposite to the weakest parts thereof.

      And here it may not be improper to observe, with an ingenious French author^[20], that order and discipline give additional strength and activity to a fleet. If thus a double advantage is acquired by every fleet, it is certainly more favourable to the inferior, which may thereby change its disposition with greater facility and dispatch than one more numerous, yet without being separated. When courage is equal to both, good order is then the only resource of the smaller number. Hence we may infer that a smaller squadron of men of war, whose officers are perfectly disciplined in working their ships, may, by its superior dexterity, vanquish a more powerful one, even at the commencement of the fight; because the latter being less expert in the order of battle, will, by its

separation, suffer many of the ships to remain useless, or not sufficiently near, to protect each other ^‖.

      The signal for a general engagement is usually displayed when the opposite fleets are sufficiently within the range of point-blank shot, so that they may level the artillery with certainty of execution, which is near enough for a line of battle. The action is begun and carried on throughout the fleet, in the manner we have already described between single ships, at which time the admiral carries little sail, observing, however, to regulate his own motions by those of the enemy. The ships of the line mean while keep close in their stations, none of which should hesitate to advance in their order, although interrupted by the situation of some ship a-head, which has negligently fallen astern of her station.

      Such is now the practice of naval war, that the necessary order of battle, and the fabric of our ships, very seldom permit the assault of boarding, unless in single actions. No captain ought therefore to abandon his station in the line, under any pretence whatsoever, unless his ship is too much disabled to continue the combat. The small quantity of sail carried on this occasion will permit the bulk of the fleet, altho’ somewhat impaired, to continue their cannonade a long time without quitting the line.

      An ambition to distinguish himself should never seduce any captain to break the line, in order to atchieve any distant enterprize, however the prospect may flatter him with success. He ought to wait the signal of the admiral or his commanding officer; because it is more essential to preserve the regularity of a close line, which constitutes the principal force of the fleet, than to prosecute a particular action, which, although brilliant in itself, has seldom any material consequences, unless its object is to seize a flag-ship, and even this can only be justified by success ^*.

      The various exigencies of the combat call forth the skill and resources of the admiral, to keep his line as complete as possible, when it has been unequally attacked; by ordering ships from those in reserve, to supply the place of others which have suffered greatly by the action; by directing his fire-ships at a convenient time to fall aboard the enemy; by detaching ships from one part of the line or wing which is stronger, to another which is greatly pressed by superior force, and requires assistance. His vigilance is ever necessary to review the situation of the enemy from van to rear, every motion of whom he should, if possible, anticipate and frustrate. He should seize the favourable moments of occasion,

which are rapid in their progress, and never return. Far from being disconcerted by any unforeseen incident, he should endeavour, if possible, to make it subservient to his design. His experience and reflection will naturally furnish him with every method of intelligence to discover the state of his different squadrons and divisions. Signals of enquiry and answers; of request and assent; of command and obedience; will be displayed and repeated on this occasion. Tenders and boats will also continually be detached between the admiral and the commanders of the several squadrons or divisions.

      As the danger presses on him, he ought to be fortified by resolution and presence of mind, because the whole fleet is committed to his charge, and the conduct of his officers may, in a great degree, be influenced by his intrepidity and perseverance. In short, his renown or infamy may depend on the fate of the day.

      If he conquers in battle, he ought to prosecute his victory as much as possible, by seizing, burning, or destroying the enemies ships. If he is defeated, he should endeavour by every resource his experience can suggest, to have as many of his fleet as possible; by employing his tenders, &c. to take out the wounded and put fresh men in their places; by towing the disabled ships to a competent distance, and by preventing the execution of the enemies fire-ships. In order to retreat with more security, he may judge it expedient to range his fleet into the form of an half-moon, placing himself in the center. By this disposition the enemy’s ships which attempt to fall upon his rear, will at once expose themselves to the fire of the admiral, and his seconds, in a disadvantageous situation; a circumstance which will serve to facilitate the escape of his own ships, and retard the pursuit of those of his adversary.

      If his fleet is too much extended by this arrangement, the wings or quarters are easily closed, and the half-moon rendered more complete; in the midst of which may be placed his store-ships, tenders, &c. In flying, or retreating, the uncertainty of the weather is to be considered: it may become calm, or the wind may shift in his favour. His schemes may be assisted by the approach of night, or the proximity of the land; since he ought rather to run the ships ashore, if practicable, than suffer them to be taken afloat, and thereby transfer additional strength to the enemy. In short, nothing should be neglected that may contribute to the preservation of his fleet, or prevent any part of it from falling into the hands of the conqueror.

      By what we have observed, the real force, or superiority, of a fleet consists less in the number of vessels, and the vivacity of the action, than in good order, dexterity in working the ships, presence of mind, and skilful conduct in the captains.

      ENSIGN, pavillon de pouppe, (enseigne, Fr.) a large standard, or banner, hoisted on a long pole erected over the poop, and called the ensign-staff.

      The ensign is used to distinguish the ships of different nations from each other, as also to characterise the different squadrons of the navy.

      The British ensign in ships of war is known by a double cross, viz. that of St. George and St. Andrew, formed into an union, upon a field which is either red, white, or blue.

      ENTERING Ropes, tire-veilles, two ropes hanging from the upper-part of a ship’s-side, on the right and left of the accommodation-ladder, or steps of the gangway. See Gangway.

      ENTRANCE, a name frequently given to the foremost part of a ship under the surface of the sea.

      To EQUIP, a term borrowed from the French marine, and frequently applied to the business of fitting a ship for sea, or arming her for war. See the article Fitting.

      ESCUTCHEON, (ecusson, Fr.) a name sometimes given to the compartment for the name, or arms, of the owner, or of the person whose title the vessel assumes: it is usually fixed on the middle of the ship’s stern, and is more peculiar to the French and other foreigners, than to English built vessels. See fig. 3, plate 10.

      EXERCISE is the preparatory practice of managing the artillery and small-arms, in order to make the ship’s crew perfectly skilled therein, so as to direct its execution successfully in the time of battle.

      The exercise of the great guns has, till the late war, been very complicated, and abounding with superfluities, in our navy, as well as all others. The following method was then successfully introduced by an officer of distinguished abilities.

      "Upon beat to arms ^[23] (every body having immediately repaired to their quarters) the midshipman commanding a number of guns, is to see that they are not without every necessary article, as (at every gun) a spunge, powder-horn, with its priming wires, and a sufficient quantity of powder, crow, hand-spike, bed, quoin, train-tackle, &c. sending, without delay, for a supply of any thing that may be missing; and, for the greater certainty of not overlooking any deficiency, he is to give

strict orders to each captain under him, to make the like examination at his respective gun, and to take care that every requisite is in a serviceable condition, which he is to report accordingly. And (besides the other advantages of this regulation) for the still more certain and speedy account being taken upon these occasions, the midshipman is to give each man his charge at quarters (as expressed in the form of the monthly report) who is to search for his particular implements, and, not finding it, is immediately to acquaint his captain, that, upon his report to the midshipman, it may be replaced.

      "The man who takes care of the powder is to place himself on the opposite side of the deck from that where we engage, except when fighting both sides at once, when he is to be amidships. He is not to suffer any other man to take a cartridge from him, but he who is appointed to serve the gun with that article, either in time of a real engagement, or at exercise.

      "Lanthorns are not to be brought to quarters in the night, until the midshipman gives his orders for so doing to the person he charges with that article. Every thing being in its place, and not the least lumber in the way of the guns, the exercise begins with,

      "At this word every one is to observe a silent attention to the officers.

      "The muzzle lashing is to be taken off from the guns, and (being coiled up in a small compass) is to be made fast to the eye-bolt above the port. The lashing-tackles at the same time to be cast loose, and the middle of the breeching seized to the thimble of the pomillion. The spunge to be taken down, and, with the crow, hand-spike, &c. laid upon the deck by the gun.

      "N. B. When prepared for engaging an enemy, the seizing within the clinch of the breeching is to be cut, that the gun may come sufficiently within-board for loading, and that the force of the recoil may be more spent before it acts upon the breeching.

      "The breech of your metal is to be raised so as to admit the foot of the bed’s being placed upon the axle-tree of the carriage, with the quoin upon the bed, both their ends being even one with the other.

      "N. B. When levelled for firing, the bed is to be lashed to the bolt which supports the inner end of it, that it may not be thrown out of its place by the violence of the gun’s motion, when hot with frequent discharges. See fig. 17, plate VII.

      "The tompion is to be taken out of the gun’s mouth, and left hanging by its laniard.

      "With the tackles hooked to the upper-bolts of the carriage, the gun is to be bowsed out as close as possible, without the assistance of crows or hand-spikes; taking care at the same time to keep the breeching clear of the trucks, by hauling it through the rings; it is then to be bent so as to run clear when the gun is fired. When the gun is out, the tackle-falls are to be laid along-side the carriages in neat fakes, that when the gun by recoiling overhauls them, they may not be subject to get foul, as they would if in a common coil.

      "If the cartridge is to be pierced with the priming wire, and the vent filled with powder, the pan also is to be filled; and the flat space having a score through it at the end of the pan, is to be covered, and this part of the priming is to be bruised with the round part of the horn."

      The apron is to be laid over, and the horn hung up out of danger from the flash of the priming.

      "At this command the gun is, in the first place, to be elevated to the height of the object, by means of the side-sights; and then the person pointing is to direct his fire by the upper-sight, having a crow on one side and a hand-spike on the other, to heave the gun by his direction till he catches the object.

      "N. B. The men who heave the gun for pointing, are to stand between the ship’s side and their crows or hand-spikes, to escape the injury they might otherwise receive from their being struck against them, or splintered by a shot; and the man who attends the captain with a match is to bring it at the word, "Point your guns," and kneeling upon one knee opposite the train-truck of the carriage, and at such a distance as to be able to touch the priming, is to turn his head from the gun, and keep blowing gently upon the lighted match to keep it clear from ashes. And as the missing of an enemy in action, by neglect or want of coolness, is most inexcusable, it is particularly recommended to have the people thoroughly instructed in pointing well, and taught to know the ill consequences of not taking proper means to hit their mark; wherefore they should be made to elevate their guns to the utmost nicety, and then to point with the same exactness, having caught the object through the upper-sight at the word,

      "The match is instantly to be put to the bruised part of the priming; and when the gun is discharged the vent is to be closed, in order to smother any spark of fire that may remain in the chamber of the gun;

and the man who spunges is immediately to place himself by the muzzle of the gun in readiness, when, at the next word,

      "The spunge is to be rammed down to the bottom of the chamber, and then twisted round, to extinguish effectually any remains of fire; and when drawn out, to be struck against the out-side of the muzzle, to shake off any sparks or scraps of the cartridge that may have come out with it; and next its end is to be shifted ready for loading; and while this is doing, the man appointed to provide a cartridge is to go to the box, and by the time the spunge is out of the gun, he is to have it ready; and, at the word,

      "The cartridge (with the bottom-end first, seam-downwards, and a wad after it) is to be put into the gun, and thrust a little way within the mouth, when the rammer is to be entered; the cartridge is then to be forcibly rammed down, and the captain at the same time is to keep his priming-wire in the vent, and, feeling the cartridge, is to give the word home, when the rammer is to be drawn, and not before. While this is doing, the man appointed to provide a shot is to provide one (or two, according to the order at that time) ready at the muzzle, with a wad likewise, and when the rammer is drawn, at the word,

      "The shot and wad upon it are to be put into the gun, and thrust a little way down, when the rammer is to be entered as before. The shot and wad are to be rammed down to the cartridge, and there have a couple of forcible strokes, when the rammer is to be drawn, and laid out of the way of the guns and tackles, if the exercise or action is continued; but if it is over, the spunge is to be secured in the place it is at all times kept in.

      "The tompions to be put into the muzzle of the cannon.

      "The seizing is to be put on again upon the clinched end of the breeching, leaving it no slacker than to admit of the guns being housed with ease. The quoin is to be taken from under the breech of the gun, and the bed, still resting upon the bolt, within the carriage, thrust under, till the foot of it falls off the axle-tree, leaving it to rest upon the

end which projects out from the foot. The metal is to be let down upon this. The gun is to be placed exactly square, and the muzzle is to be close to the wood, in its proper place for passing the muzzle lashings. See Cannon, and fig. 19, plate VII.

      "The muzzle lashings must first be made secure, and then with one tackle (having all its parts equally taught with the breeching) the gun is to be lashed. The other tackle is to be bowsed taught, and by itself made fast, that it may be ready to cast off for lashing a second breeching.

      "N. B. Care must be taken to hook the first tackle to the upper bolt of the carriage, that it may not otherwise obstruct the reeving of the second breeching, and to give the greater length to the end part of the fall.

      "No pains must be spared in bowsing the lashing very taught, that the gun may have the least play that is possible, as their being loose may be productive of very dangerous consequences.

      "The quoin, crow, and handspike, are to be put under the gun, the powder-horn hung up in its place, &c.

      "Being engaged at any time when there is a large swell, a rough sea, or in squally weather, &c. as the ship may be liable to be suddenly much heeled, the port-tackle falls is to be kept clear, and (whenever the working of the gun will admit of it) the man charged with that office is to keep it in his hand; at the same time the muzzle lashing is to be kept fast to the ring of the port, and being hauled taught, is to be fastened to the eye-bolt over the port-hole, so as to be out of the gun’s way in firing, in order to haul it in at any time of danger.

      "This precaution is not to be omitted, when engaging to the windward, any more than when to the leeward, those situations being very subject to alter at too short a warning.

      "A train tackle is always to be made use of with the lee-guns, and the man stationed to attend it is to be very careful in preventing the gun’s running out at an improper time."

      Exercise may also be applied with propriety to the forming our fleets into orders of sailing, lines of battle, &c. an art which the French have termed evolutions, or tactiques. In this sense exercise may be defined, the execution of the movements which the different orders and disposition of fleets occasionally require, and which the several ships are directed to perform by means of signals.

      EYE of a block-strop. In the article Block it has been mentioned, that a block is commonly bound with a ring, or wreath, formed of a piece of rope, called the strop; the eye of the strop, therefore, is that part by which it is fastened, or suspended, to any particular place upon the

sails, yards, or rigging, the eye whereof is represented by fig. 37, plate II. The eye is sometimes formed by fastening the two ends of the strop together with a short line, so as to bind round a mast, yard, or boom, as occasion requires. See fig. 38, of the same plate.

      Eye of a stay, oeillet, that part of a stay which is formed into a sort of collar to go round a mast-head.

      EYE-BOLT, a long bar of iron with an eye in one end of it, represented by fig. 39, plate II. It is formed to be driven into the decks or sides of a ship for divers purposes, as to hook tackles, or fasten ropes to, as occasion requires.

      EYE-LET-HOLE. See the article Sails.

      EYES of a ship, oeils, a name frequently given to those parts which lie near the hause-holes, particularly in the lower apartments within the vessel.

F.

FACTOR, in commerce, an agent, or correspondent, residing beyond the seas, or in some remote part, and commissioned by merchants to buy or sell goods on their account, or assist them to carry on their trade. Hence any place where a considerable number of factors reside, to negociate for their masters, or employers, is called a factory; as the factories of Lisbon, of Leghorn, of Calcutta, &c.

      FAG-END, the end of any rope, or cord, which is become untwisted and loosened by frequent use. To prevent this effect, the ends of ropes are generally well fastened by winding a piece of small line, or pack-thread, around them, which operation is called whipping.

      FAIR, a general term for the disposition of the wind, when it is favourable to a ship’s course, in opposition to that which is contrary or foul.

      This term, when applied to the wind, is much more comprehensive than large, since the former seems to include about eighteen points of the compass, or at least sixteen; whereas large is confined to the beam or quarter, that is, to a wind which crosses the keel at right angles, or obliquely from the stern, but never to one right a-stern. See the articles Large and Scant.

      FAIR-CURVE, a winding line, used in delineating ships, whose shape is varied according to the part of the ship it is intended to describe: this curve is not answerable to any of the figures of conic sections, although it occasionally partakes of them all.

      FAIR WAY, the path or channel of a narrow bay, river, or haven, in which ships usually advance in their passage up and down; so that if any vessels are anchored therein, they are said to lye in the fair-way.

      FAKE, one of the circles, or windings, of a cable, or hauser, as it lies disposed in the coil. See the article Coiling. The fakes are greater or smaller in proportion to the extent of space which a cable is allowed to occupy where it lies.

      FALL, garant, the loose end of a tackle; or that part upon which the people pull, or hoist, to produce the required effect. See the article Tackle.

      To Fall aboard. See the article Aboard.

      To Fall a-stern, (tomber en arriere,) to be driven backwards; to retreat with the stern foremost: expressed of the motion of a ship either under sail or at anchor.

      To Fall calm, pacifier, a phrase expressed of the weather, implying to fall into a state of rest by a total cessation of the wind.

      To Fall down, in navigation, to sail, or be conducted from any part of a river, towards some other nearer to its mouth or opening.

      FALLING-OFF, abatíe, the movement or direction of the ship’s head to leeward of the point whither it was lately directed, particularly when she sails near the wind, or lies by.

      Cat Fall. See the article Cat.

      Falling-off, is also the angle contained between her nearest approach towards the source of the wind, and her farthest declination from it, when Trying. See that article.

      FASHION-PIECES, estains, the aft-most or hind-most timbers of a ship, which terminate the breadth, and form the shape of the stern. They are united to the stern-post, and to the extremity of the wing-transom by a rabbit, and a number of strong nails, or spikes, driven from without. See their connection with the stern post and transom, in plate X. fig. I. as explained in the article Stern.

      FATHOM, bras, a measure of six feet, used for a variety of purposes at sea; as to regulate the length of the rigging, cables, &c. and to divide the log lines, and sounding-lines.

      To FAY, to fit any two pieces of wood so as to join close together. The plank is said to fay to the timbers, when it bears, or lies, close to all the timbers. Murray’s Ship-building.

      FENDERS, (from fend,) certain pieces of old cable, timber, faggots, or other materials, hung over the side of a ship or vessel, to prevent it from striking or rubbing against a wharf, or key: as also to preserve the smaller vessel from being damaged by the larger ones.

      To FETCH Way, to be shaken or agitated from one side to another. It is usually applied to a mast, bowsprit, &c. when it is not sufficiently wedged, being loose in the partners: it is also said of a cask, box, or such body which moves by the rocking of the ship at sea, as not being well secured and enclosed.

      FETCHING the pump, the act of pouring a can of water into the upper-part of it, to expel the air which is contained between the lower box, or piston, and the lower-end of the pump that rests upon the ship’s floor; and accordingly to make the water, poured into the chamber, communicate with that in the bottom of the pump-well, so as to be thrown out above by striking with the brake, or handle. See Pump.

      FID, clef de ton, a square bar of wood, or iron, with a shoulder at one end, as represented in plate IV. fig. I. It is used to support the weight of the top-mast, when erected at the head of the lower-mast, by passing through a mortise in the lower end of the former, and resting its ends on the tressel-trees, which are sustained by the head of the latter. The fid, therefore, must be withdrawn every time the top-mast is lowered. The top-gallant-mast is retained at the head of the top-mast in the same manner. See the article Mast.

      Fid, (fitta, Ital.) is also a large pin of hard wood, tapering to a point, and used for splicing of cables or large cordage.

      Sea-FIGHT. See the article Engagement.

      To FILL, in navigation, faire servir, to brace the sails in such a manner, as that the wind, entering their cavities from behind, dilates them so as to advance the ship in her course, after the sails had for some time been shivering, or braced aback. See those articles.

      FIRE-ARROW, a steel dart used by privateers and pirates to fire the sails of the enemy in battle: these machines are particularly described in the article Engagement.

      FIRE-SHIP, brulot, an old vessel filled with combustible materials, and fitted with grappling-irons to hook, and set fire to, the enemies ships in battle, &c.

      As there is nothing particular in the construction of this ship, except the apparatus by which the fire is instantly conveyed from one part to another, and from thence to the enemy, it will be sufficient to describe the fire-room, where these combustibles are enclosed, together with the instruments necessary to grapple the ship intended to be destroyed.

      The fire-room is built between-decks, and limited on the after-part by a bulk-head, I, behind the main-mast, from which it extends quite forwards, as represented in fig. 2, plate IV. The train enclosed in this apartment is contained in a variety of wooden troughs, D, G, which intersect each other in different parts of the ship’s length; being supported at proper distances by cross-pieces and stanchions. On each side of the ship are six or seven ports, H, about eighteen inches broad, and fifteen inches high, and having their lids to open downward, contrary to the usual method.

      Against every port is placed an iron chamber ^*, which, at the time of firing the ship, blows out the port-lid, and opens a passage for the flame. Immediately under the main and fore shrouds is fixed a wooden funnel, M; whose lower-end communicates with a fire-barrel ^‖, by which

the flame passing through the funnel is conducted to the shrouds. Between the funnels, which are likewise called fire-trunks, are two scuttles, or small-holes in the upper-deck, serving also to let out the flames. Both funnels must be stopped with plugs, and have sail-cloth, or canvas, nailed close over them, to prevent any accident happening from above to the combustibles laid below.

      The ports, funnels, and scuttles, not only communicate the flames to the out-side and upper-works of the ship, and her rigging, but likewise open a passage for the inward air, confined in the fire-room, which is thereby expanded so as to force impetuously through those out-lets, and prevent the blowing up of the decks, which must of necessity happen, from such a sudden and violent rarefaction of the air as will then be produced.

      On each side of the bulk-head behind is cut a hole L, of sufficient size to admit a trough of the same dimensions as the others. A leading trough, L I, whose foremost-end communicates with another trough within the fire-room, is laid close to this opening, from whence it extends obliquely to a sally-port, I, cut through the ship’s side. The decks and troughs are well covered with melted rosin. At the time of firing either of the leading troughs, the flame is immediately conveyed to the opposite side of the ship, whereby both sides burn together.

      The spaces N, O, behind the fire-room, represent the cabins of the lieutenant and master, one of which is on the starboard, and the other on the larboard side. The captain’s cabin, which is separated from these by a bulk-head, is exhibited also by P.

      Four of the eight fire-barrels are placed under the four fire-trunks; and the other four between them, two on each side the fire-skuttles, where they are securely cleated to the deck. The longest reeds ^* are put into the fore and aft troughs, and tied down: the shortest reeds are laid in the troughs athwart, and tied down also. The bavins ^‖, dipped at one end, are tied fast to the troughs over the reeds and the curtains are nailed up to the beams, in equal quantities, on each side of the fire-room.

      The remainder of the reeds are placed in a position nearly upright, at all the angles of every square in the fire-room, and there tied down. If any reeds are left, they are to be put round the fire-barrels, and other vacant places, and there tied fast.

Instructions to prime.

      Cast off all the covers of the fire-barrels, and hang the quick-match loose over their sides, and place leaders of quick-match from the reeds into the barrels, and from thence into the vent of the chambers, in such a manner as to be certain of their blowing open the ports, and setting fire to the barrels. Two troughs of communication from each door of the fire-room to the sally-ports, must be laid with a strong leader of quick-match, four or five times double: also a cross-piece to go from the sally-port, when the ship is fired, to the communication trough,

laid with leaders of quick-match, that the fire may be communicated to both sides at once.

      What quick-match is left, place so that the fire may be communicated to all parts of the room at once, especially about the ports and fire-barrels, and see that the chambers are well and fresh primed.

      N. B. The port-fires ^† used for firing the ship, burns about twelve minutes. Great care must be taken to have no powder on board when the ship is fired.

      The sheer-hooks represented by fig. 3, plateIV. are fitted so as to fasten on the yard-arms of the fire-ship, where they hook the enemies rigging. The fire-grapplings, fig. 4, are either fixed on the yard-arms, or thrown by hand, having a chain to confine the ships together, or fasten those instruments wherever necessary.

      When the commanding officer of a fleet displays the signal to prepare for action, the fire-ships fix their sheer-hooks, and dispose their grapplings in readiness. The battle being begun, they proceed immediately to prime, and prepare their fire-works. When they are ready for grappling, they inform the admiral thereof by a particular signal.

      To avoid being disabled by the enemy’s cannon during a general engagement, the fire-ships continue sufficiently distant from their line of battle, either to windward or to leeward.

      They cautiously shun the openings, or intervals, of the line, where they would be directly exposed to the enemy’s fire, from which they are covered by lying on the opposite side of their own ships. They are attentively to observe the signals of the admiral, or his seconds, in order to put their designs immediately in execution.

      Although no ship of the line should be previously appointed to protect any fire-ship, except a few of the smallest particularly destined to this service, yet the ship before whom she passes in order to approach the enemy, should escort her thither, and assist her with an armed boat, or whatever succour may be necessary in her situation ^¶.

      The captain of the fire-ship should himself be particularly attentive that the above instructions are punctually executed, and that the yards may be so braced, when he falls along-side of the ship intended to be destroyed, that the sheer-hooks and grapplings fastened to the yardarms, &c. may effectually hook the enemy. He is expected to be the last person who quits the vessel, and being furnished with every ne-

cessary assistance and support, his reputation will greatly depend on the success of his enterprise.

      FISH, a machine employed to hoist or draw up the flukes of the ship’s anchor towards the top of the bow in order to stow it, after having been heaved up by the cable. It is composed of four parts, viz. the pendant, the block, the hook, and the tackle; which, together with their several uses, are described in the article Davit.

      Fish, jumelle, is also a long piece of oak, convex on one side, and concave on the other. It is used to fasten upon the outside of the lower masts, either as an additional security, to strengthen them when it becomes necessary to carry an extraordinary pressure of sail, in pursuit of, or flight from, an enemy, or to reinforce them after they have received some damage in battle, tempestuous weather, &c.

      The fishes are also employed for the same purpose on any yard, which happens to be sprung or fractured. Thus their form, application, and utility are exactly like those of the splinters applied to a broken limb in surgery.

      FISH-GIG, foesne, an instrument used to strike fish at sea, particularly dolphins. It consists of a staff, three or four barbed prongs, and a line fastened to the end, on which the prongs are fixed: to the other end is fitted a piece of lead, which serves to give additional force to the stroke when the weapon flies, and to turn the points upward after the fish is penetrated.

      FITTING-OUT, equiper, the act of providing a ship with a sufficient number of men, to navigate and arm her for attack or defence: also to furnish her with proper masts, sails, yards, ammunition, artillery, cordage, anchors, and other naval furniture; together with sufficient provisions for the ship’s company.

      FLAG, pavillon, (flag, Dutch) a certain banner or standard, by which an admiral is distinguished at sea from the inferior ships of his squadron; also the colours by which one nation is distinguished from another.

      In the British navy flags are either red, white, or blue, and are displayed from the top of the main-mast, fore-mast, or mizen-mast, according to the rank of the admiral.

      The first flag in Great Britain is the royal standard, which is only to be hoisted when the king or queen are aboard the vessel: the second is that of the anchor of hope, which characterizes the lord high admiral, or lords commissioners of the admiralty: and the third is the union flag, in which the crosses of St. George and St. Andrew are blended. This last is appropriated to the admiral of the fleet, who is the first military officer under the lord high admiral.

      When a flag is displayed from the flag-staff on the main-mast, the officer distinguished thereby, is known to be an admiral; when from the fore-mast, a vice-admiral; and when from the mizen-mast, a rear-admiral.

      The next flag after the union is that of the white squadron, at the main-mast, and the last, which characterizes an admiral, is the blue, at the same mast-head.

      For a vice-admiral, the first flag is the red; the second, the white; the third, the blue, at the flag-staff on the fore-mast.

      The same order proceeds with regard to the rear-admirals, whose flags are hoisted on the top of the mizen-mast: the lowest flag in our navy is accordingly the blue on the mizen-mast.

      FLAG-OFFICER, a term synonimous to admiral.

      FLAG-SHIP, the ship on which any flag is displayed.

      FLAG-STAFF, baton, a pole erected at the head of a top-gallant-mast, or top-mast, whereon to hoist and display the flag or pendant.

      FLAKE, echafaud, a sort of scaffold or platform, formed of hurdles and supported by stanchions, and used for drying cod-fish in Newfoundland. These flakes are usually placed near the shores of fishing-harbours.

      FLAT, plain, a level ground lying at a small depth under the surface of the sea, and otherwise called a shoal or shallow.

      To Flat-in, the action of drawing in the aftmost lower-corner, or clue of a sail towards the middle of the ship, to give the sail the greater power of turning the vessel. Thus if the mizen, or after-sails are flatted-in, it is evident that the intention is to carry the stern to leeward, and turn the head nearer to the direction of the wind: and if the head-sails are slatted-in, the intention is accordingly to make the ship fall off, when by design or accident she has come so near the wind as to make the sails shiver. Hence

      Flat-in forward, traverse misaine, is the order to draw in the fore-sheet, jib-sheet, and fore-stay-sail-sheet, towards the middle of the ship. This operation is seldom performed, except in light breezes of wind, when the helm has not sufficient government of the ship.

      FLEET, vaisseaux du roi, (flota, Sax.) a general name given to his majesty’s navy, or to any part thereof destined on a particular enterprise or expedition: also a convoy or company of merchant ships, flotte, conserve, with or without ships of war to defend them.

      The admirals of his majesty’s fleet are classed into three squadrons, viz. the red, the white, and the blue. When any of these officers are invested with the command of a squadron or detachment of men of war, the particular ships are distinguished by the colours of their respective squadron: that is to say, the ships of the red squadron wear an ensign, whose union is displayed on a red field; the ensigns of the white squadron have a white field; and those of the blue squadron, a blue field; the union being common to all three. The ships of war therefore are occasionally annexed to any of the three squadrons, or shifted from one to another.

      Of whatsoever number a fleet of ships of war is composed, it is usually divided into three squadrons; and these, if numerous, are again separated into divisions. The admiral, or principal officer, commands the centre; the vice-admiral, or second in command, superintends the van-guard; and the operations of the rear are directed by the rear-admiral, or the officer next in rank. See the article Division.

      The disposition of a fleet, while proceeding on a voyage, will in some measure depend on particular circumstances; as the difficulty of the naviga-

tion; the necessity of dispatch, according to the urgency or importance of the expedition; or the expectation of an enemy in the passage. The most convenient order is probably to range it into three lines or columns, each of which is parallel to a line close-hauled according to the tack, on which the line of battle is designed to be formed. This arrangement is more used than any, because it contains the advantages of every other form, without their inconveniences. The fleet being thus more inclosed, will more readily observe the signals, and with greater facility form itself into the line of battle; a circumstance which should be kept in view in every order of sailing.

      FLEETING, the act of changing the situation of a tackle, when the blocks are drawn together; or what is called block and block by sailors. The use of fleeting is accordingly to replace the mechanical powers into a state of action; the force by which they operated before being destroyed by the meeting of the blocks or pullies.

      Fleeting therefore is nearly similar to the winding up of a watch or clock. See the article Tackle.

      FLOAT, a raft, or quantity of timber fastened together across, to be wafted along a river with the tide or current.

      FLOATING, (flotter, Fr.) the state of being borne up, or wafted along with the tide on the surface of the water, the theory of which is explained in the article Trim.

      FLOOR, the bottom of a ship; or all that part on each side of the keel, which approaches nearer to an horizontal, than a perpendicular situation, and whereon she rests when aground. Thus it is common to say, a sharp floor, a flat floor, a long floor, &c. Whence

      Floor-timbers, varangues, are those parts of the ship’s timbers which are placed immediately across the keel, and upon which the bottom of the ship is framed: to these the upper parts of the timbers are united, being only a continuation of floor-timbers upwards. See Naval Architecture.

      FLOWING, the position of the sheets, or lower corners of the principal sails, when they are loosened to the wind, so as to receive it into their cavities in a direction more nearly perpendicular than when they are close-hauled, although more obliquely than when the vessel is sailing before the wind.

      A ship is therefore said to have a flowing sheet when the wind crosses the line of her course nearly at right angles: that is to say, a ship steering due north, with the wind at east, or directly on her side, will have a flowing sheet; whereas if the sheets were extended close aft, she would sail two points nearer the wind, viz. N. N. E. See the articles Close-hauled, Large, and Trim.

      FLY of an ensign, battant, the breadth or extent from the staff to the extremity or edge that flutters loose in the wind.

      FLY-BOAT, or FLIGHT, a large flat-bottomed Dutch vessel, whose burthen is generally from four to six hundred tons. It is distinguished by a stern remarkably high, resembling a Gothic turret, and by very broad buttocks below.

      FOOT of a sail, fond de voile, lower edge or bottom.

      Foot-rope, the rope to which the foot of a sail is sewed. See Bolt-Rope.

      Foot-ropes are also the same with horses of the yards. See that article.

      FOOT-WALEING, the whole inside planks or lining of a ship, used to prevent any part of the ballast or cargo from falling between the floor-timbers. See Midship-Frame.

      FORE, the distinguishing character of all that part of a ship’s frame and machinery which lies near the stem.

      Fore and Aft, throughout the ship’s whole length, or from end to end.

      Fore Bowline, the bowline of the fore-sail. See Bowline.

      Fore-castle, gaillard d’avant, a short deck placed in the fore part of the ship, above the upper deck. It is usually terminated, both before and behind, by a breast-work in vessels of war; the foremost end forming the top of the beak-head, and the hind part reaching to the after part of the fore-chains.

      Fore-cat-harpings, a complication of ropes used to brace in the upper part of the fore-shrouds. See Cat-harpings.

      Fore-foot, brion, a piece of timber which terminates the keel at the fore end. It is connected by a scarf to the extremity of the keel, of which it makes a part: and the other end of it, which is incurvated upwards into a sort of knee or crotch, is attached to the lower end of the stem, of which it also makes a part, being also called the gripe.

      As the lower arm of the fore-foot lies on the same level with the keel, so the upper one coincides with the middle line of the stem: its breadth and thickness therefore correspond to the dimensions of those pieces, and the heel of the cut-water is scarfed to its upper end.

      The form of this piece, and its disposition and connexion with the adjacent pieces, appears by the letter i, in plate I. Pieces of the Hull.

      Fore-Hooks, the same with breast-hooks, which see.

      Foreland, a cape or promontory projecting into the sea; as the North or South Forelands.

      Fore-Lock, clavette, a little flat-pointed wedge of iron, used to drive through a hole in the end of a bolt, to retain it firmly in its place.

      N B. By referring to the articles Top-mast and Top-gallant-mast, we mean to comprehend all the apparatus thereto belonging, as their yards, sails, &c.

      Fore-reaching upon, the act of advancing before, or gaining ground of, some other ship or ships in company.

      FORGING OVER, the act of forcing a ship violently over a shoal, by the effort of a great quantity of sail.

      FORMING the Line. See the article Line.

      FORWARD, avant, towards the fore part of the ship. See Afore.

      FOTHERING, a peculiar method of endeavouring to stop a leak in the bottom of a ship while she is afloat, either under sail or at anchor. It is usually performed in the following manner: a basket is filled with ashes, cinders, and chopped rope-yarns, bonette lardeé, and loosely covered with a piece of canvas; to this is fastened a long pole, by which it is plunged repeatedly in the water, as close as possible to the place where the leak is conjectured to lie. The oakum, or chopped rope-yarns, being thus gradually shaken through the twigs, or over the top of the basket, are frequently sucked into the hole along with the water, so that the leak becomes immediately choaked, and the future entrance of the water is thereby prevented.

      FOUL, empecheé, as a sea-term, is generally used in opposition to clear, and implies intangled, embarrassed, or contrary, in the following senses:

      A ship ran foul of us in the river, i. e. entangled herself amongst our rigging.

      Foul, when expressed of a ship’s bottom, denotes that it is very dirty; as being covered with grass, sea-weeds, shells, or other filth which gathers to it during the course of a long voyage. When understood of the ground or bottom of a road, bay, sea-coast, or harbour, mal sain, it signifies rocky, or abounding with shallows, or otherwise dangerous.

      When spoken of the hawse, it means that the cables are turned round each other, by the winding or turning about of the ship while she rides at anchor. See Elbow and Hawse.

      Foul, when applied to the wind, is used to express that it is unfavourable, or contrary to the ship’s course, as opposed to large or fair.

      To FOUNDER, sancir, to sink at sea, as being rendered, by the violence and continuation of a storm, and the excess of the leaks, unable to keep the ship afloat above the water.

      FOX, a sort of strand, formed by twisting several rope-yarns together, and used as a seizing, or to weave a mat or paunch, &c.

      FRAME. See Timber.

      FRAPPING, the act of crossing and drawing together the several parts of a tackle, or other complication of ropes, which had already been straitened to their utmost extent: in this sense it exactly resembles the operation of bracing up a drum, &c. The frapping always increases the tension, and of course adds to the security acquired by the purchase. Hence the cat-harpings are no other than frappings to the shrouds.

      Frapping a ship, ceintrer, the act of passing three, four, or five turns of a cable round the hull, or frame of a ship, in the middle, to support her in a great storm, when it is apprehended that she is not strong enough to resist

the violent efforts of the sea. This expedient however is rarely put in practice, unless in very old ships, which their owners are willing to venture to sea as long as possible, by ensuring them deeply.

      FREEING, affranchir, the act of pumping, or otherwise throwing out the water which has leaked into a ship’s bottom at sea, &c.

      FREEZING, a sort of ornamental painting on the upper part of a ship’s quarter, stern, or bow. It consists generally of armour, instruments of war, marine emblems, &c.

      FREIGHT, or fraight of a ship (affretement) the hire, or a part thereof, usually paid for the carriage and conveyance of goods; or the sum agreed, upon between the owner and the merchant for the hire and use of a vessel.

      Freight also implies the lading or cargo which she has aboard.

      FRESH, when applied to the wind, generally signifies strong, but not violent or dangerous: hence when the gale increases, it is said to freshen.

      To FRESHEN the hawse, refraichir, to relieve that part of the cable which for some time has been exposed to the friction in one of the hawse-holes, produced by the rocking and pitching of a ship as she rides at anchor in a high sea.

      When a ship remains in such a situation, it is always necessary to wrap some old canvas, mat, leather, or such like material, round that part of the cable which rubs against the stem, &c. The matter used for this purpose is called service: but as the violent agitation of the ship, produced by the tempest, or sea, as she rides in an open road, must communicate a great friction to the cable, the service will consequently be soon worn through: it is necessary therefore to have it frequently renewed by a fresh application of the like materials, behind the former, for the preservation of the cable, on which every thing depends; and this renewal of service is called freshening the hawse, a circumstance which cannot be too vigilantly observed.

      FRESHES, souberme, imply the impetuosity of an ebb-tide, increased by heavy rains, and flowing out into the sea, which it often discolours to a considerable distance from the shore; inasmuch as the line, which divides the two colours, may be perceived distinctly for a great length along the coast.

      FRIGATE, (fregate, Fr.) in the navy, a light nimble ship built for the purposes of sailing swiftly. These vessels mount from twenty to thirty-eight guns, and are esteemed excellent cruizers.

      Frigate-built, fregaté, implies the disposition of the decks of such merchant ships as have a descent of four or five steps from the quarter-deck and fore-castle into the waist, in contra-distinction to those whose decks are on a continued line for the whole length of the ship, which are called galley-built. See the article Flush.

      Formerly the name of frigate was only known in the Mediterranean, and applied to a kind of long vessel, navigated in that sea with sails and oars. The English were the first who appeared on the ocean with those ships, and equipped them for war as well as commerce.

      FULL AND BY, pres & plein, the situation of a ship with regard to the wind, when she is close-hauled, and sailing in such a manner as neither to

steer too nigh the direction of the wind, nor to deviate to leeward; both of which movements are unfavourable to her course, as in the former her sails will shiver, and render the effort of the wind precarious and ineffectual; and in the latter she will advance in a direction widely distant from her real course. Hence, keep her full! defie du vent! is the order from the pilot or other officer to the helmsman, not to incline too much to windward, and thereby shake the sails so as to retard the course.

      FURLING, (ferler, Fr.) the operation of wrapping or rolling a sail close up to the yard, stay, or mast to which it belongs, and winding a gasket or cord about it to fasten it thereto. And hence

      FURLING-LINE denotes a cord employed in this office: those which are used for the larger sails are generally flat, and are known by the name of gaskets.

      FUTTOCKS, the middle division of a ship’s timbers; or those parts which are situated between the floor and the top-timbers. See this fully explained in the article Timber.

      As the epithet hooked is frequently applied in common language to any thing bent or incurvated, and particularly to several crooked timbers in a ship, as the breast-hooks, fore-hooks, after-hooks, &c. this term is evidently derived from the lowest part or foot of the timber, and from the shape of the piece. Hence

      Futtock-Shrouds, or rather Foot-hook Shrouds. See the article Shrouds.

G.

GAFF, a sort of boom or pole, frequently used in small ships, to extend the upper edge of the mizen; and always employed for the same purpose on those sails whose foremost edges are joined to the mast by hoops or lacings, and which are usually extended by a boom below. Such are the main-sails of all sloops, brigs, and schooners.

      The foremost, or inner extremity of the gaff, is furnished with two cheeks forming a semi-circle, which incloses the after-part of the mast so as to confine the gaff close to its respective mast whilst the sail is hoisting or lowering. It is further secured in this situation by a rope passing from one of the cheeks to the other on the fore side of the mast; and to prevent the friction of this rope upon the mast, by hoisting or lowering, several little wooden balls, called trucks, are hung upon it, in the same manner as the holy beads are hung upon a catholic’s rosary.

      GAGE. See Weather-Gage.

      To GAIN the wind, in navigation, gagner au vent, to arrive on the weather-side, or to windward of, some other vessel in sight, when both are plying to windward, or sailing as near the wind as possible.

      GALE of wind, a phrase used by sailors to express a storm or tempest. It is more particularly termed a hard gale, or strong gale.

      GALEON, a name formerly given to ships of war, furnished with three or four batteries of cannon. It is now retained only by the Spaniards, and applied to the largest size of their merchant ships, employed on West-Indian voyages, and usually furnished with four decks. They likewise bestow the same name on those vessels, whether great or small, which proceed annually to La Vera Cruz. The Portugueze also have several ships which they send to India and the Brazils, nearly resembling the galeons, and by them called caragues.

      GALLED, raqué, the state of a mast, yard, cable, or other rope, when it is deprived of the surface, and chafed by friction. To preserve those articles from being damaged by this effect, it is therefore usual to cover them with skins, mats, canvas, or such materials, in the places where they are the most exposed to it by the rocking of the vessel. See the article Service.

      GALLERY, a balcony projecting from the stern or quarter of a ship of war, or large merchantman. In the former, the stern-gallery is usually decorated with a ballustrade, extending from one side of the ship to the other; the fore-part is limited by a partition called the skreen-bulk head, in which are framed the cabin windows; and the roof of it is formed by a sort of

vault, termed the cove, which is frequently ornamented with sculpture. See Stern.

      The quarter gallery of a ship of 74 guns is represented at large, in the plate referred to from the article Quarter.

      GALLEY, galere, a kind of low flat-built vessel, furnished with one deck, and navigated with sails and oars, particularly in the Mediterranean.

      The largest sort of these vessels, galeasse, is employed only by the Venetians. They are commonly 162 feet long above, and 133 feet by the keel; 32 feet wide, with 23 feet length of stern-post. They are furnished with three masts, and thirty-two banks of oars; every bank containing two oars, and every oar being managed by six or seven slaves, who are usually chained thereto. In the fore-part they have three little batteries of cannon, of which the lowest is of two 36 pounders, the second of two 24 pounders, and the uppermost of two 2 pounders: three 18 pounders are also planted on each quarter. The compliment of men for one of these galleys is generally 1000 or 1200. They are esteemed extremely convenient for bombarding or making a descent upon an enemy’s coast, as drawing but little water; and having by their oars frequently the advantage of a ship of war, in light winds or calms, by cannonading the latter near the surface of the water; by scouring her whole length with their shot, and at the same time keeping on her quarter or bow, so as to be out of the direction of her cannon.

      The gallies next in size to these, which are also called half-gallies, are from 120 to 130 feet long, 18 feet broad, and 9 or 10 feet deep. They have two masts, which may be struck at pleasure, and are furnished with two large lateen sails, and five pieces of cannon. They have commonly 25 banks of oars, as described above. A size still less than these are called quarter-gallies, carrying from twelve to sixteen banks of oars. There are very few gallies now besides those in the Mediterranean, which are found by experience to be of little utility, except in fine weather; a circumstance which renders their service extremely precarious. They generally keep close under the shore, but sometimes venture out to sea to perform a summer cruise. See the articles Quarter and Vessel.

      GAMMONING, lieure, a rope used to bind the inner quarter of the bowsprit close down to the ship’s stem, in order to enable it the better to support the stays of the fore-mast, and carry sail in the fore part of the vessel. Seven or eight turns of this rope, fig. 7. plate IV. are passed over the bowsprit A, and through a large hole in the stem or knee of the head Y alternately: after all the turns are drawn as firm as possible, the opposite ones are braced together under the bowsprit by a frapping, as exhibited in the same figure.

      GANG, a select number of a ship’s crew appointed on any particular service, and commanded by an officer suitable to the occasion.

      GANG-BOARD, planche, a board or plank with several cleats or steps nailed upon it for the convenience of walking into, or out of, a boat upon the shore, where the water is not deep enough to float the boat close to the landing-place.

      GANGWAY, passe-avant, a narrow platform, or range of planks, laid horizontally along the upper part of a ship’s side, from the quarter-deck to the forecastle, for the convenience of walking more expeditiously, fore and aft, than by descending into the waist. This platform is therefore peculiar to ships which are deep-waisted. It is fenced on the outside by several small iron pillars, and a rope extended from one to the other; and sometimes by a netting, to prevent any one from falling off into the sea when the ship is in motion. This is frequently called the gang-board in merchant vessels.

      Gangway, echelle, is also that part of a ship’s side, both within and without, by which the passengers enter and depart. It is for this purpose provided with a sufficient number of steps, or cleats, nailed upon the ship’s side, nearly as low as the surface of the water; and sometimes furnished with a railed accommodation-ladder, whose lower end projects from the ship’s side, being secured in this position by iron braces, so as to render the ascent and descent extremely convenient.

      Gangway, accoursie, is likewise used to signify a passage left in the hold, when a ship is laden, in order to arrive at any particular place therein, occasionally; as to examine the situation of the provisions or cargo; to discover and stop a leak; or to bring out any article required for service; &c. Finally, a gangway implies a thoroughfare, or narrow passage of any kind.

      GARLAND, a sort of net, whose opening is extended by a wooden hoop of sufficient size to admit a bowl or platter within it. It is accordingly used by the sailors as a locker or cupboard to contain their provisions, being hung up to the deck within the birth, where they commonly mess between-decks.

      Shot-Garland, epitie, a piece of timber nailed horizontally along the ship’s side from one gun-port to another, and used to contain the round-shot ready for charging the great guns in battle. For this purpose it is furnished with several semi-globular cavities, corresponding to the size of the cannon-balls which it is employed to contain.

      GARNET, garant, a sort of tackle fixed to the main-stay of a merchant ship, and used to hoist in and out the goods of which the cargo is composed.

      Garnet is also a small tackle fastened to the clues or lower corners of the main-sail or fore-sail, for the purpose of trussing up those sails, as occasion requires; and hence it is called Clue-Garnet, which see.

      GARBOARD-STREAK, gabord, in ship-building, the first range or streak of planks laid upon a ship’s bottom next to the keel, throughout the whole length of the floor. The edge of this plank is let into a groove or channel in the side of the keel, which is called the rabbit of the garboard-streak.

      GASKET, garcet, a sort of platted cord fastened to the sail-yards of a ship, and used to furl or tie up the sail firmly to the yard. This is performed by wrapping the gasket round the yard and sail six or seven times, the turns being at a competent distance from each other.

      GAUNTLOPE, pronounced gauntlet, a race which a criminal is sentenced to run in a vessel of war, as a punishment for felony, or some other heinous offence.

      It is executed in the following manner: the whole ship’s crew is disposed in two rows, standing face to face on both sides of the deck, so as to form a lane, whereby to go forward on one side, and return aft on the other; each person being furnished with a small twisted cord, called a knittle, having two or three knots upon it. The delinquent is then stripped naked above the waist, and ordered to pass forward between the two rows of men, and aft on the other side, a certain number of times, rarely exceeding three; during which every person gives him a stripe as he runs along. In his passage through this painful ordeal he is sometimes tripped up, and very severely handled while incapable of proceeding. This punishment, which is called running the gauntlet, courir la bouline, is seldom inflicted except for such crimes as will naturally excite a general antipathy amongst the seamen; as on some occasions the culprit would pass without receiving a single blow, particularly in cases of mutiny or sedition, to the punishment of which, our common sailors seem to have a constitutional aversion.

      GEARS. See Jears.

      GIMBALS, balanciers, the brass rings by which a sea-compass is suspended in its box that usually stands in the binacle. See the article Binacle.

      GIMBLETING, a term particularly applied to the anchor, to denote the action of turning it round by the stock, so that the motion of the stock appears similar to that of the handle of a gimblet, when it is employed to turn the wire.

      GIRT, the situation of a ship which is moored so strait by her cables, extending from the hause to two distant anchors, as to be prevented from swinging or turning about, according to any change of the wind or tide, to the current of which her head would otherwise be directed.

      The cables are extended in this manner, by a strong application of mechanical powers within the ship; so that as she veers, or endeavours to swing about, her side bears upon one of the cables, which catches on her heel, and interrupts her in the act of traversing. In this position she must ride with her broadside or stern to the wind or current, till one or both of the cables are slackened so as to sink under the keel; after which the ship will readily yield to the effort of the wind or current, and turn her head thither. See the article Riding.

      GIRT-LINE, cartahu, a rope passing through a single block, on the head of the lower masts, to hoist up the rigging thereof; as also the persons employed to place the rigging and cross-trees upon the mast-heads. The girt-line is therefore the first rope employed to rig a ship, and by means of this all the rest are drawn up and fixed; after which it is removed till the ship is to be unrigged.

      GONDOLA, a sort of barge, curiously ornamented, and navigated on the canals of Venice; also a passage-boat of six or eight oars, in other parts of the coast of Italy.

      GOOGINGS, femelles, certain clamps of iron bolted on the stern-post of a ship, whereon to hang the rudder, and keep it steddy; for which purpose there is a hole in each of them, to receive a correspondent spindle bolted on the back of the rudder, which turns thereby as upon hinges. There are

generally four, five, or six googings on a ship’s stern-post and rudder, according to her size, and upon these the rudder is supported, and traverses from side to side as upon an axis. See Helm.

      GOOSE-NECK, a sort of iron hook fitted on the inner end of a boom, and introduced into a clamp of iron, or eye-bolt, which encircles the mast, or is fitted to some other place in the ship, so that it may be unhooked at pleasure. See Boom.

      GOOSE-WINGS of a sail, the clues or lower corners of a ship’s main-sail, or fore-sail, when the middle part is furled or tied up to the yard.

      The goose-wings are only used in a great storm to scud before the wind, when the sail at large, or even diminished by a reef, would be too great a pressure on the ship, in that situation.

      GORING, langue, that part of the skirts of a sail, where it gradually widens from the upper part or head, towards the bottom: the goring-cloths are therefore those, which are cut obliquely, and added to the breadth. See Sail.

      GRAPPLING, (grapin, Fr.) a sort of small anchor, fitted with four or five flukes or claws, plate IV. fig. 5. and commonly used to ride a boat or other small vessel.

      Fire-Grappling, grapin d’abordage, an instrument nearly resembling the former, but differing in the construction of its flukes, which are furnished with strong barbs on their points, fig. 4. plate IV. These machines are usually fixed on the yard-arms of a ship, in order to grapple any adversary whom she intends to board. They are however more particularly useful in fire-ships, for the purposes described in that article.

      GRATINGS, caillebotis, a sort of open covers for the hatches, formed by several small laths or battens of wood, which cross each other at right angles, leaving a square interval between. They are formed to admit the air and light from above into the lower apartments of the ship, particularly when the turbulence of the sea or weather renders it necessary to shut the ports between decks; and also to let the smoke escape from the lower decks in the time of battle.

      GRAVING, oeuvres de marée, the act of cleaning a ship’s bottom when she is laid aground during the recess of the tide. See the article Breaming, where this operation is particularly explained.

      GRIPES, haubans de chaloupe, a machine formed by an assemblage of ropes, hooks, and dead-eyes, and used to secure the boats upon the deck of a ship at sea, and prevent them from being shaken by the labouring of the vessel. The hooks, which are fastened at their ends, are fixed in ring-bolts in the deck on each side of the boat; whence, passing over her middle and extremities, they are extended by means of the dead-eyes, so as to render the boats as firm and secure as possible.

      Griping, ardent, the inclination of a ship to run to windward of her course, particularly when she sails with the wind on her beam or quarter. This effect is partly occasioned by the shock of the waves that strike the ship perpetually on the weather-quarter, and force the stern to leeward; but

chiefly by the arrangement of the sails, which disposes the ship continually to edge to windward, while in this situation of sailing.

      GROMMET, daillot, a sort of small wreath, formed of a strand of rope, and used to fasten the upper edge of a stay-sail to its respective stay, in different places. By means of the grommets, the sail is accordingly hoisted or lowered, i. e. drawn up or down upon its stay, in the same manner as a curtain is extended or drawn along upon its rod, by the assistance of rings. See also the article Hank.

      GROUNDING, the act of laying a ship ashore, in order to bream or repair her. It is also applied to running aground accidentally when under sail, or driving in a tempest.

      GROUND-TACKLE, amarrages, a general name given to all sorts of ropes and furniture which belong to the anchors, or which are employed in mooring, or otherwise securing a ship in a road or harbour; as cables, hausers, tow-lines, warps, and buoy-ropes.

      GROWING, implies the direction of the cable from the ship towards the anchors; as, the cable grows on the starboard-bow, i. e. stretches out forwards on the starboard, or right side.

      GUARD-BOAT, a boat appointed to row the rounds amongst the ships of war which are laid up in any harbour, &c. to observe that their officers keep a good look-out, calling to the guard-boat as she passes, and not suffering her crew to come aboard, without having previously communicated: the watch-word of the night.

      GUARD-IRONS, certain curved or arched bars of iron placed over the ornamental figures, on a ship’s head or quarter, to defend them from the impression of some other ship when they lie close to, or rub against each other.

      GUARD-SHIP, a vessel of war appointed to superintend the marine affairs in a harbour or river, and to see that the ships, which are not commissioned, have their proper watch kept duly, by sending her guard-boats around them every night: she is also to receive seamen who are impressed in the time of war.

      GULF, golfe, (golfo, Ital.) a broad and capacious bay, comprehended between two promontories, and sometimes taking the name of a sea, when it is very extensive, but particularly when it only communicates with the sea by means of a streight: such are the Euxine, or Black Sea, otherwise called the gulf of Constantinople; the Adriatic Sea, called also the gulf of Venice; the gulf of Sidra near Barbary, and the gulf of Lions near France: all these gulfs are in the Mediterranean: there are besides the gulf of Mexico, the gulf of St. Lawrence, and the gulf of Calliphornia, which are in North America. There are also the gulf of Persia, otherwise called the Red Sea, between Persia and Arabia; the gulf of Bengal in India, and the gulfs of Cochinchina and Kamtschatca, near the countries of the same name.

      GUNNEL, or GUN-WALE, plat-bord, the upper edge of a ship’s side.

      GUNNER of a ship of war, an officer appointed to take charge of the artillery and ammunition aboard; to observe that the former are always kept

in order, and properly fitted with tackles and other furniture, and to teach the sailors the exercise of the cannon. See Exercise.

      GUN-ROOM, an apartment on the after end of the lower, or gun-deck, of a ship of war; generally destined for the use of the gunner in large ships, but in small ones, it is used by the lieutenants as a dining-room, &c.

      GUST, dragon de vent, a sudden and violent squall of wind, bursting from the hills upon the sea, so as to endanger the shipping near the shore. These are peculiar to some coasts, as those of South Barbary and Guinea.

      GUTTER-LEDGE, traversier d’ecoutille, a cross-bar laid along the middle of a large hatchway in some vessels, to support the covers, and enable them the better to sustain any weighty body which may be moved or laid thereon.

      GUY, a rope used to steddy any weighty body whilst it is hoisting or lowering, particularly when the ship is shaken by a tempestuous sea.

      Guy is likewise a large slack rope, extending from the head of the main-mast to the head of the fore-mast, and having two or three large blocks fastened to the middle of it. This is chiefly employed to sustain the tackle used to hoist in and out the cargo of a merchant ship, and is accordingly removed from the mast-heads as soon as the vessel is laden or delivered.

      GYBING, the act of shifting any boom-sail from one side of the mast to the other.

      In order to understand this operation more clearly, it is necessary to remark, that by a boom-sail is meant any sail whose bottom is extended by a boom, the fore-end of which is hooked to its respective mast, so as to swing occasionally on either side of the vessel, describing an arch, of which the mast will be the center. As the wind or the course changes, it also becomes frequently necessary to change the position of the boom, together with its sail, which is accordingly shifted to the other side of the vessel as a door turns upon its hinges. The boom is pushed out by the effort of the wind upon the sail, and is restrained in a proper situation by a strong tackle communicating with the vessel’s stern, and called the sheet. It is also confined on the fore-part by another tackle, called the guy. See the preceding article.

H.

HAGS TEETH, or Hakes Teeth, those parts of a matting, pointing, &c. which are interwoven with the rest, in an erroneous and irregular manner, so as to appear aukward in the general uniformity of the work. See Pointing, &c.
